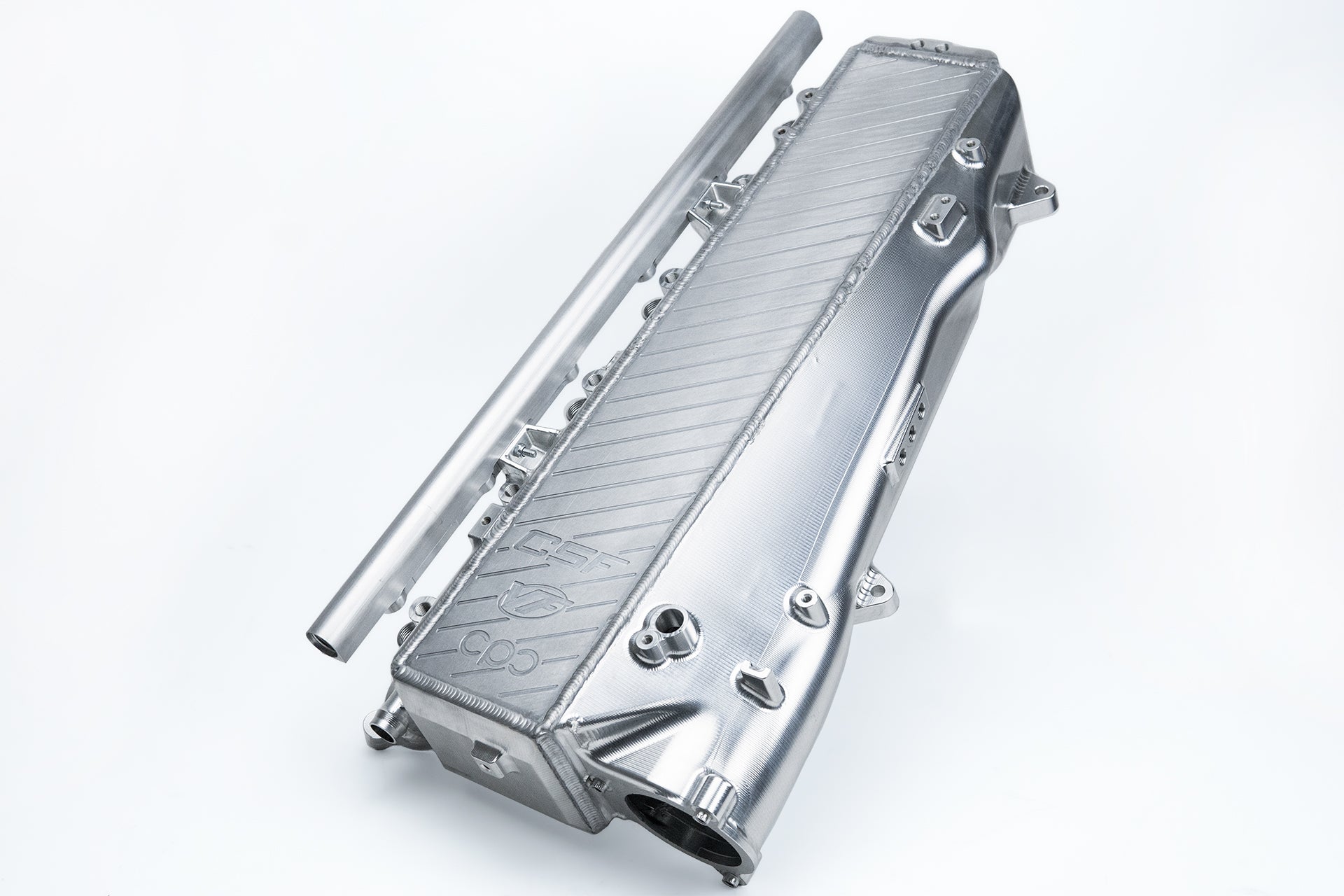

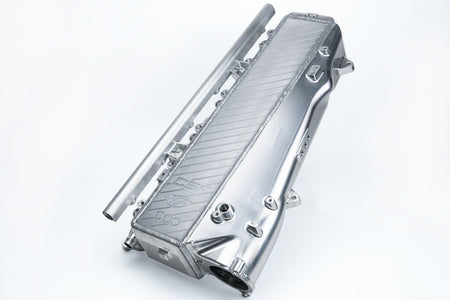

A90 Supra / BMW B58 Charge-Air Cooler Manifold - Raw Billet

£3,720.00
£3,720.00
Shipping calculated at checkout.

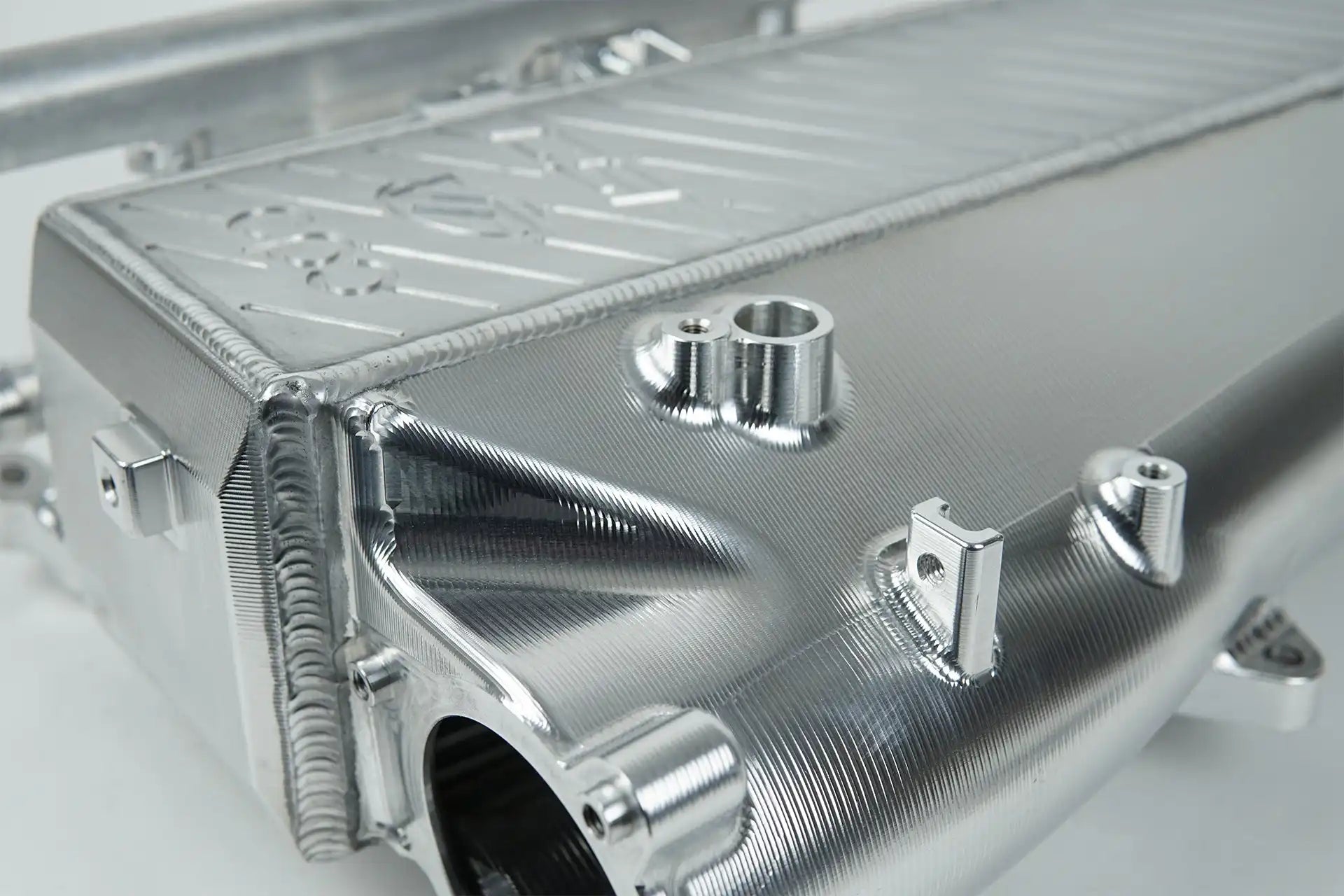

The CSF #8200 comes in a raw billet aluminum finish. Also available in Thermal Black Heat Dispersion (CSF #8200B) & in custom colors/finishes (CSF #8200C).

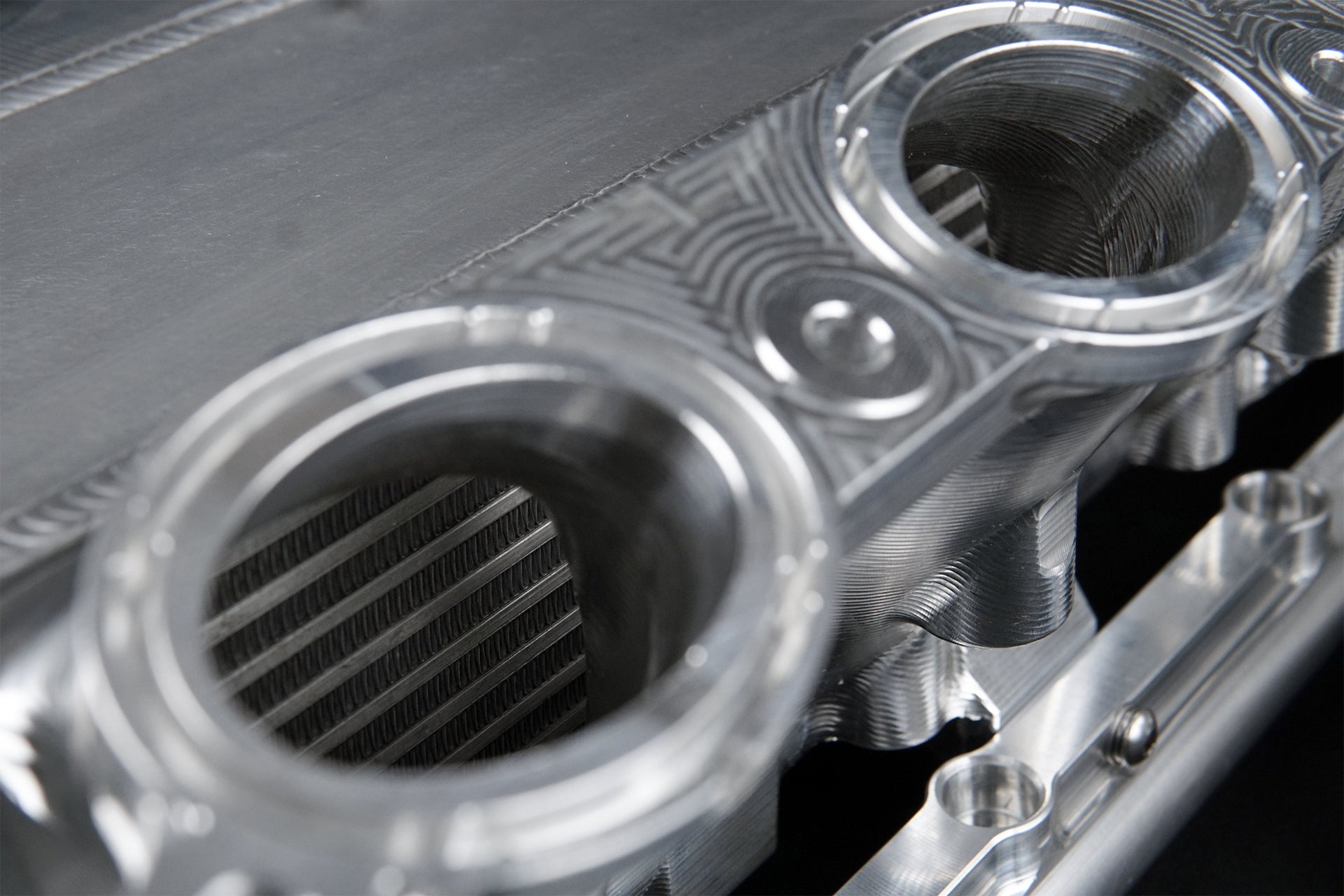

  • Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
  • Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
  • Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
  • Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
  • Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
  • Plug-and-Play design, Requiring No Modifications to Install

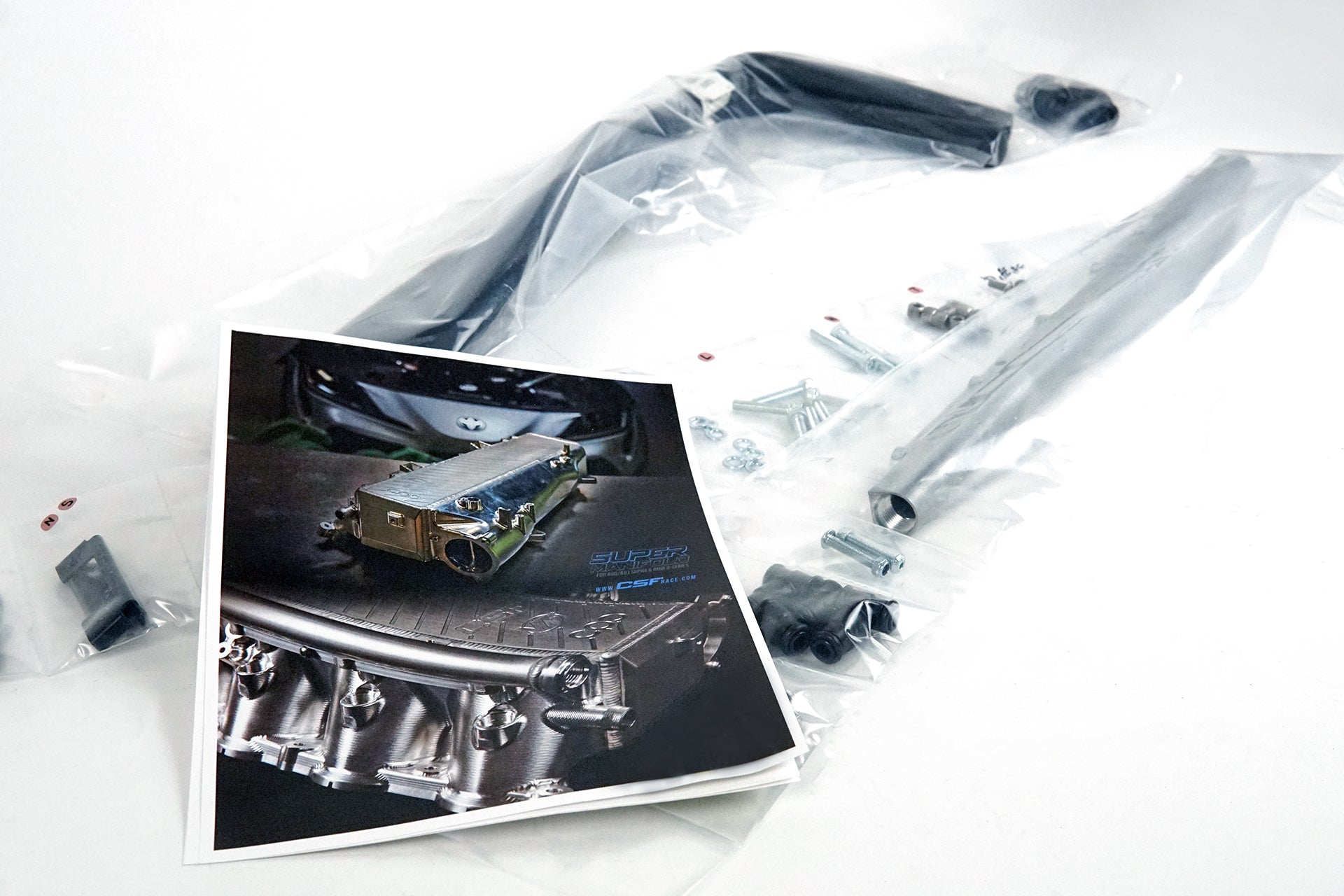

  • Includes Hardware and Installation Kit with Picture Diagrams Containing 28 Different Parts for Easy Installation
  • Can be Used With OEM or Aftermarket Engine Covers (with OEM Connections)
  • Comes Finished in Raw Billet Aluminum (available in custom finishes) - Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
  • CSF pressure tests each #8200 / #8200C manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process.
  • The CSF manifold is not designed to operate above 60 PSI. Users who chose to operate their vehicle with the CSF manifold over 60 PSI does so at their own risk. Operation at these pressure levels will void the CSF Limited Warranty.
  • Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
  • Significantly Lower Pressure Drop Across the Core Compared to OEM
  • Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
  • Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
  • Easy Access to Spin-Off Oil Filter for Quick Oil Changes - No Need to Uninstall Manifold Every Oil Change
  • Counter Balanced Design for Optimized Airflow

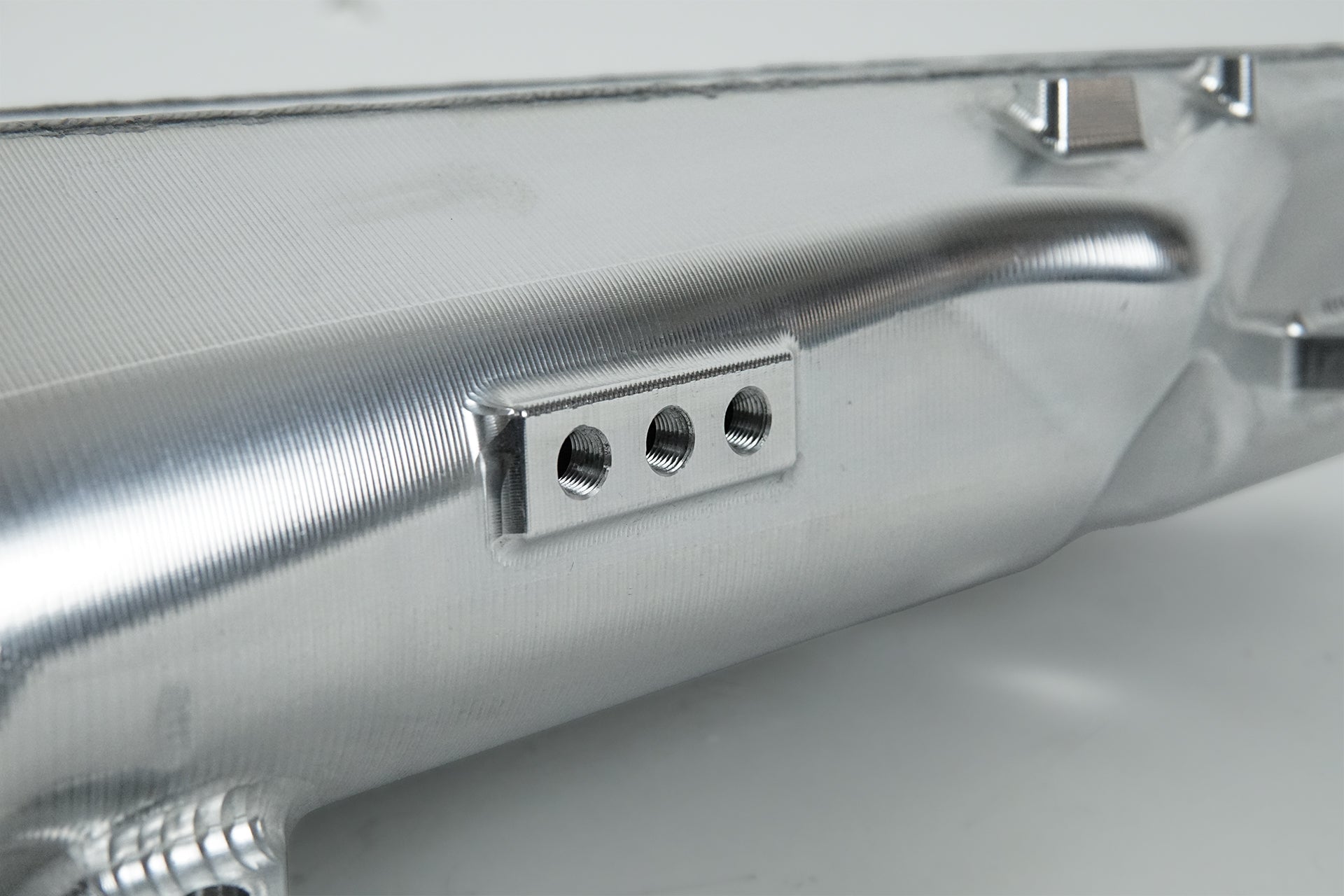

  • Integrated Sensor Pad with Three 1/8" NPT Ports to Measure Additional Parameters

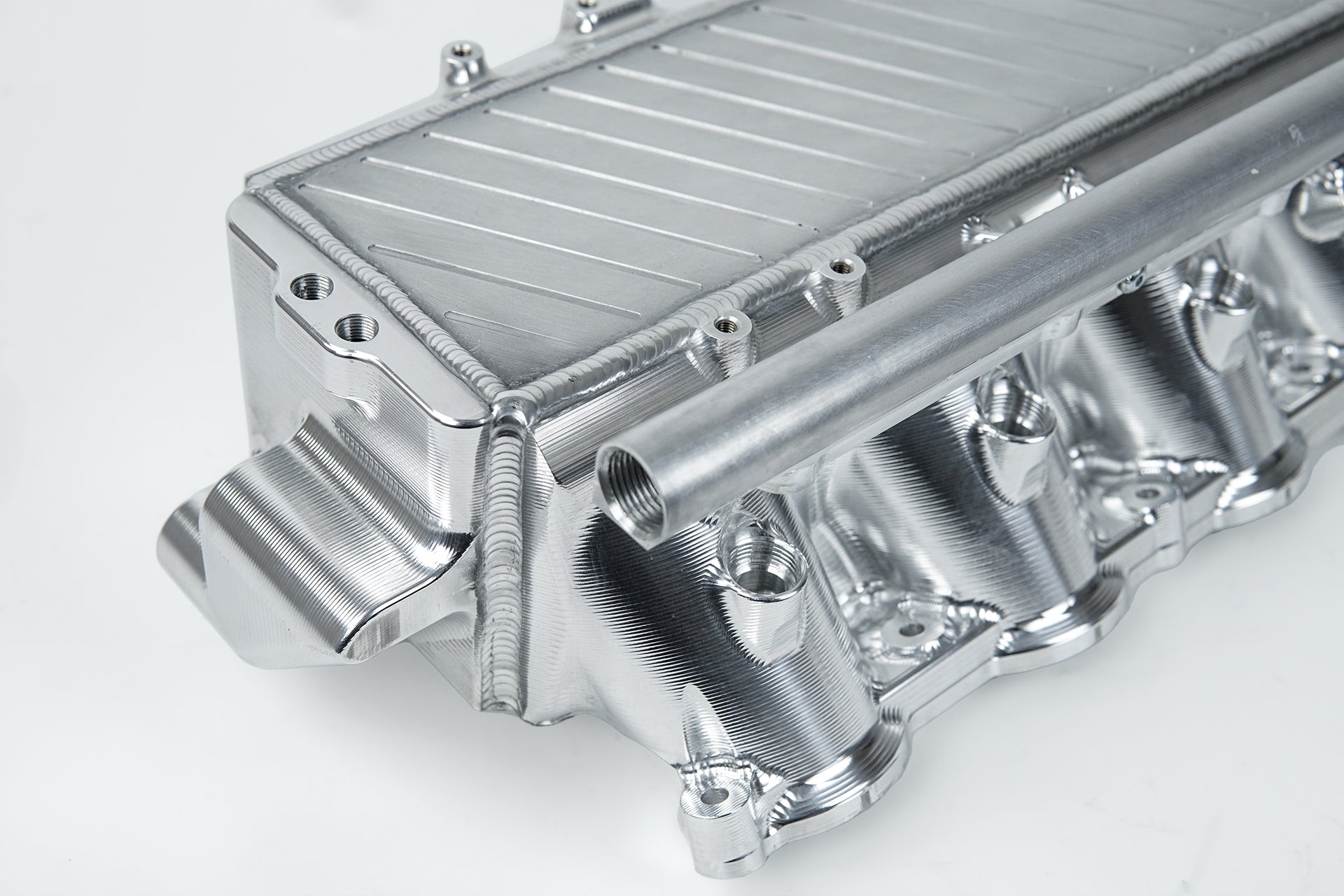

  • Included Optional Fuel Rail for Top Feed Port Injection
  • GTIN: 00710353082003
  • Brand Name: CSF Cooling - Racing & High Performance Division
  • ADD-ON: 8154
  • Core Material: Aluminum
  • Country of Origin: Austrailia
  • Emissions : Racing or Pre-Emissions Use Only
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 28 x 10 x 15 inches
  • Weight: 22 lb
