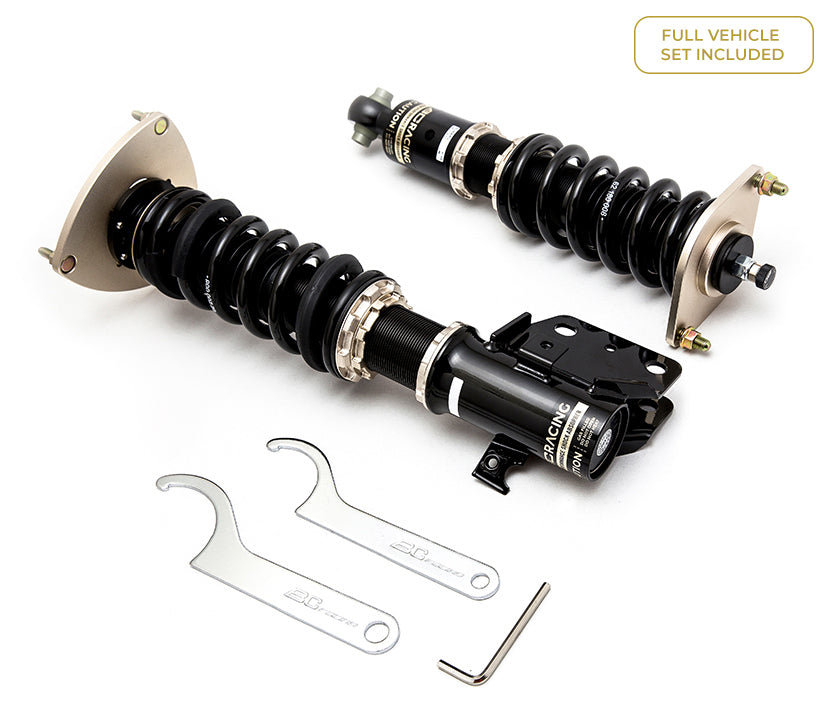

BC Racing BR Series Coilovers – Lexus GS300/350/450h (GRS191, UZS190) 2006-2012

BC Racing SKU: 0008854
Regular price Price: £949.06
Regular price £999.00 Sale Sale price Price: £949.06
Configuration
Spring Rate F/R (kg/mm)
Accepted payment methods
  • American Express
  • Apple Pay
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Do you have questions about this product?

📞 Ask an Expert!

The BC Racing BR Series offers the most affordable entry into coilover suspension without sacrificing performance, comfort, build quality, or handling. This is achieved by extensively testing each vehicle then refining the coilover characteristics until the most well-balanced and affordable aftermarket suspension is reached. The BR series uses a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity, reducing peak temperature and significantly improving damper performance.

Key features:

  • Pillowball top mounts
  • Bearing mounted upper spring platform
  • Camber adjustable top mounts (depending on model)
  • Ride height adjustment separate to spring preload
  • 30 way adjustable damping
  • Monotube damper design
  • Tapered bottom mount locking collar
  • Dust boot to protect damper seals
  • 1 year manufacturer warranty

Configuration options:

  • RS — Aluminium front top mounts with rubber centres and aluminium rear top mounts with rubber centres (or no rear top mounts).
  • RA — Aluminium camber-adjustable pillowball top mounts on the front (where available) and aluminium rear top mounts with rubber centres (or no rear top mounts).
  • RH — Aluminium camber-adjustable pillowball top mounts on the front (where available) and pillowball only on the rear (or no top mounts).

Fitment: Lexus GS GS-300/350/450H GRS191/UZS190, 2006-2012.

Custom spring rates available on request — contact us for any front/rear rate not listed.

BC Racing part numbers

Spring rate APEX SKU BC part SKU Series Type BC product name
10/7kg.mm 0008854 R-21-BR-RS BR RS Lexus GS-300 350 GRS191 UZS190 (06-12) 10/7kg.mm
— — R-21-BR-RS BR RS —
10/8kg.mm 0071027 R-21-BR-RS BR RS LEXUS GS300/350 GRS191/UZS190 (06-12) 10/8kg.mm
16/16kg.mm 0073257 R-21-BR-RS BR RS LEXUS GS300/350 GRS191/UZS190 (06-12) EXTRA LOW 16/16kg.mm
14/10kg.mm 0080420 R-21-BR-RS BR RS LEXUS GS300/350 GRS191/UZS190 (06-12) 14/10kg.mm

Vehicle Fitment

Make Model Chassis Models Years
Lexus GS S190 All models 2006–2012
