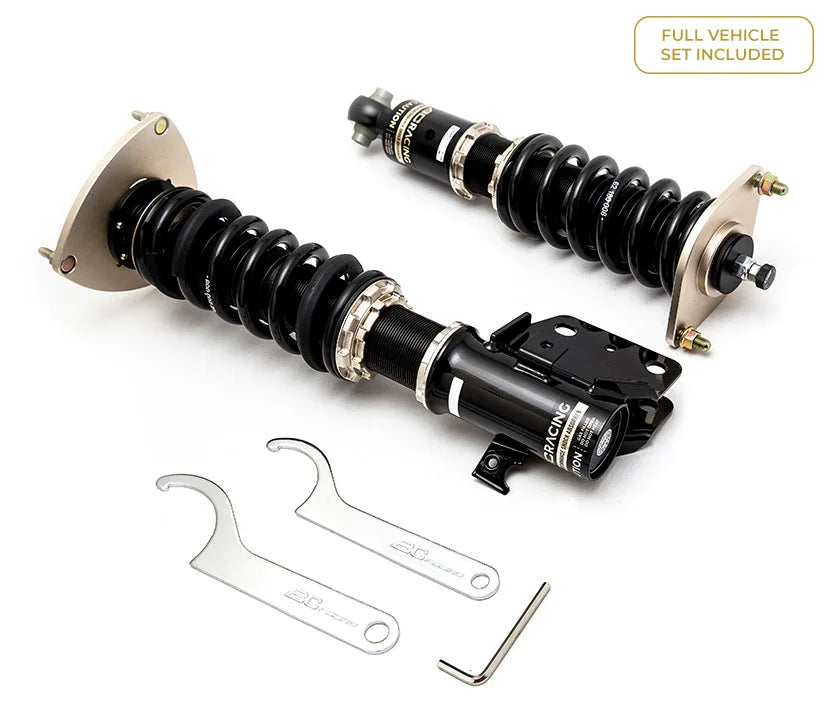

BC Racing BR Series Coilovers – Volkswagen Golf VII (MK7, A7) 54.5mm Strut 2013-2019
Do you have questions about this product?
📞 Ask an Expert!The BC Racing BR Series offers the most affordable entry into coilover suspension without sacrificing performance, comfort, build quality, or handling. This is achieved by extensively testing each vehicle then refining the coilover characteristics until the most well-balanced and affordable aftermarket suspension is reached. The BR series uses a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity, reducing peak temperature and significantly improving damper performance.
Key features:
- Pillowball top mounts
- Bearing mounted upper spring platform
- Camber adjustable top mounts (depending on model)
- Ride height adjustment separate to spring preload
- 30 way adjustable damping
- Monotube damper design
- Tapered bottom mount locking collar
- Dust boot to protect damper seals
- 1 year manufacturer warranty
Configuration options:
- RS — Aluminium front top mounts with rubber centres and aluminium rear top mounts with rubber centres (or no rear top mounts).
- RA — Aluminium camber-adjustable pillowball top mounts on the front (where available) and aluminium rear top mounts with rubber centres (or no rear top mounts).
- RH — Aluminium camber-adjustable pillowball top mounts on the front (where available) and pillowball only on the rear (or no top mounts).
Fitment: Volkswagen Golf MK7 FWD (54.5MM) (Inc R & GTI), 2013-2019.
Custom spring rates available on request — contact us for any front/rear rate not listed.
BC Racing part numbers
| Spring rate | APEX SKU | BC part SKU | Series | Type | BC product name |
|---|---|---|---|---|---|
| 8/7kg.mm | 0009775 | H-24-BR-RA | BR | RA | VW Golf 7 A3 8V Oct Leon TT (Strut 54.5) (13+) 8/7kg.mm |
| 6/6kg.mm | 0027114 | H-24-BR-RA | BR | RA | VW Golf 7 A3 8V Oct Leon TT (Strut 54.5) (13+) 6/6kg.mm |
| 7/6kg.mm | 0022108 | H-24-BR-RA | BR | RA | VW Golf 7 A3 8V Oct Leon TT (Strut 54.5) (13+) Extra Low 7/6kg.mm |
| — | — | H-24-BR-RA | BR | RA | — |
| 7/6kg.mm | 0033783 | H-24-BR-RS | BR | RS | VW Golf 7 A3 8V Oct Leon TT (Strut 54.5) (13+) 7/6kg.mm |
| — | — | H-24-BR-RA | BR | RA | — |
| 10/9kg.mm | 0034995 | H-24-BR-RA | BR | RA | VW Golf 7 A3 8V Oct Leon TT (Strut 54.5) (13+) 10/9kg.mm |
| 10/10kg.mm | 0071169 | H-24-BR-RA | BR | RA | VW Golf 7 A3 8V Oct Leon TT (Strut 54.5) (13+) Extra Low 10/10kg.mm |
| 6/6kg.mm | 0026032 | H-24-BR-RS | BR | RS | VW Golf 7 A3 8V Oct Leon TT (Strut 54.5) (13+) 6/6kg.mm |
| 8/10kg.mm | 0060532 | H-24-BR-RA | BR | RA | VW Golf 7 A3 8V Oct Leon TT (Strut 54.5) (13+) 8/10kg.mm |
| 6/7kg.mm | 0080758 | H-24-BR-RS | BR | RS | VW GOLF VII (Strut 54.5) MK7/A7 (13-19) 6/7kg.mm |
Vehicle Fitment
| Make | Model | Chassis | Models | Years |
|---|---|---|---|---|
| Volkswagen | Golf | MK7 | All models | 2013–2019 |
