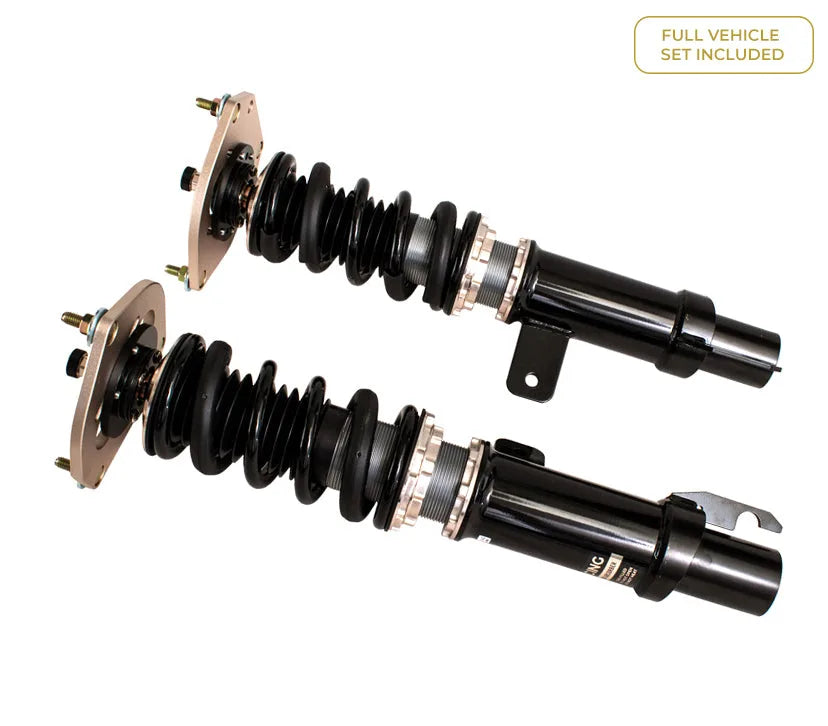

BC Racing DS Series Coilovers – BMW 3 Series (E46) True Rear Coilover 1998-2006
Do you have questions about this product?
📞 Ask an Expert!BC Racing's DS Coilover system is built with digressive valving offering the same great benefits of the BR model and is considered a perfect choice for those looking for track-biased coilovers. The digressive piston design gives a non-linear damping curve which allows higher low-speed damping to control body roll through cornering, acceleration and braking, whilst providing reduced high-speed damping to allow the wheel to travel over kerbs, retaining car balance.
Key features:
- Digressive piston and damping curve
- Satin chrome finished shock body
- 30 clicks of simultaneous rebound and compression adjustment
- Ride height adjustment separate to spring preload
- Camber adjustable top mounts (depending on model)
- Pillowball top mounts
- Bearing mounted upper spring platform
- Dust boot to protect the damper seal
- Tapered bottom mount locking collar
- Custom spring rates available
- All spare parts available with low lead times
- 1 year manufacturer warranty
Configuration options:
- DA — Aluminium camber adjustable pillowball top mounts on the front (where available) and aluminium rear top mounts with rubber centres or no rear top mounts.
- DN — Supplied without front top mounts and with aluminium rear top mounts with rubber centre or no rear top mounts.
Fitment: BMW 3 Series E46 RWD (Exc M3) (Integrated Rear), 1998-2006.
Custom spring rates available on request.
Vehicle Fitment
| Make | Model | Chassis | Models | Years |
|---|---|---|---|---|
| BMW | 3 Series | E46 | All models | 1998–2006 |
BC Racing part numbers
| Spring rate | APEX SKU | BC part SKU | Series | Type | BC product name |
|---|---|---|---|---|---|
| 6/5KG.MM | 0070912 | I-31-DS-DH | DS | — | BMW 3 SERIES SEDAN E46 (98-06) 6/5KG.MM |
| 10/12kg.mm | 0009897 | I-31-DS-DH | DS | — | BMW 3 SEDAN/COUPE (True Rear) E46 10/12kg.mm |
| 10/6KG.MM | 0029134 | I-31-DS-DH | DS | — | BMW 3 SERIES SEDAN E46 (98-06) 10/6KG.MM |
| 8/5kg.mm | 0029837 | I-31-DS-DH | DS | — | BMW 3 SEDAN/COUPE (Rear Integrated) E46 (98-06) 8/5kg.mm |
| 12/6kg.mm | 0035527 | I-31-DS-DH | DS | — | BMW 3 SEDAN/COUPE (Rear Integrated) E46 (98-06) 12/6kg.mm |
| 8/7kg.mm | 0080369 | I-31-DS-DH | DS | — | BMW 3 SEDAN/COUPE (Rear Integrated) E46 (98-06) 8/7kg.mm |
| 8/10kg.mm | 0090118 | I-31-DS-DH | DS | — | BMW 3 SEDAN/COUPE (Rear Integrated) E46 (98-06) 8/10kg.mm |
| 12/5kg.mm | 0090430 | I-31-DS-DH | DS | — | BMW 3 SEDAN/COUPE (Rear Integrated) E46 (98-06) 12/5kg.mm |
| 10/8kg.mm | 0090498 | I-31-DS-DH | DS | — | BMW 3 SEDAN/COUPE (Rear Integrated) E46 (98-06) 10/8kg.mm |
