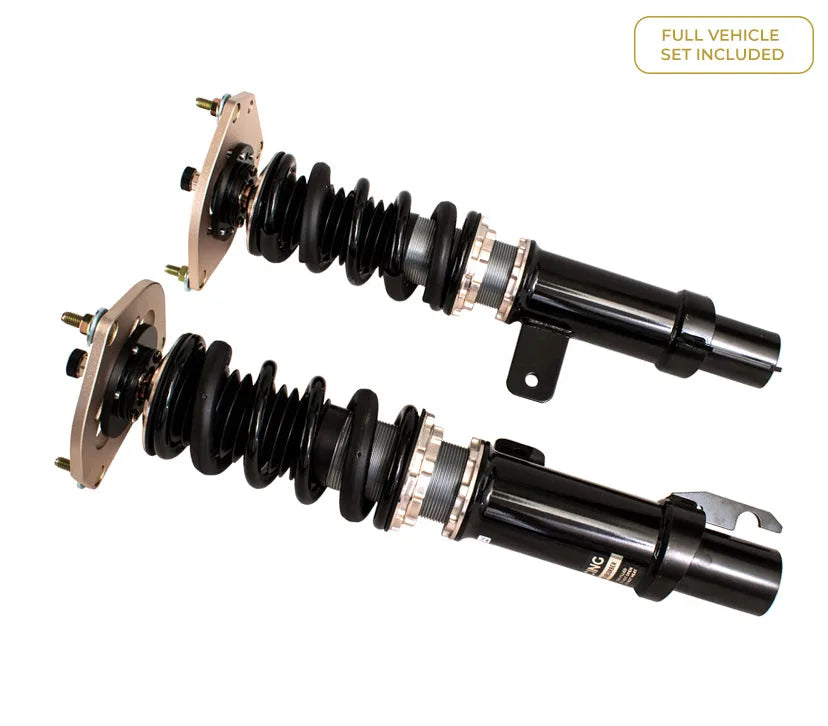

BC Racing DS Series Coilovers – Honda Civic (EG6, EH, EJ1, MC2) Rear Fork 1992-1995
Do you have questions about this product?
📞 Ask an Expert!BC Racing's DS Coilover system is built with digressive valving offering the same great benefits of the BR model and is considered a perfect choice for those looking for track-biased coilovers. The digressive piston design gives a non-linear damping curve which allows higher low-speed damping to control body roll through cornering, acceleration and braking, whilst providing reduced high-speed damping to allow the wheel to travel over kerbs, retaining car balance.
Key features:
- Digressive piston and damping curve
- Satin chrome finished shock body
- 30 clicks of simultaneous rebound and compression adjustment
- Ride height adjustment separate to spring preload
- Camber adjustable top mounts (depending on model)
- Pillowball top mounts
- Bearing mounted upper spring platform
- Dust boot to protect the damper seal
- Tapered bottom mount locking collar
- Custom spring rates available
- All spare parts available with low lead times
- 1 year manufacturer warranty
Configuration options:
- DA — Aluminium camber adjustable pillowball top mounts on the front (where available) and aluminium rear top mounts with rubber centres or no rear top mounts.
- DN — Supplied without front top mounts and with aluminium rear top mounts with rubber centre or no rear top mounts.
Fitment: Honda Civic EG6/EH/EJ1 (Rear Fork) (& DEL SOL), 1992-1995.
Custom spring rates available on request.
BC Racing part numbers
| Spring rate | APEX SKU | BC part SKU | Series | Type | BC product name |
|---|---|---|---|---|---|
| 12/8KG.MM | 0060211 | A-02-DS-DS | DS | — | HONDA CIVIC EG6/EH A-02-DS-DS 12/8KG.MM |
| 16/10kg.mm | 0034723 | A-02-DS-DH | DS | — | Honda Civic EG6/EH (Rear Fork) (92-95) 50mm 16/10kg.mm |
| 12/6KG.MM | 0025602 | A-02-DS-DS | DS | — | HONDA CIVIC EG6/EH A-02-DS-DS 12/6KG.MM |
| 9/4KG.MM | 0070909 | A-02-DS-DS | DS | — | HONDA CIVIC EG6/EH A-02-DS-DS 9/4KG.MM |
| 10/8KG.MM | 0026986 | A-02-DS-DS | DS | — | HONDA CIVIC EG6/EH A-02-DS-DS 10/8KG.MM |
| 18/8kg.mm | 0028429 | A-02-DS-DH | DS | — | Honda Civic EG6/EH (Rear Fork) (92-95) 50mm 18/8kg.mm |
| 9/7kg.mm | 0009964 | A-02-DS-DS | DS | — | Honda Civic(rear fork) EG6/EH (92-95) 9/7kg.mm |
| 8/6kg.mm | 0009977 | A-02-DS-DS | DS | — | Honda Civic(rear fork) EG6/EH (92-95) 8/6kg.mm |
| 14/10kg.mm | 0090086 | A-02-DS-DS | DS | — | Honda Civic(rear fork) EG6/EH (92-95) 14/10kg.mm |
| 18/12kg.mm | 0090183 | A-02-DS-DS | DS | — | Honda Civic(rear fork) EG6/EH (92-95) 18/12kg.mm |
| 22/14kg.mm | 0073753 | A-02-DS-DH | DS | — | Honda Civic EG6/EH (Rear Fork) (92-95) 50mm 22/14kg.mm |
| 10/7kg.mm | 0035594 | A-02-DS-DS | DS | — | Honda Civic(rear fork) EG6/EH (92-95) EXLOW 10/7kg.mm |
Vehicle Fitment
| Make | Model | Chassis | Models | Years |
|---|---|---|---|---|
| Honda | Civic | EG | All models | 1992–1995 |
