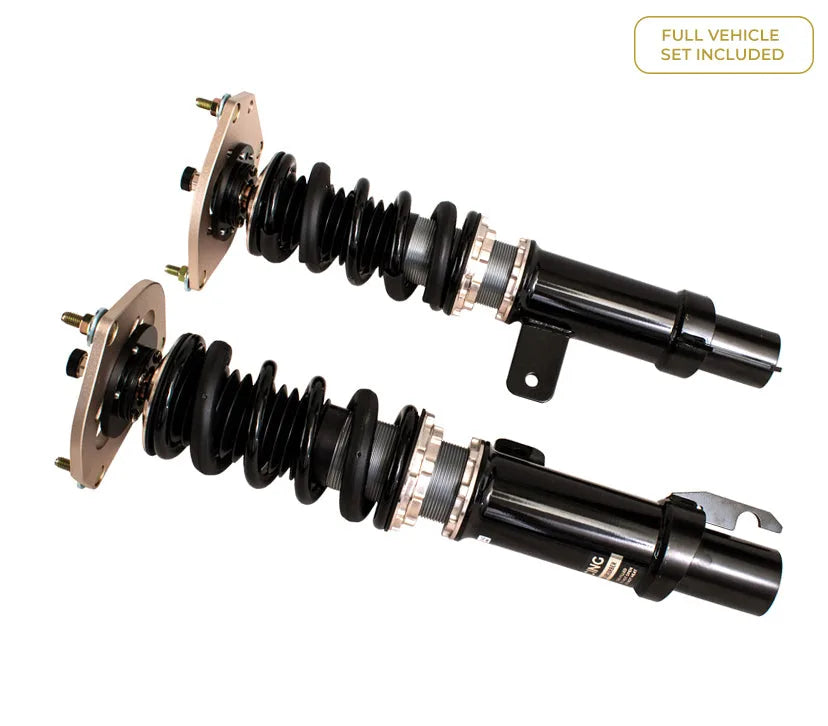

BC Racing DS Series Coilovers – Honda S2000 (AP1, AP2) 2000-2009
Do you have questions about this product?
📞 Ask an Expert!BC Racing's DS Coilover system is built with digressive valving offering the same great benefits of the BR model and is considered a perfect choice for those looking for track-biased coilovers. The digressive piston design gives a non-linear damping curve which allows higher low-speed damping to control body roll through cornering, acceleration and braking, whilst providing reduced high-speed damping to allow the wheel to travel over kerbs, retaining car balance.
Key features:
- Digressive piston and damping curve
- Satin chrome finished shock body
- 30 clicks of simultaneous rebound and compression adjustment
- Ride height adjustment separate to spring preload
- Camber adjustable top mounts (depending on model)
- Pillowball top mounts
- Bearing mounted upper spring platform
- Dust boot to protect the damper seal
- Tapered bottom mount locking collar
- Custom spring rates available
- All spare parts available with low lead times
- 1 year manufacturer warranty
Configuration options:
- DA — Aluminium camber adjustable pillowball top mounts on the front (where available) and aluminium rear top mounts with rubber centres or no rear top mounts.
- DN — Supplied without front top mounts and with aluminium rear top mounts with rubber centre or no rear top mounts.
Fitment: Honda S2000 AP1/AP2, 2000-2009.
Custom spring rates available on request.
BC Racing part numbers
| Spring rate | APEX SKU | BC part SKU | Series | Type | BC product name |
|---|---|---|---|---|---|
| 10/10kg.mm | 0090315 | A-09-DS-DS | DS | — | Honda S2000 AP1/AP2 (00-09) 10/10kg.mm |
| 8/6KG.MM | 0034826 | A-09-DS-DH | DS | — | HONDA S2000 AP1/AP2 (00-09) DH 8/6KG.MM |
| 12/9kg.mm | 0035350 | A-09-DS-DS | DS | — | Honda S2000 AP1/AP2 (00-09) 12/9kg.mm |
| 12/10kg.mm | 0090200 | A-09-DS-DH | DS | — | Honda S2000 AP1/AP2 (00-09) 12/10kg.mm |
| 12/12kg.mm | 0080956 | A-09-DS-DS | DS | — | Honda S2000 AP1/AP2 (00-09) 12/12kg.mm |
Vehicle Fitment
| Make | Model | Chassis | Models | Years |
|---|---|---|---|---|
| Honda | S2000 | AP | All models | 2000–2009 |
