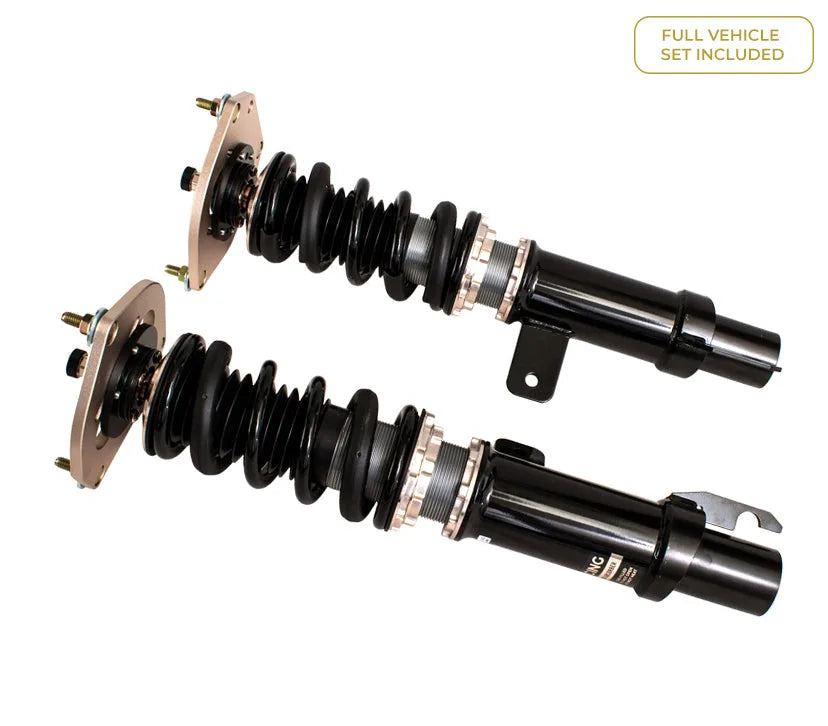

BC Racing DS Series Coilovers – Nissan Silvia 240SX (A31, S13) 1989-1994
Do you have questions about this product?
📞 Ask an Expert!BC Racing's DS Coilover system is built with digressive valving offering the same great benefits of the BR model and is considered a perfect choice for those looking for track-biased coilovers. The digressive piston design gives a non-linear damping curve which allows higher low-speed damping to control body roll through cornering, acceleration and braking, whilst providing reduced high-speed damping to allow the wheel to travel over kerbs, retaining car balance.
Key features:
- Digressive piston and damping curve
- Satin chrome finished shock body
- 30 clicks of simultaneous rebound and compression adjustment
- Ride height adjustment separate to spring preload
- Camber adjustable top mounts (depending on model)
- Pillowball top mounts
- Bearing mounted upper spring platform
- Dust boot to protect the damper seal
- Tapered bottom mount locking collar
- Custom spring rates available
- All spare parts available with low lead times
- 1 year manufacturer warranty
Configuration options:
- DA — Aluminium camber adjustable pillowball top mounts on the front (where available) and aluminium rear top mounts with rubber centres or no rear top mounts.
- DN — Supplied without front top mounts and with aluminium rear top mounts with rubber centre or no rear top mounts.
Fitment: Nissan Silvia S13 RWD, 1989-1994.
Custom spring rates available on request.
BC Racing part numbers
| Spring rate | APEX SKU | BC part SKU | Series | Type | BC product name |
|---|---|---|---|---|---|
| — | — | D-12-DS-DA | DS | DA | — |
| — | — | D-12-DS-DA | DS | DA | — |
| 10/8KG.MM | 0034340 | D-12-DS-DA | DS | — | NISSAN SILVIA 240SX A31 S13 (89-94) 10/8KG.MM |
| — | — | D-12-DS-DA | DS | DA | — |
| 14/10KG.MM | 0025416 | D-12-DS-DA | DS | — | NISSAN SILVIA 240SX A31 S13 (89-94) 14/10KG.MM |
| 6/5KG.MM | 0071366 | D-12-DS-DA | DS | — | NISSAN SILVIA 240SX A31 S13 (89-94) 6/5KG.MM |
| 12/5kg.mm | 0080625 | D-12-DS-DA | DS | — | Nissan Silvia 240SX A31/S13 (89-94) 12/5kg.mm |
| — | — | D-12-DS-DA | DS | DA | — |
| 12/8kg.mm | 0029197 | D-12-DS-DA | DS | — | Nissan Silvia 240SX A31/S13 (89-94) 12/8kg.mm |
| 11/5kg.mm | 0035521 | D-12-DS-DA | DS | — | Nissan Silvia 240SX A31/S13 (89-94) EXLOW 11/5kg.mm |
| 10/6kg.mm | 0035547 | D-12-DS-DA | DS | — | Nissan Silvia 240SX A31/S13 (89-94) EXLOW 10/6kg.mm |
Vehicle Fitment
| Make | Model | Chassis | Models | Years |
|---|---|---|---|---|
| Nissan | Silvia | S13 | All models | 1989–1994 |
| Nissan | 240SX | S13 | All models | 1989–1994 |
| Nissan | Cefiro | A31 | All models | 1989–1994 |
