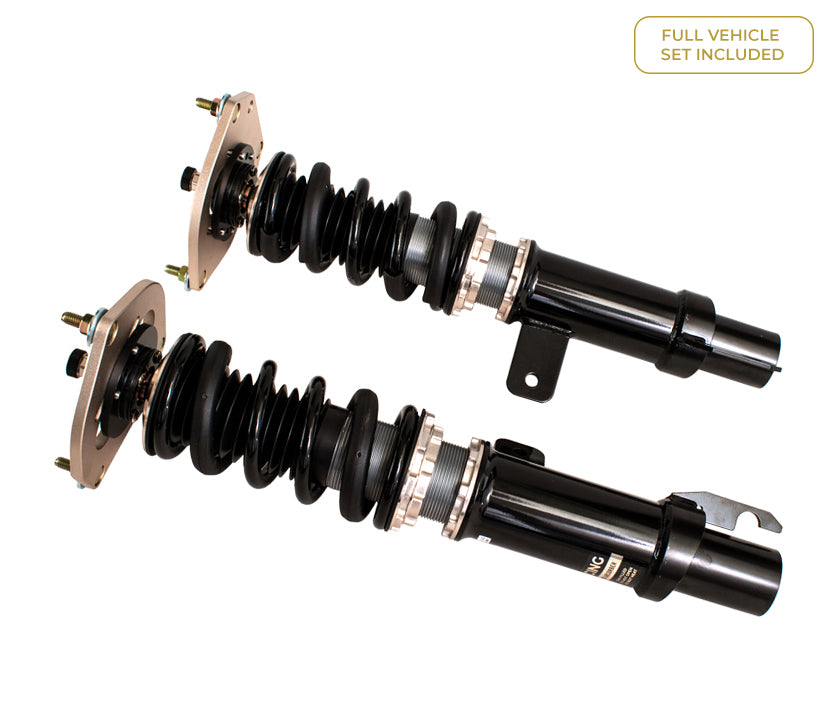

BC Racing DS Series Coilovers – Volkswagen Golf IV/Jetta IV (MK4, A4, PQ34) 2WD 1999-2005 / New Beetle (MK4, A4) 1998-2011 / Bora (MK4, A4) 2WD 1999-2006 (excl. Cabriolet 1999-2002)
BC Racing DS Series Coilovers – Volkswagen Golf IV/Jetta IV (MK4, A4, PQ34) 2WD 1999-2005 / New Beetle (MK4, A4) 1998-2011 / Bora (MK4, A4) 2WD 1999-2006 (excl. Cabriolet 1999-2002)
Regular price
Price:
£1,081.09
Regular price
£1,138.00
Sale
Sale price
Price:
£1,081.09
Accepted payment methods
Do you have questions about this product?
📞 Ask an Expert!BC Racing's DS Coilover system is built with digressive valving offering the same great benefits of the BR model and is considered a perfect choice for those looking for track-biased coilovers. The digressive piston design gives a non-linear damping curve which allows higher low-speed damping to control body roll through cornering, acceleration and braking, whilst providing reduced high-speed damping to allow the wheel to travel over kerbs, retaining car balance.
Key features:
- Digressive piston and damping curve
- Satin chrome finished shock body
- 30 clicks of simultaneous rebound and compression adjustment
- Ride height adjustment separate to spring preload
- Camber adjustable top mounts (depending on model)
- Pillowball top mounts
- Bearing mounted upper spring platform
- Dust boot to protect the damper seal
- Tapered bottom mount locking collar
- Custom spring rates available
- All spare parts available with low lead times
- 1 year manufacturer warranty
Configuration options:
- DA — Aluminium camber adjustable pillowball top mounts on the front (where available) and aluminium rear top mounts with rubber centres or no rear top mounts.
- DN — Supplied without front top mounts and with aluminium rear top mounts with rubber centre or no rear top mounts.
Fitment: Volkswagen Golf MK4 FWD (Inc Jetta), 1999-2005.
Custom spring rates available on request.
BC Racing part numbers
| Spring rate | APEX SKU | BC part SKU | Series | Type | BC product name |
|---|---|---|---|---|---|
| — | — | H-02-DS-DN | DS | DN | — |
| 10/10KG.MM | 0008745 | H-02-DS-DN | DS | — | VW GOLF/JETTA A3 LEON OCT TT MK4 2WD (99-05) 10/10KG.MM |
| 5/3KG.MM | 0060503 | H-02-DS-DN | DS | — | VW GOLF/JETTA A3 LEON OCT TT MK4 2WD (99-05) 5/3KG.MM |
| 7/8kg.mm | 0080152 | H-02-DS-DN | DS | — | VW Golf IV/JETTA IV/BEETLE FWD (TORISON BEAM) MK4/A4 (99-05) 7/8kg.mm |
| 7/6KG.MM | 0080264 | H-02-DS-DN | DS | — | VW GOLF/JETTA A3 LEON OCT TT MK4 2WD (99-05) 7/6KG.MM |
| 8/7kg.mm | 0080303 | H-02-DS-DN | DS | — | VW GOLF/JETTA A3 LEON OCT TT MK4 2WD (99-05) 8/7kg.mm |
| 5/5kg.mm | 0009980 | H-02-DS-DN | DS | — | VW Golf IV/JETTA IV/BEETLE FWD (TORISON BEAM) MK4/A4 (99-05) 5/5kg.mm |
| 9/8kg.mm | 0080623 | H-02-DS-DN | DS | — | VW Golf IV/JETTA IV/BEETLE FWD (TORISON BEAM) MK4/A4 (99-05) 9/8kg.mm |
| 10/8kg.mm | 0029224 | H-02-DS-DN | DS | — | VW Golf IV/JETTA IV/BEETLE FWD (TORISON BEAM) MK4/A4 (99-05) 10/8kg.mm |
| 9/9kg.mm | 0090492 | H-02-DS-DA | DS | — | VW Golf IV (TORISON BEAM) MK4/A4 (99-05) W/ S-03 FTM 9/9kg.mm |
| 8/6kg.mm | 0081310 | H-02-DS-DN | DS | — | VW Golf IV/JETTA IV/BEETLE FWD MK4/A4 (99-05) 8/6kg.mm |
Vehicle Fitment
| Make | Model | Chassis | Models | Years |
|---|---|---|---|---|
| Volkswagen | Beetle | 9C | All models | 1998–2011 |
| Volkswagen | Bora | 1J | All models | 1999–2006 |
| Volkswagen | Golf | MK4 | All models | 1999–2005 |
| Volkswagen | Jetta | MK4 | All models | 1999–2005 |
