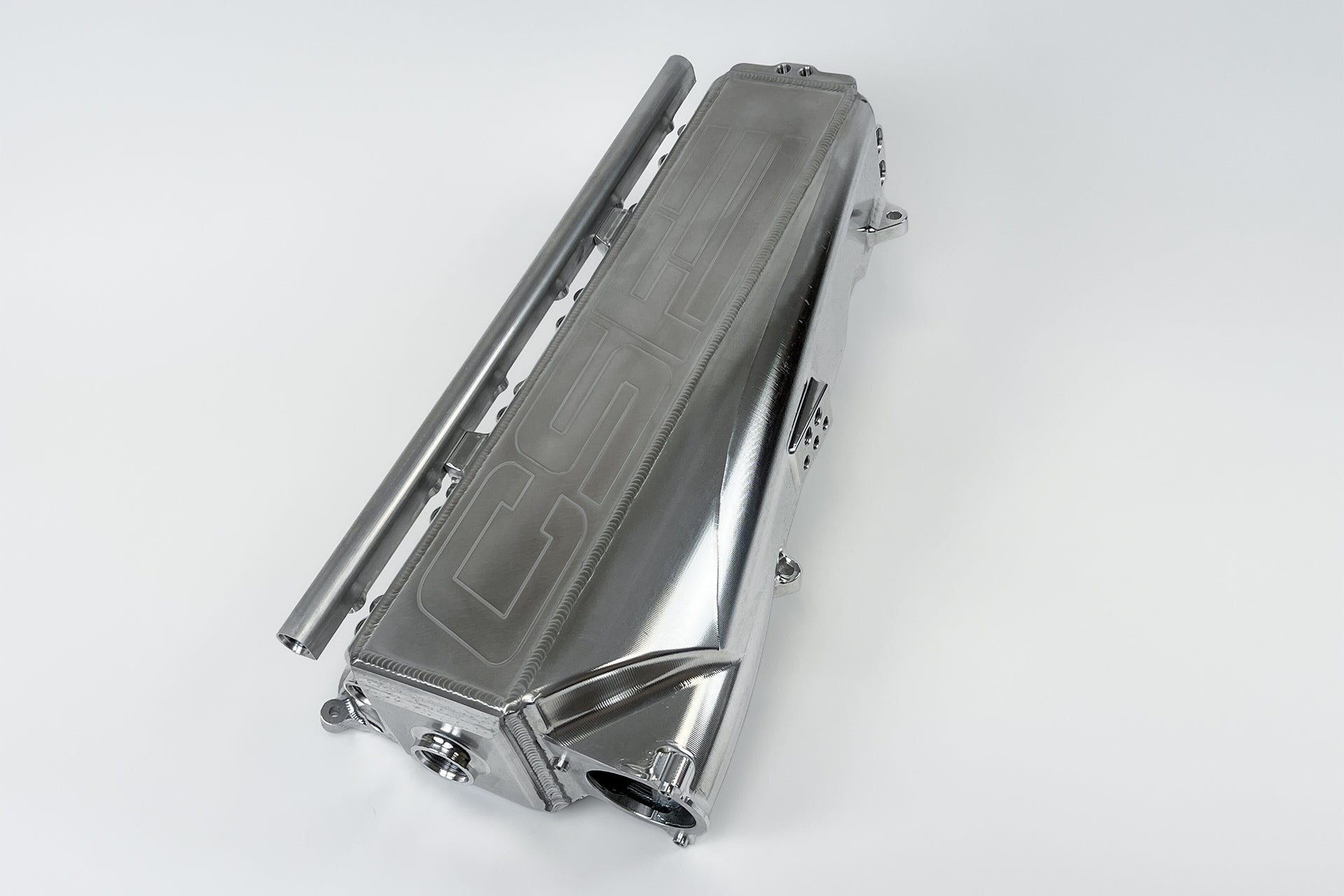

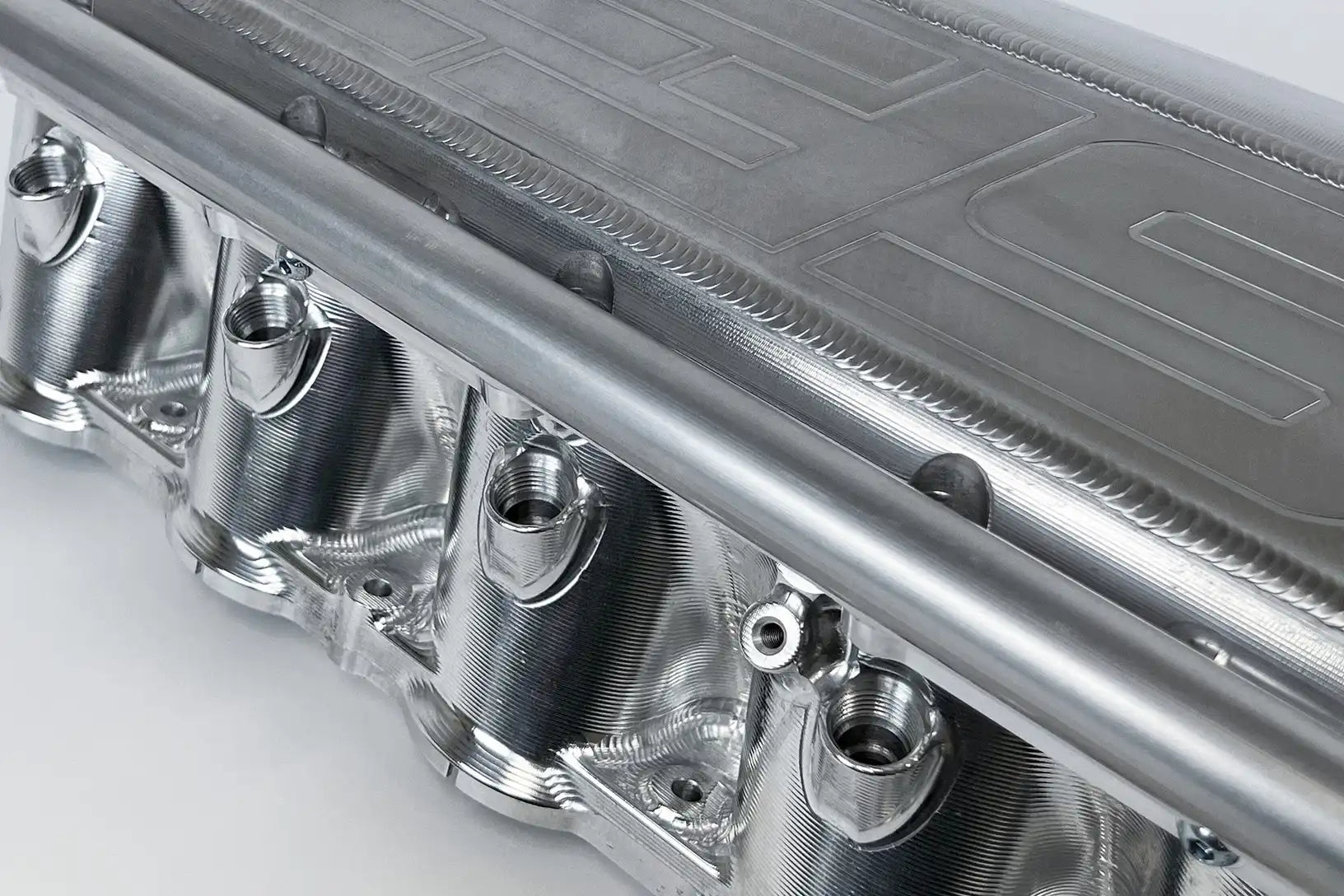

BMW Gen 2 B58 Race X Charge Air Cooler Manifold - Raw Billet

£4,830.00
£4,830.00
Shipping calculated at checkout.

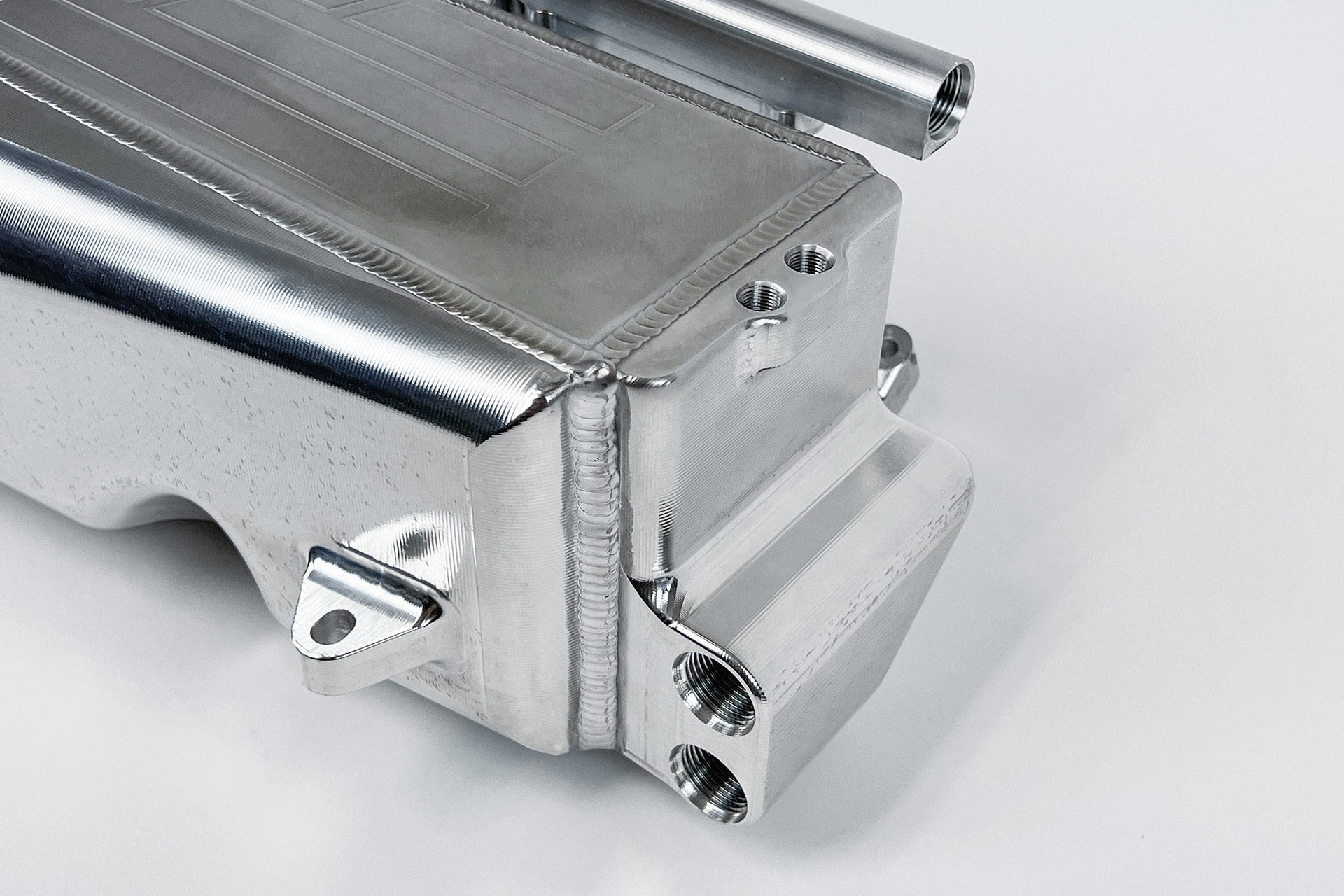

Two 1/8" NPT ports are located on the top of the back water plate. These ports can be used to measure inlet/outlet water temps as well as used as breather ports to help in the bleeding procedure. 1/8th NPT plugs come included in the supplied hardware kit. Please follow OEM BMW or Toyota bleeding procedure which takes roughly 15 minutes to complete.

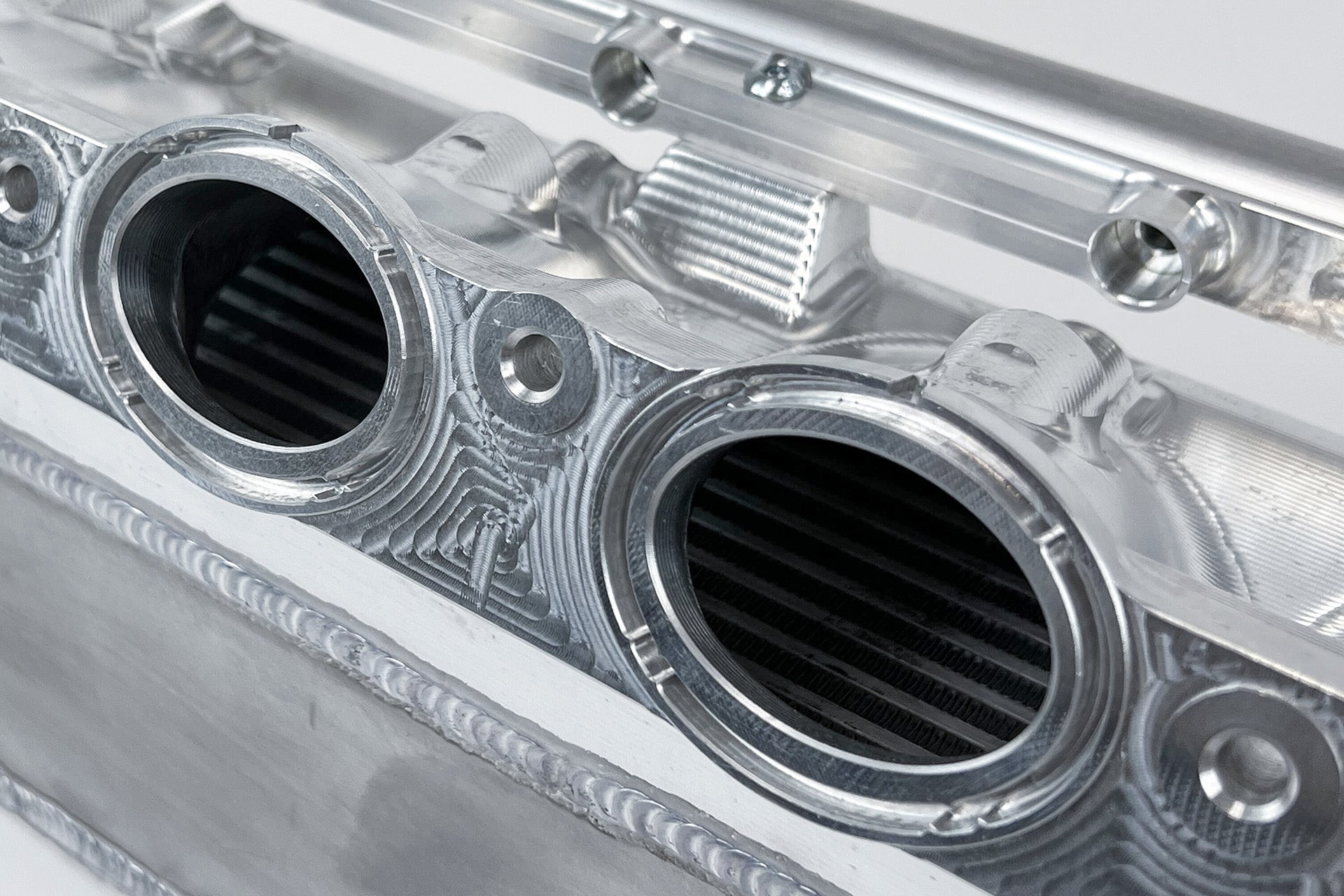

  • Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core - 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) - 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows
  • Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
  • Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
  • Some modifications to install - this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform

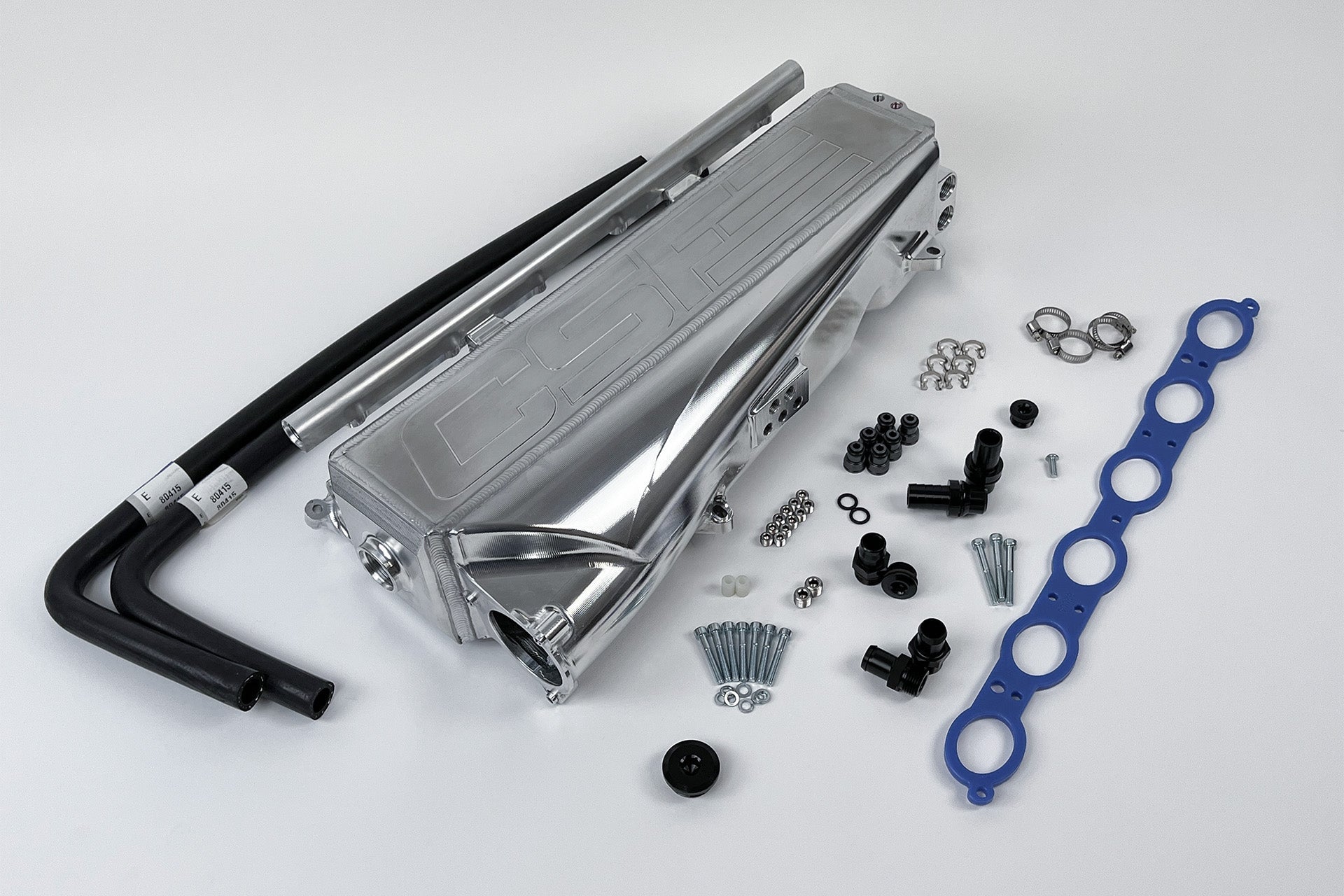

  • Includes Hardware and Installation Kit with Picture Diagrams and Instructions
  • Comes Finished in Raw Billet Aluminum (Available in Thermal Black Heat Dispersion Cerakote - CSF #8400B or Custom Finishes - CSF #8400C)
  • Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia

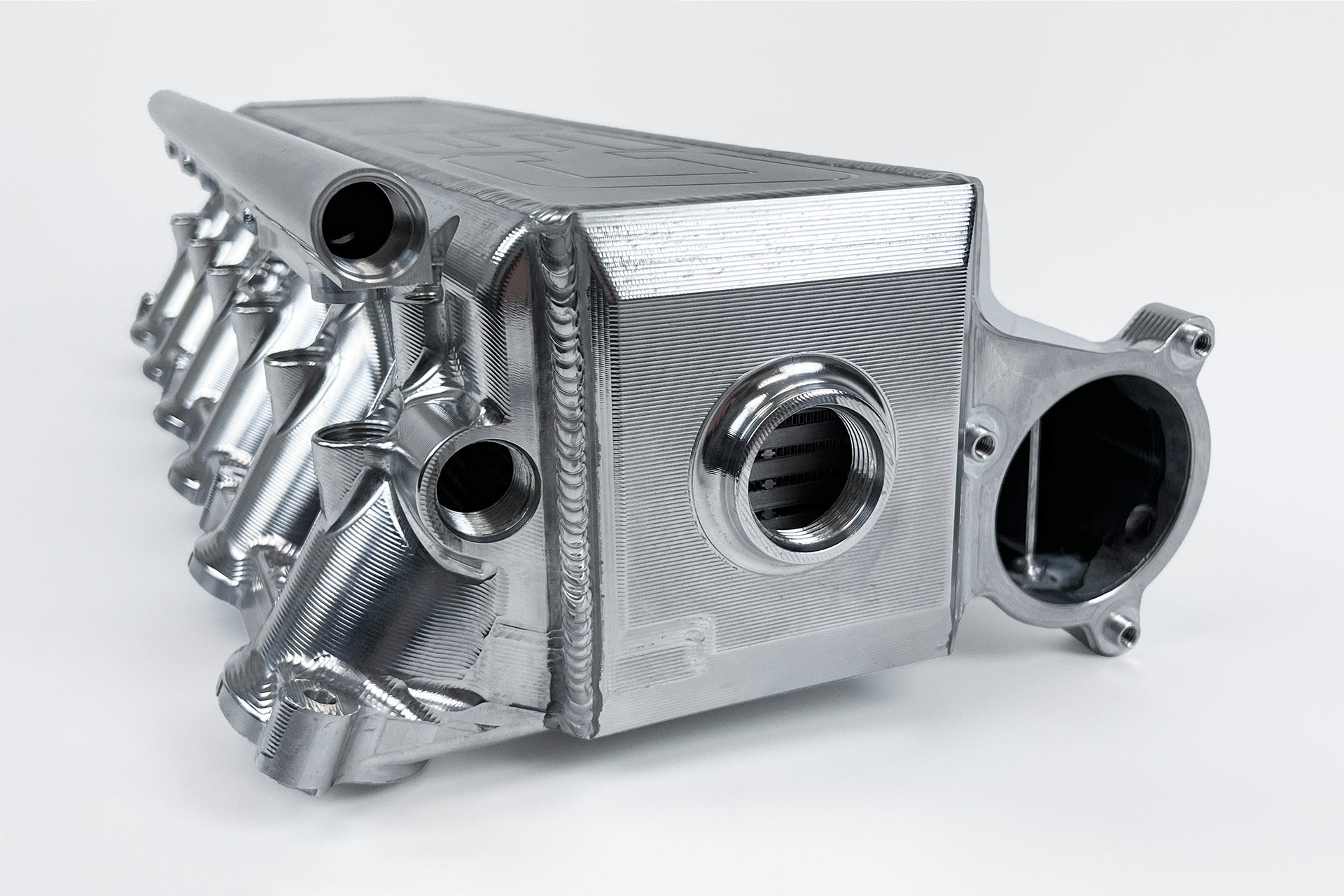

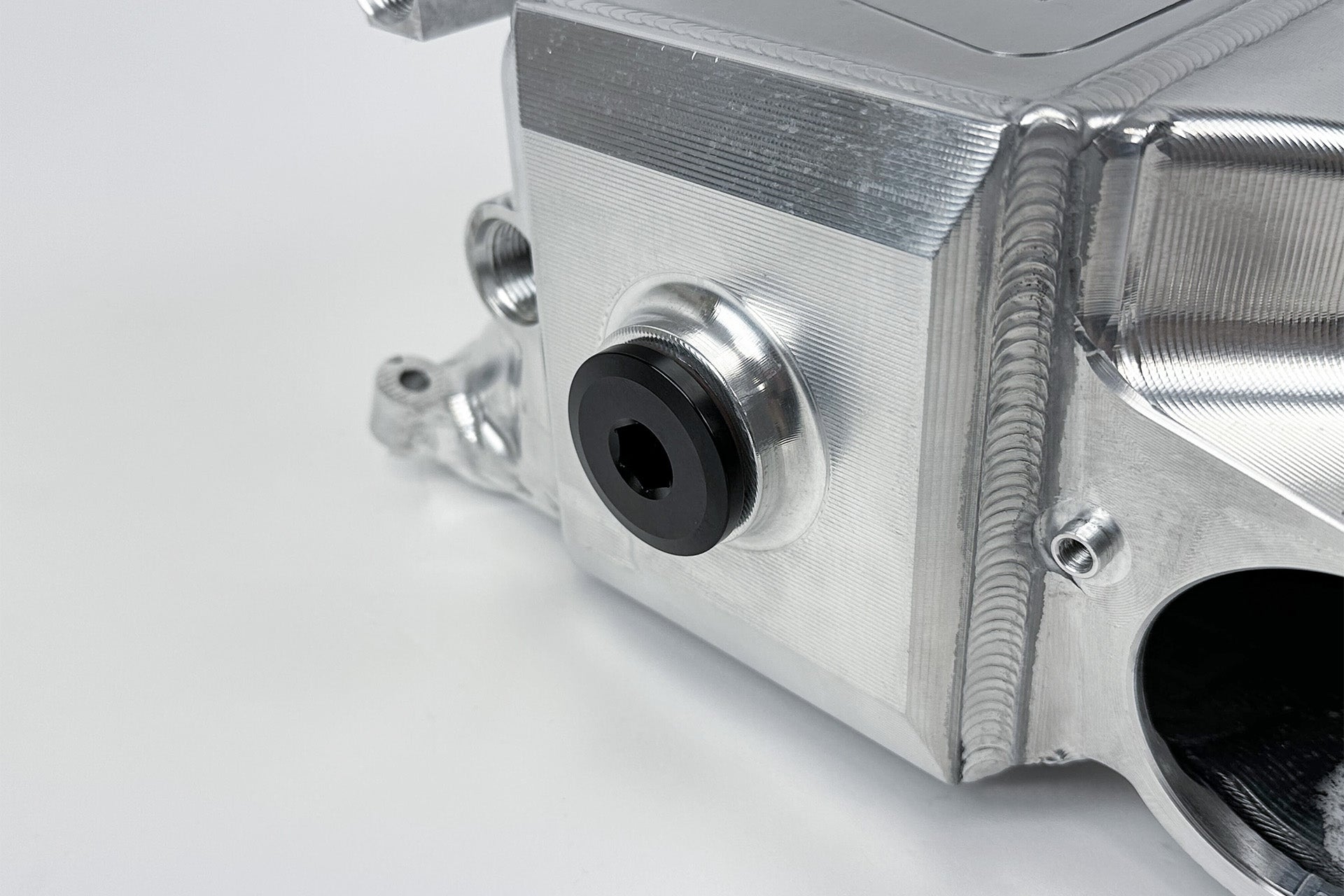

  • Core can be setup for dual or single pass: The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Includes CNC machined plug for dual-pass configuration
  • Designed in SolidWorks Using Computational Fluid Dynamics (CFD)

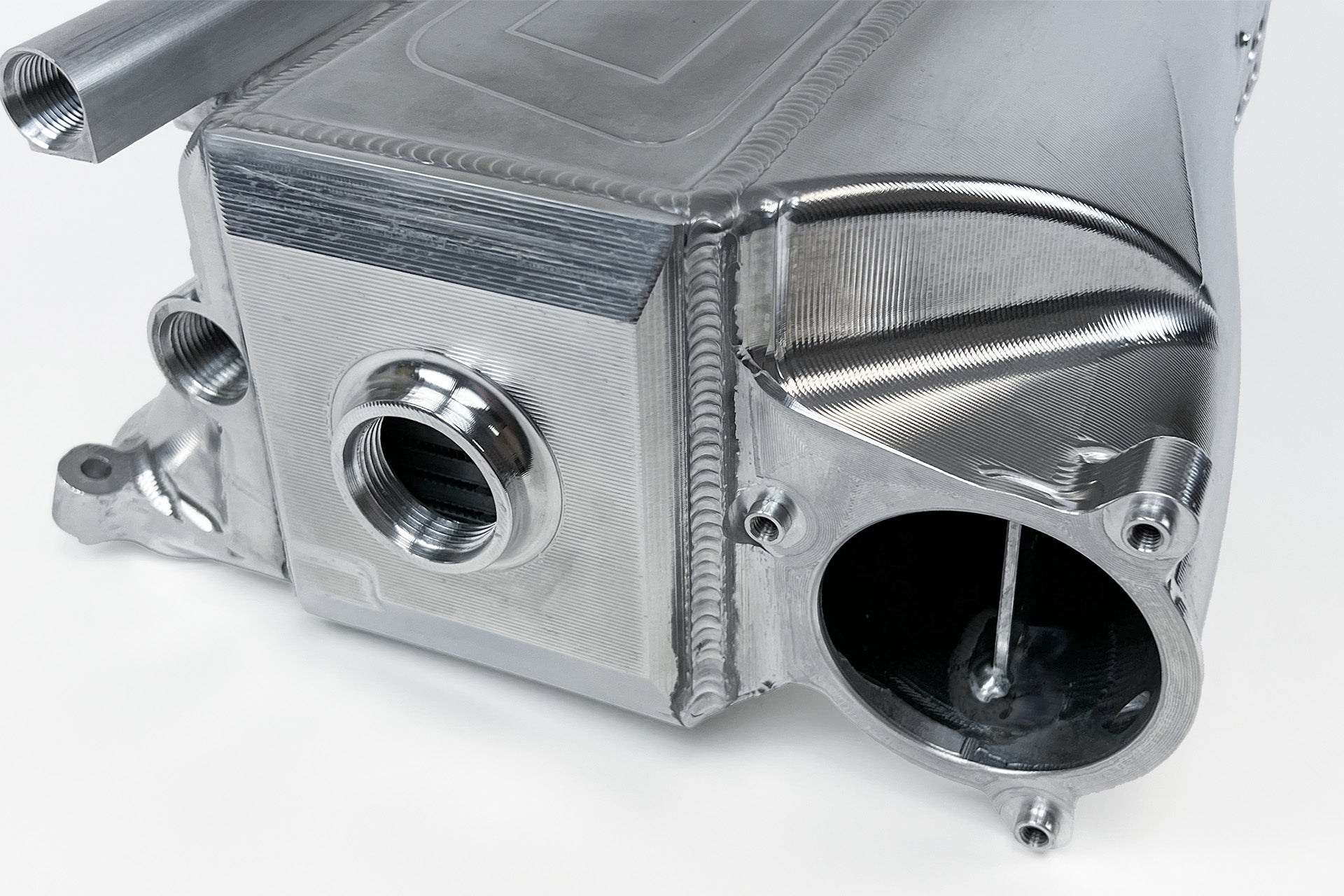

  • Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
  • Improved slotted mounting holes on throttle body side for easier installation
  • Easy Access to Spin-Off Oil Filter for Quick Oil Changes

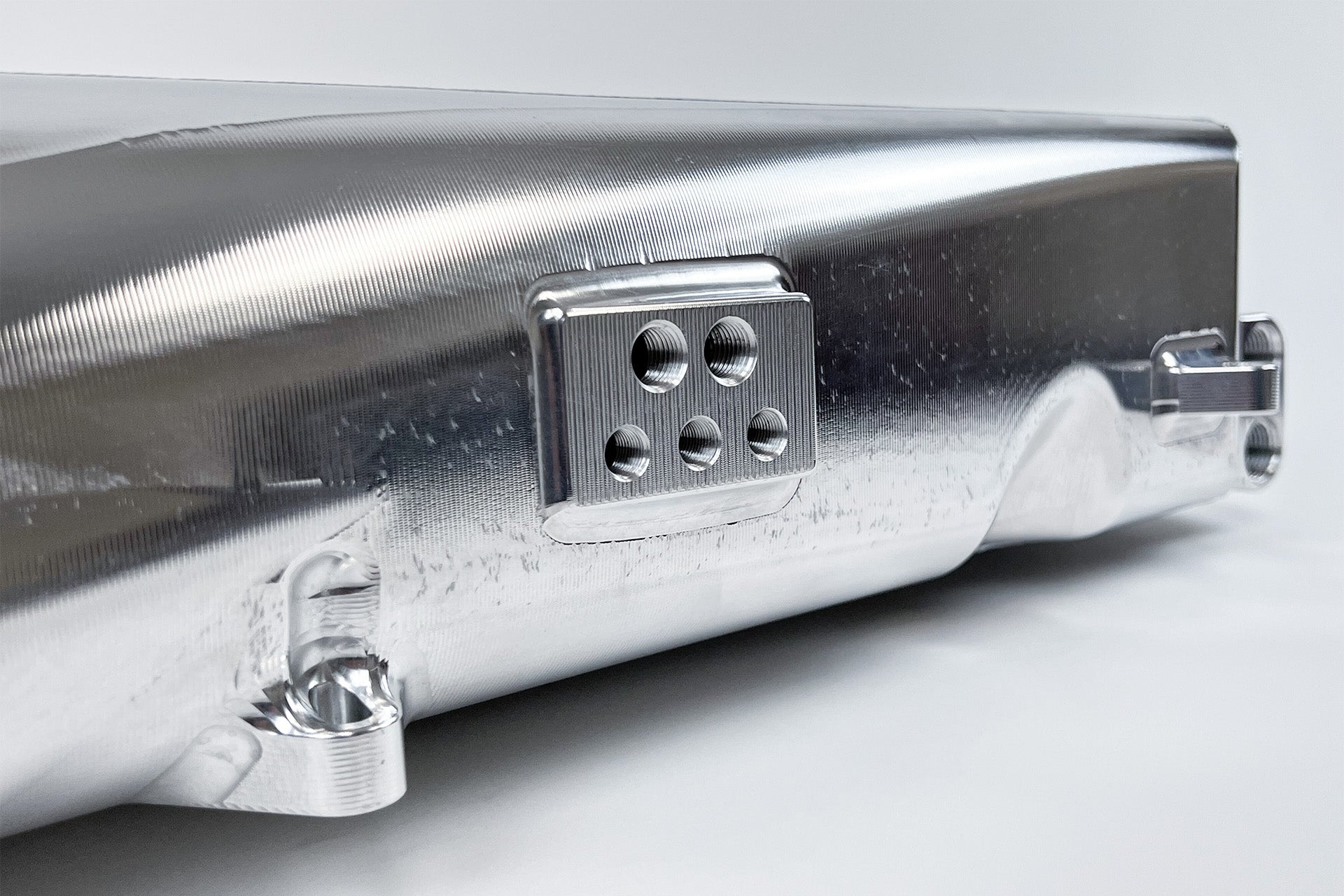

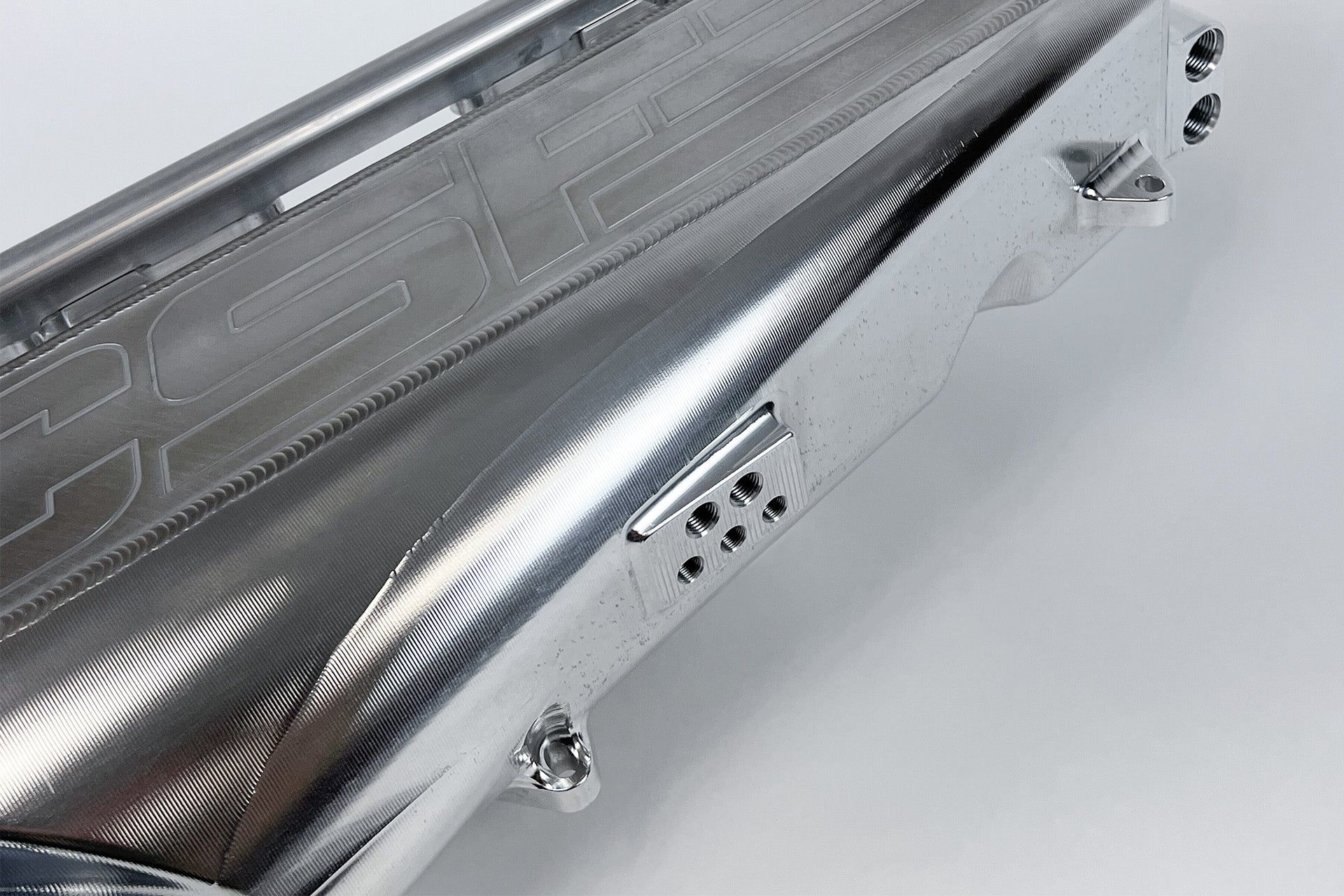

  • Integrated Sensor Pad with Two 1/4" and Three 1/8" NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum

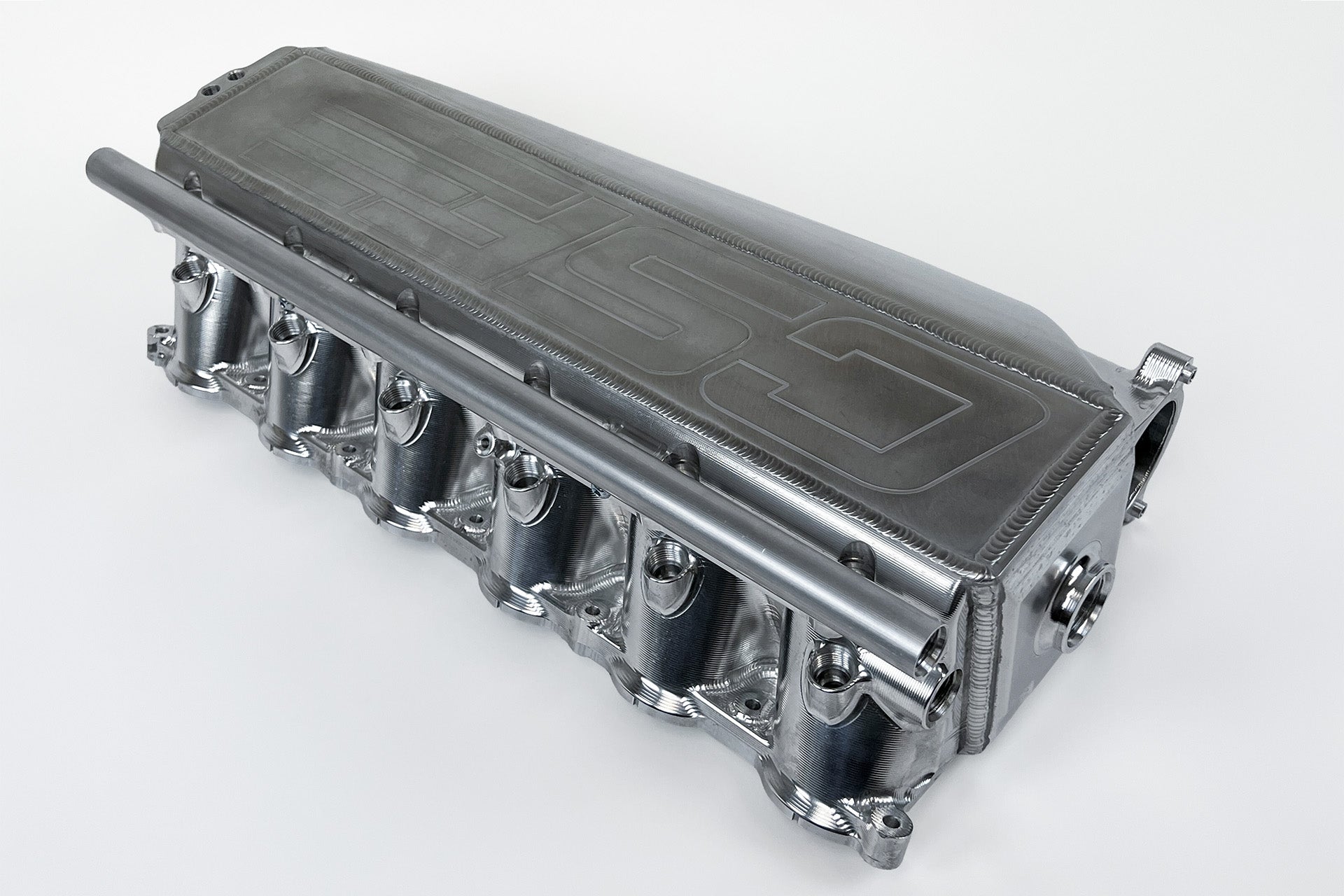

  • Included Fuel Rail for Top Feed Port Injection

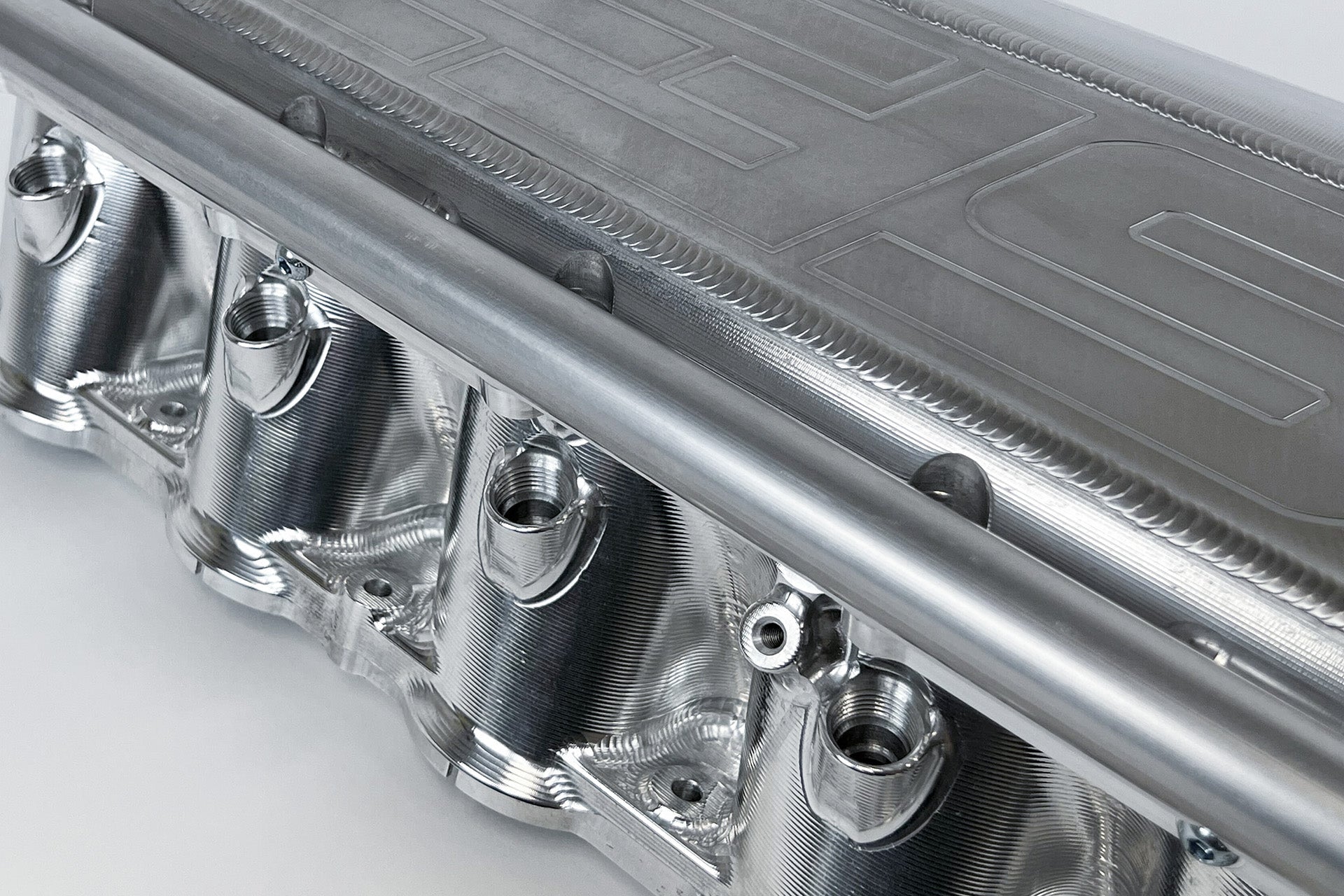

  • Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection - Allows for Even Spray Distribution and Control for Maximum Performance
  • GTIN: 00710353084007
  • Brand Name: CSF Cooling - Racing & High Performance Division
  • ADD-ON: 8200C
  • Core Material: Aluminum
  • Country of Origin: Austrailia
  • Emissions : Racing or Pre-Emissions Use Only
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 28 x 15 x 10 inches
  • Weight: 26 lb
