BMW S54 Swap E36 Race-Spec Dual-Pass Oil Cooler

SKU: CSF-8240
Regular price Price: £552.00

Accepted payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Do you have questions about this product?

📞 Ask an Expert!

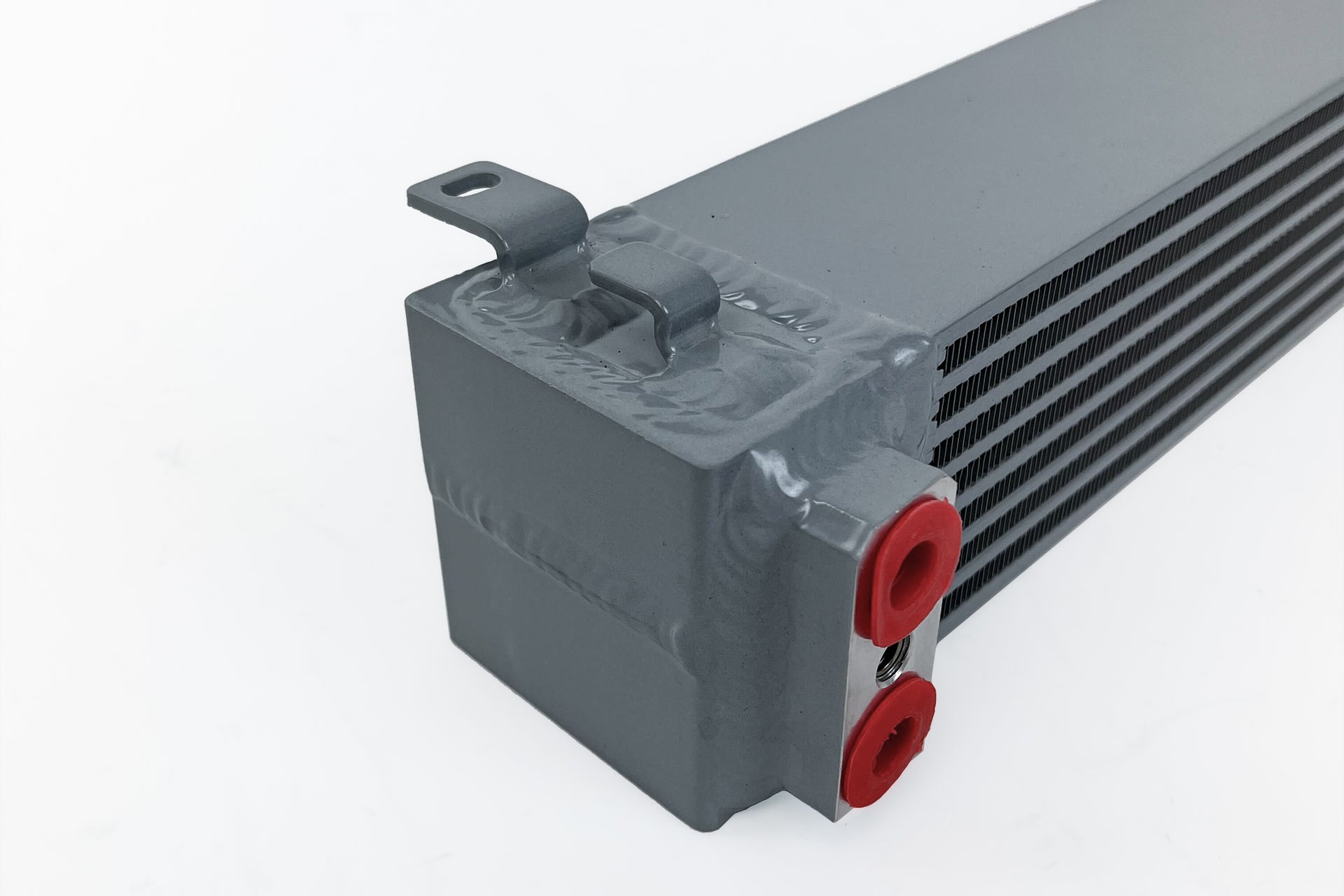

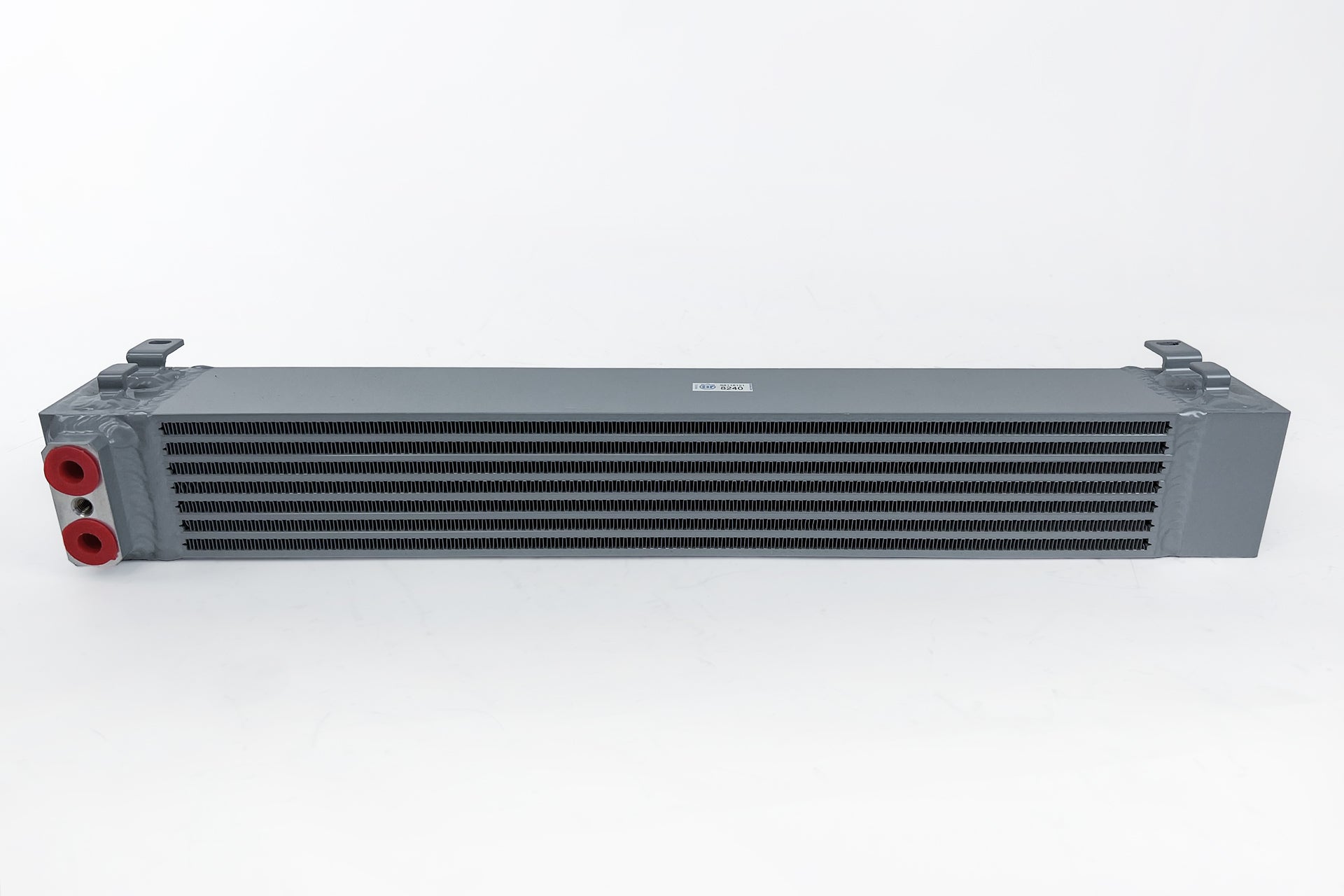

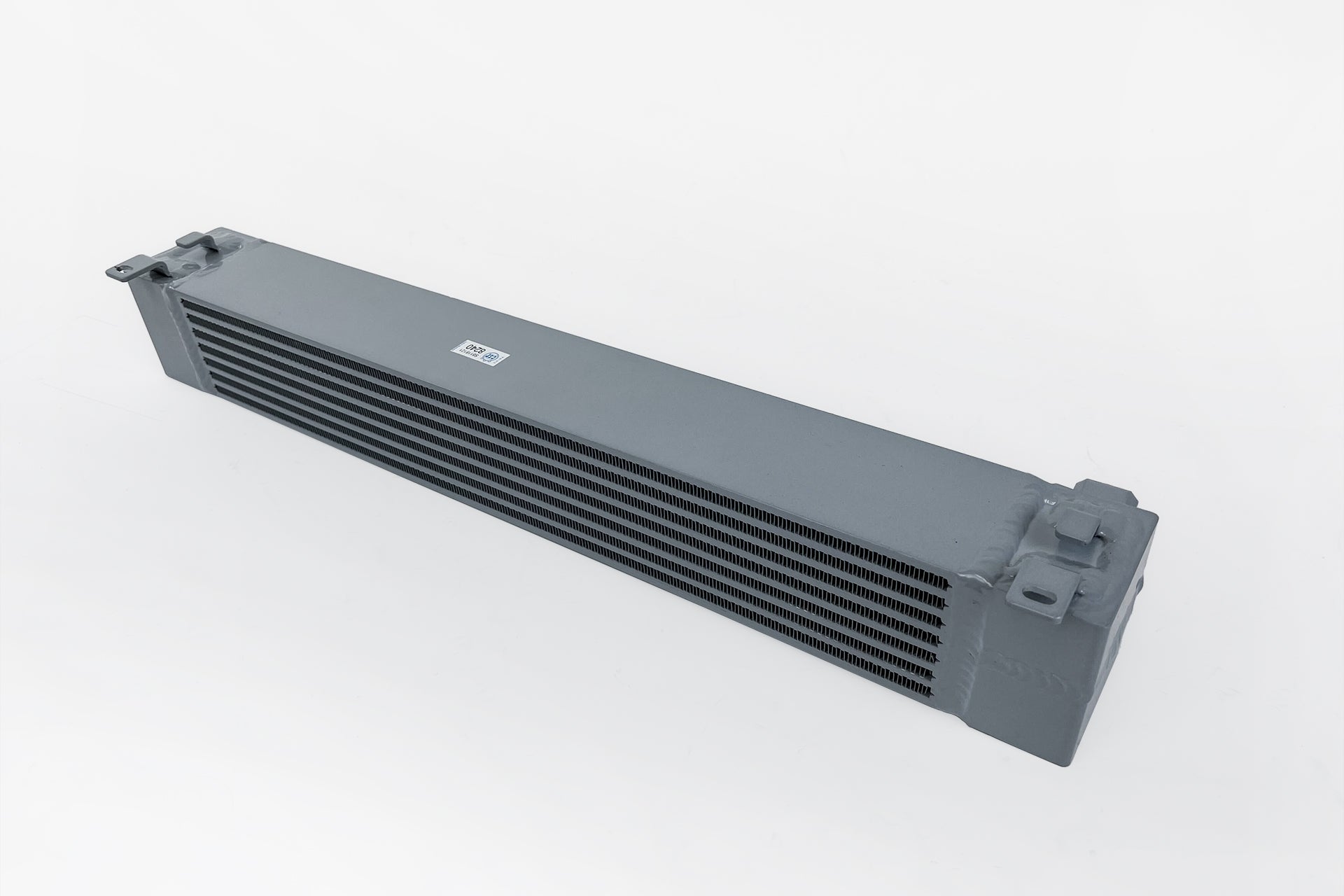

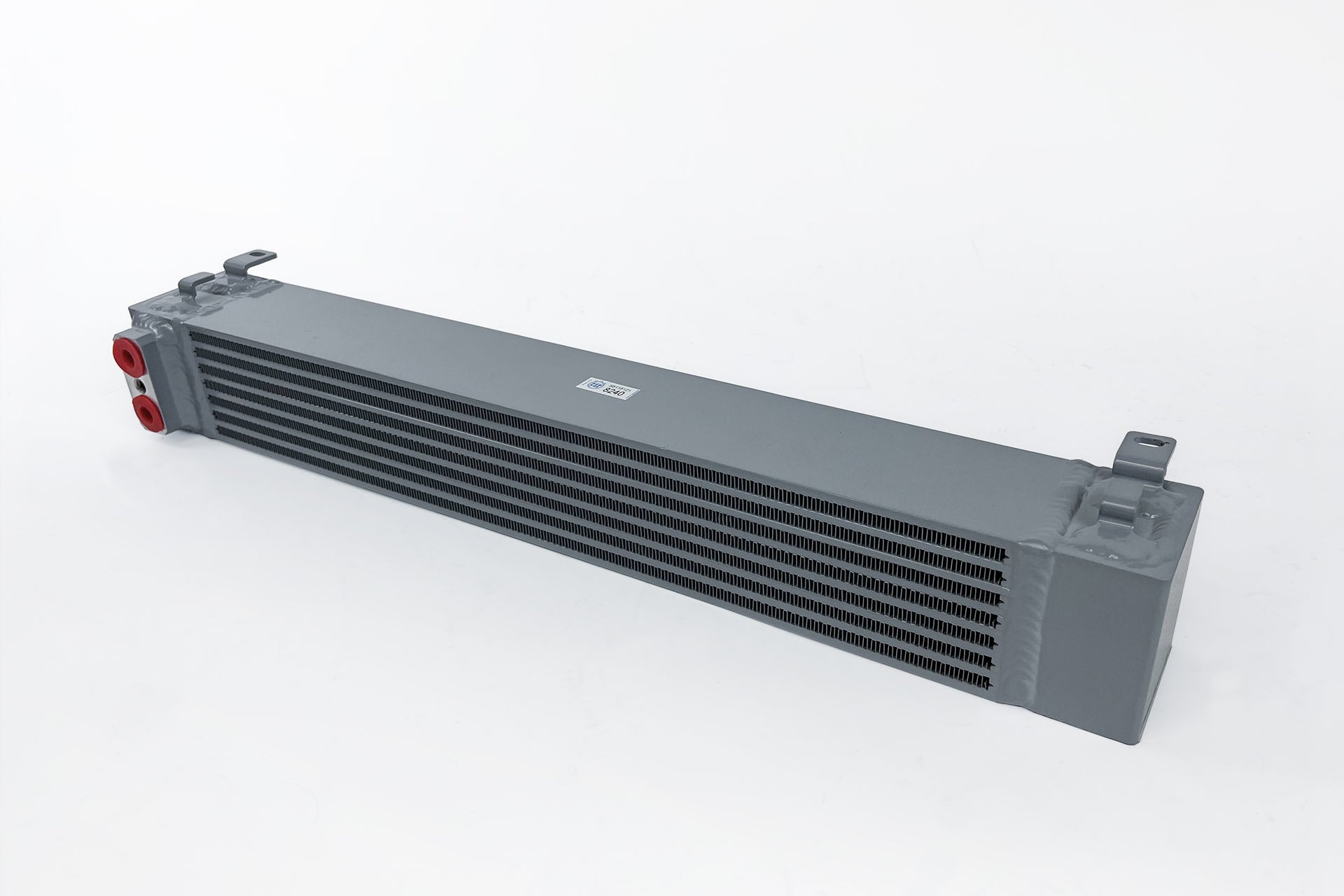

Enter the new CSF S54 Swap Race Spec Oil Cooler. This new oil cooler is shorter on the right hand side allowing owners to run the A/C lines in the OEM path. Even though the #8240 is slightly smaller than the #8032, you can expect similar performance levels as they both feature a dual pass design with 8 cooling rows and are the same turbulated heavy-duty bar/plate construction. Both oil coolers utilize the S54 OEM oil line connections. However, CSF will be offering a fitting kit with -10 AN hookups for customers looking to run custom oil lines. This fitting kit should be available by the second quarter of 2023.
  • Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
  • Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability
  • Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
  • 8 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design

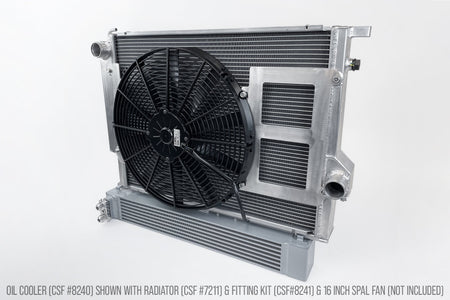

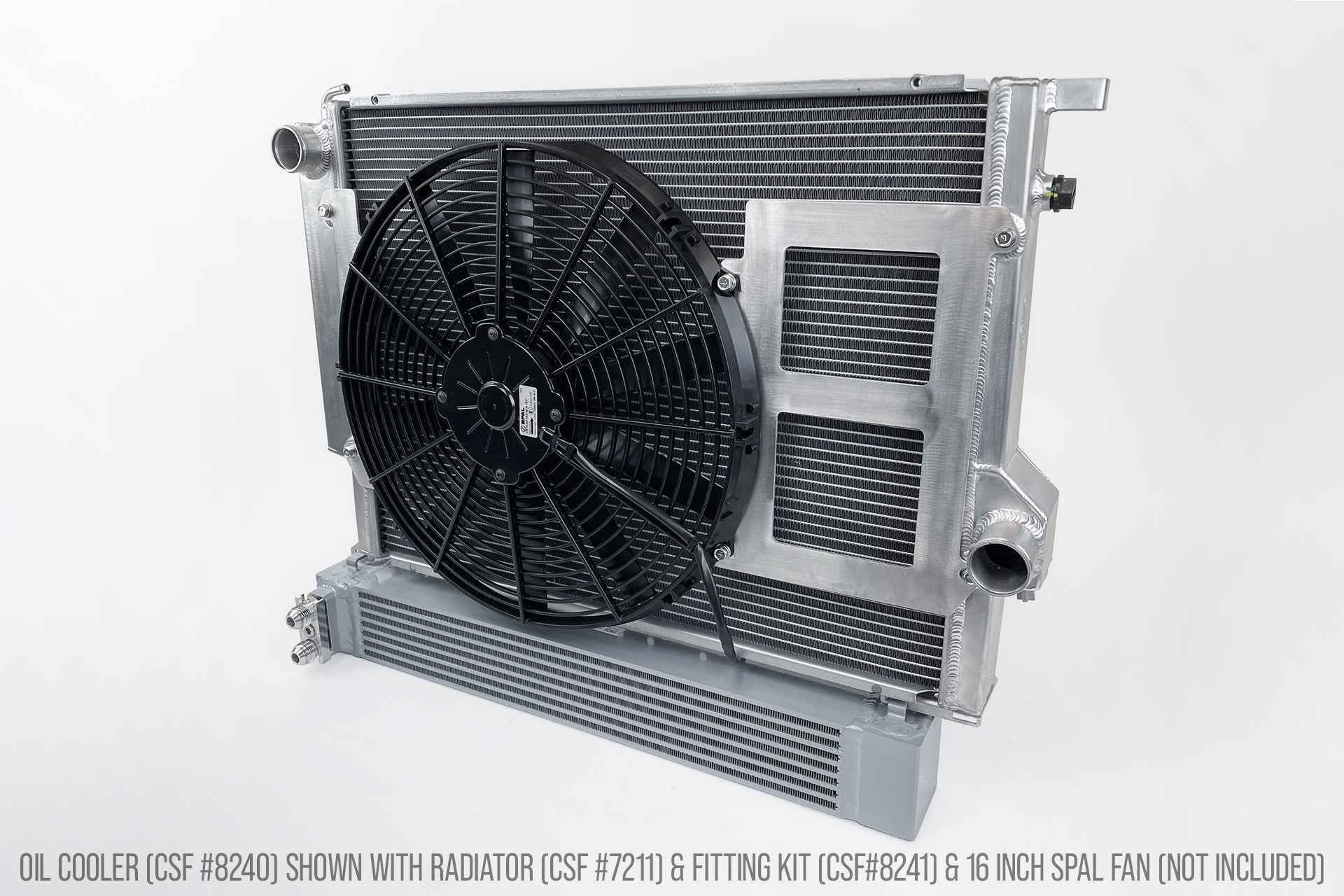

  • Designed to Work with CSF's S54 Swap All-Aluminum Radiator (CSF #7211)
  • Motorsport Silver Finish
  • Accepts Factory Oil-Line Connections
  • For S54 Swap Vehicles with Air Conditioning (A/C)
  • For S54 Swap Vehicles without Air Conditioning (A/C) see CSF #8032
  • GTIN: 00710353082409
  • Brand Name: CSF Cooling - Racing & High Performance Division
  • ADD-ON: 8241
  • Core Material: Aluminum
  • Country of Origin: CN
  • Emissions : CARB Eligible
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 7 x 7 inches
  • Weight: 10 lb
