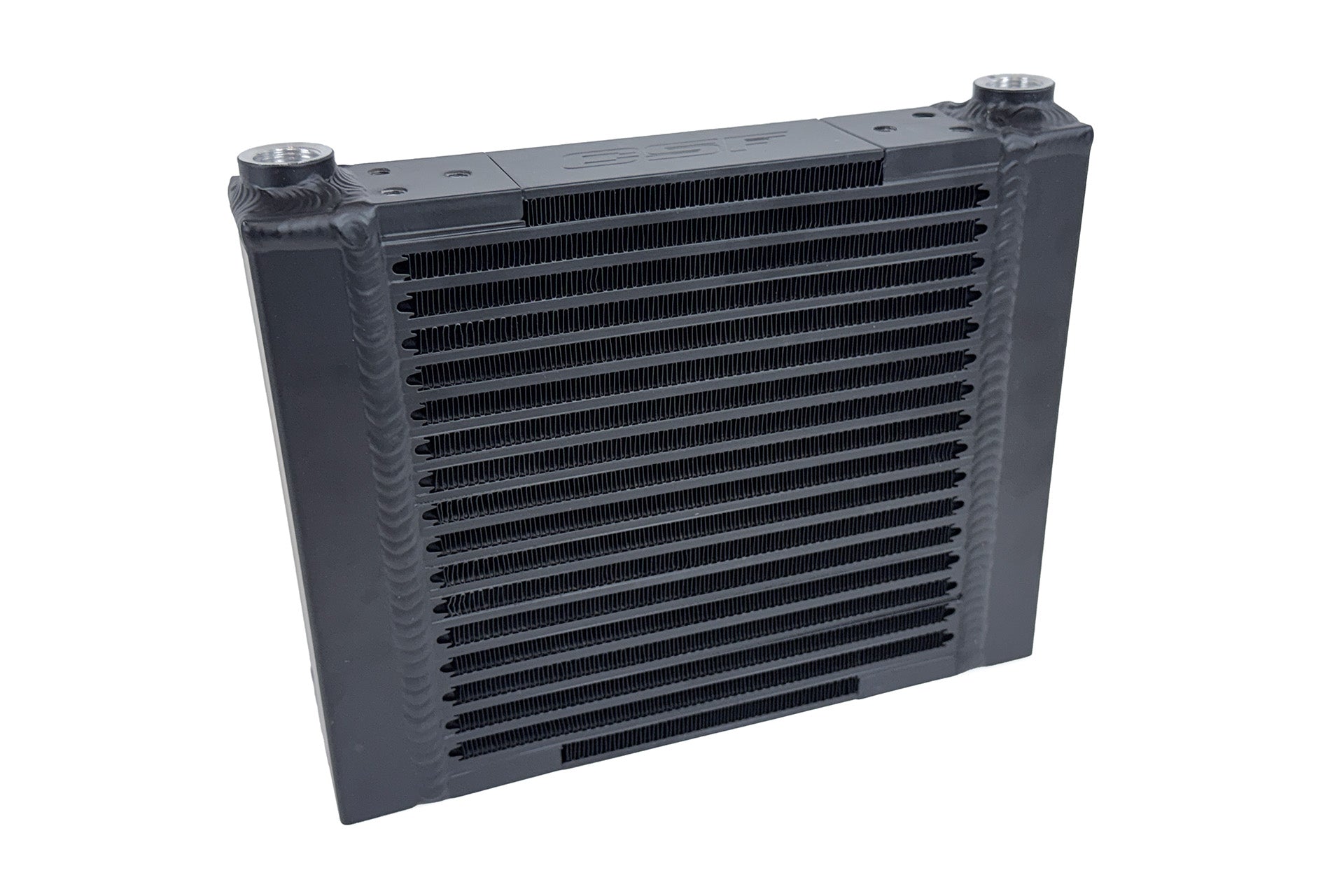

CSF Large Universal Single-Pass Oil Cooler
Accepted payment methods
Do you have questions about this product?
📞 Ask an Expert!CSF’s first 6 oil coolers were designed to have many distinct advantages over conventional plate-type/stacked style oil coolers. The long shape allowed them to be placed in tighter spaces or different areas of the vehicle that don’t have much vertical surface area. Inlet/outlet port placement also made routing lines easier in many setups, making it an ideal oil cooler for car performance applications and custom car cooling system setups.

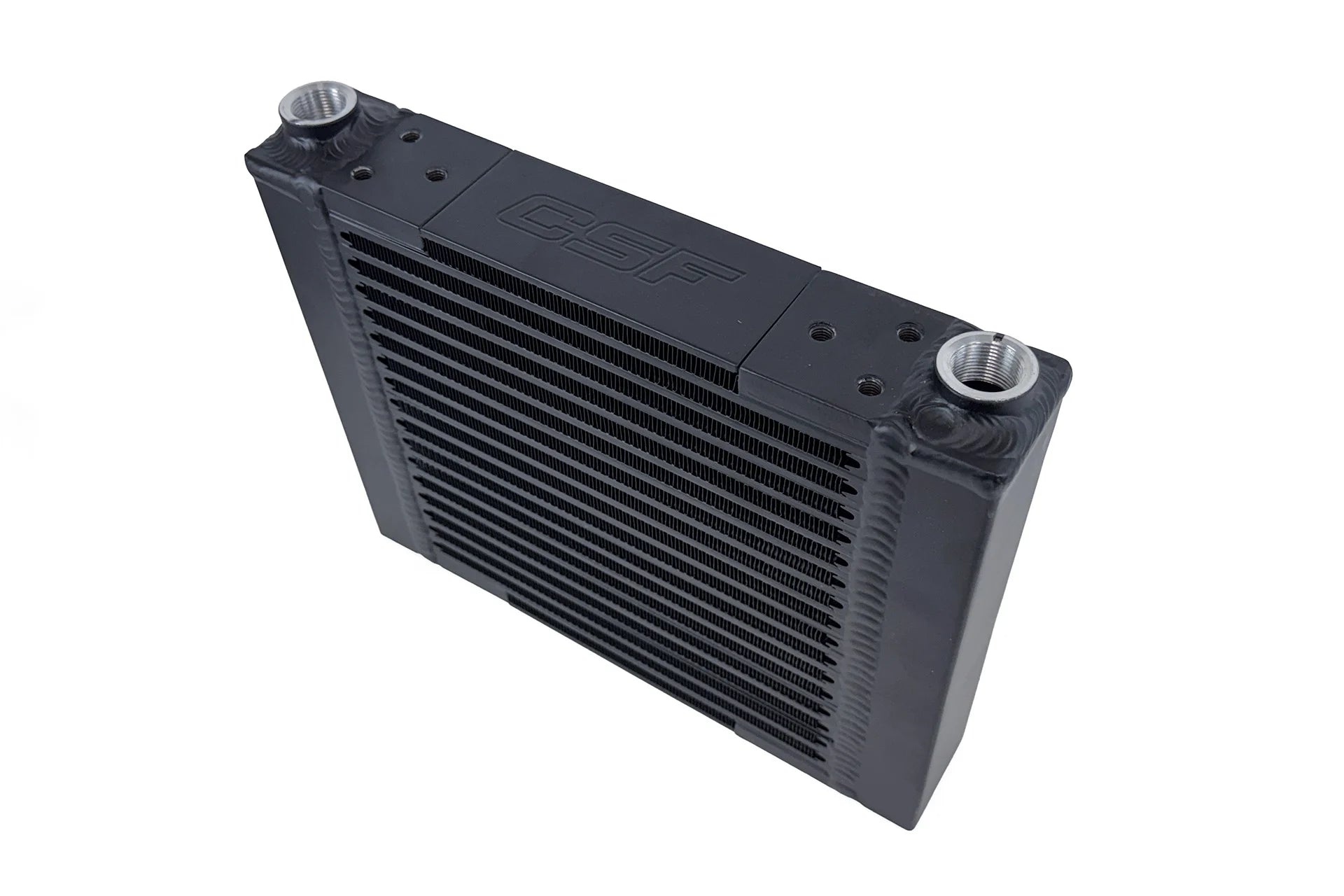

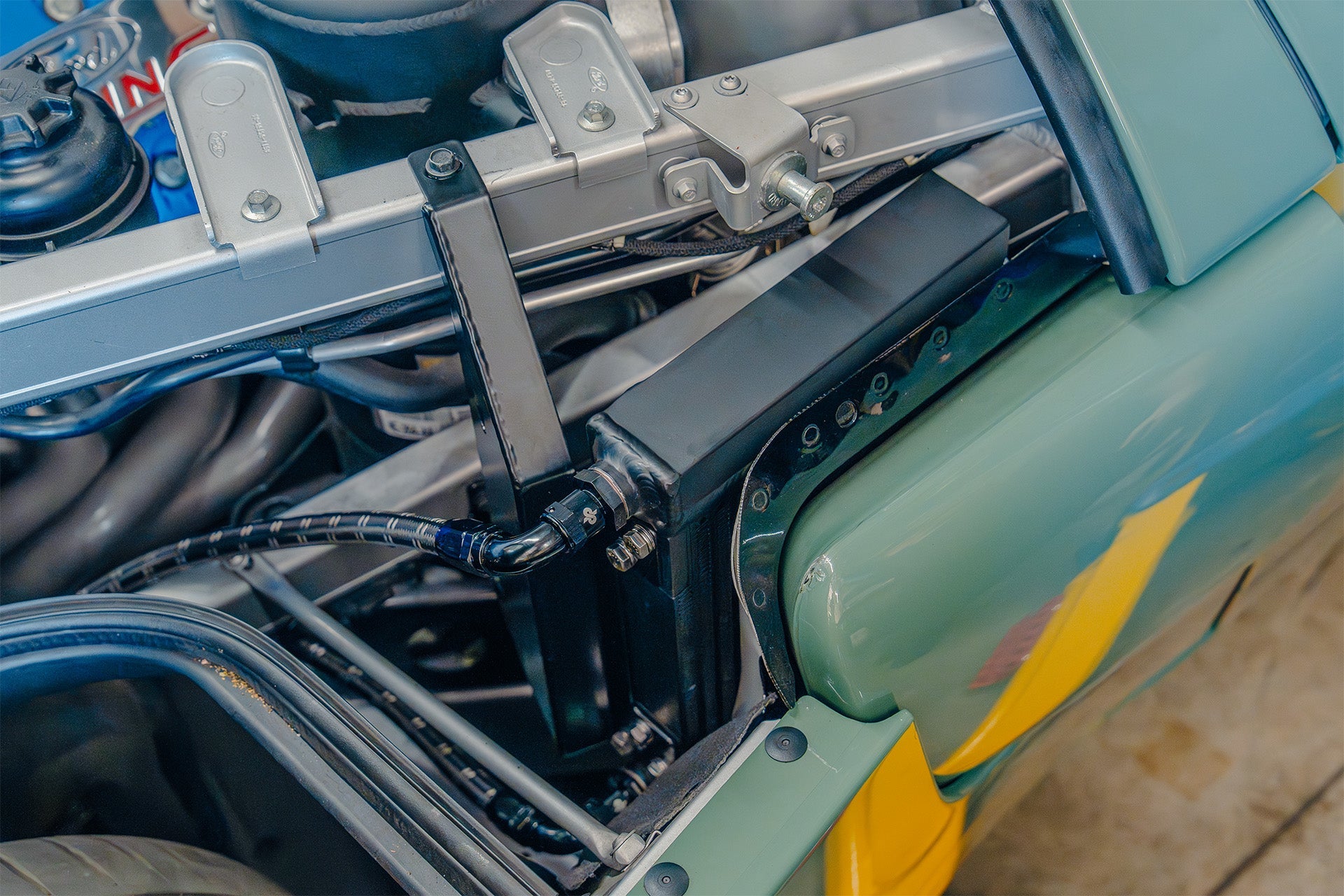

However, for this new oil cooler, CSF went with a more traditional inlet/outlet orientation. The new single pass design features the same High Efficiency & Rugged Durability Bar/Plate Core as our best selling line of oil coolers, but with vertically oriented inlet and outlet connections. This setup also works well as part of a universal oil cooler kit for performance and motorsport vehicles.
Key Features:

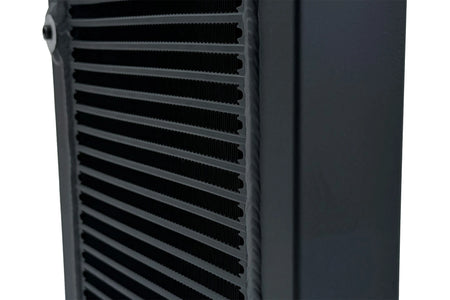

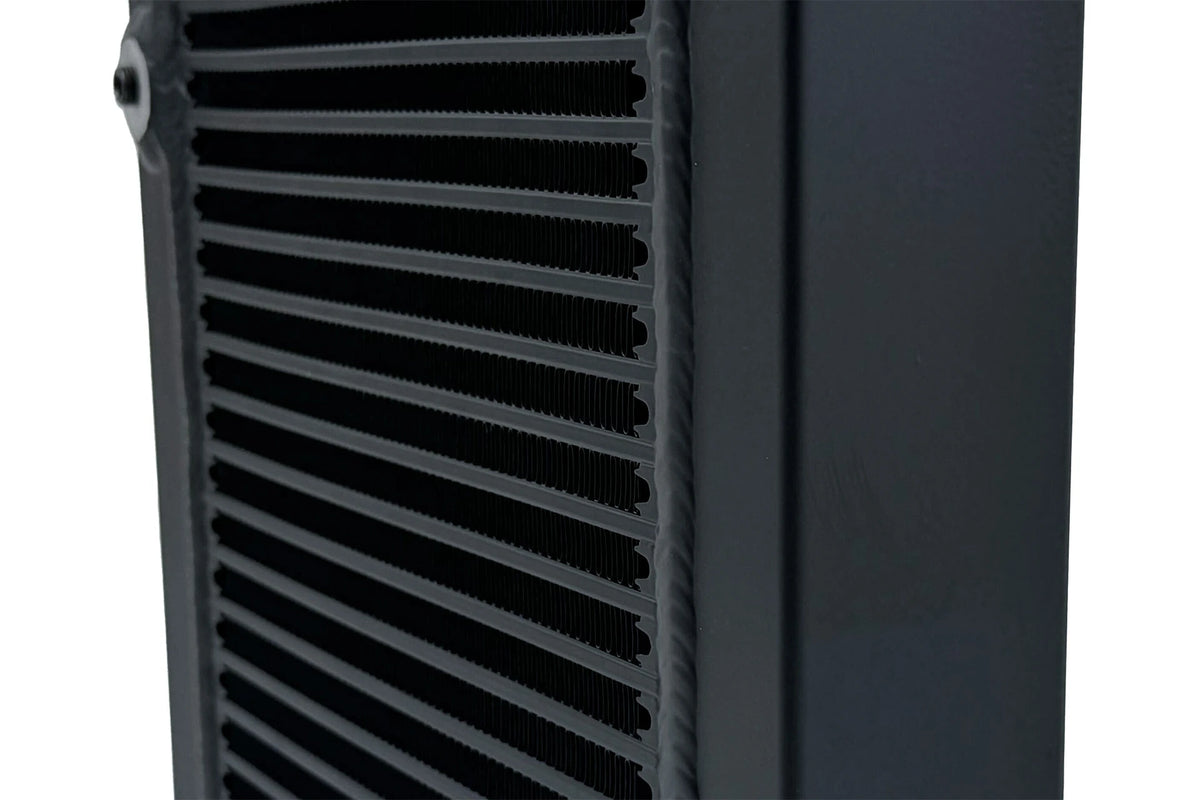

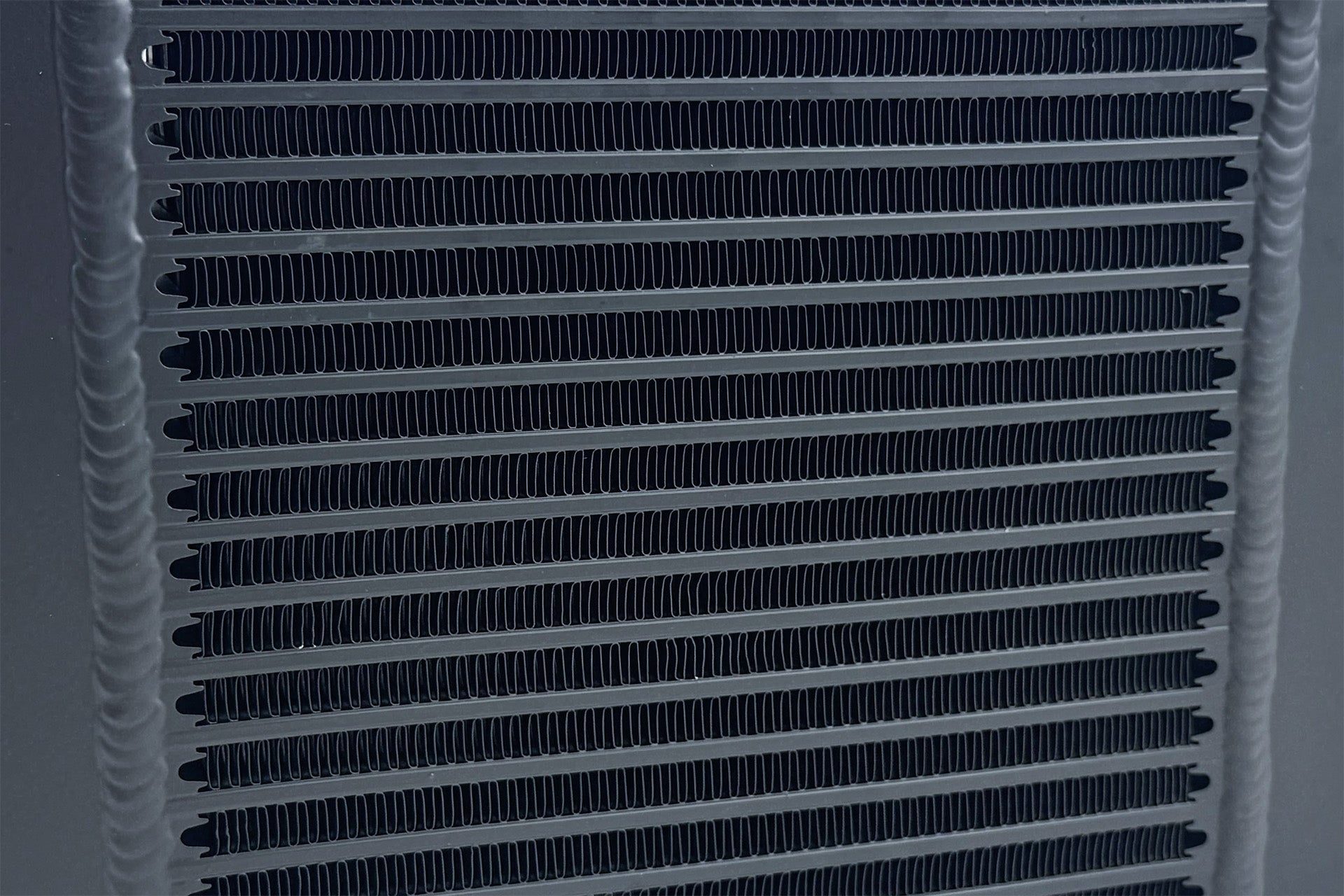

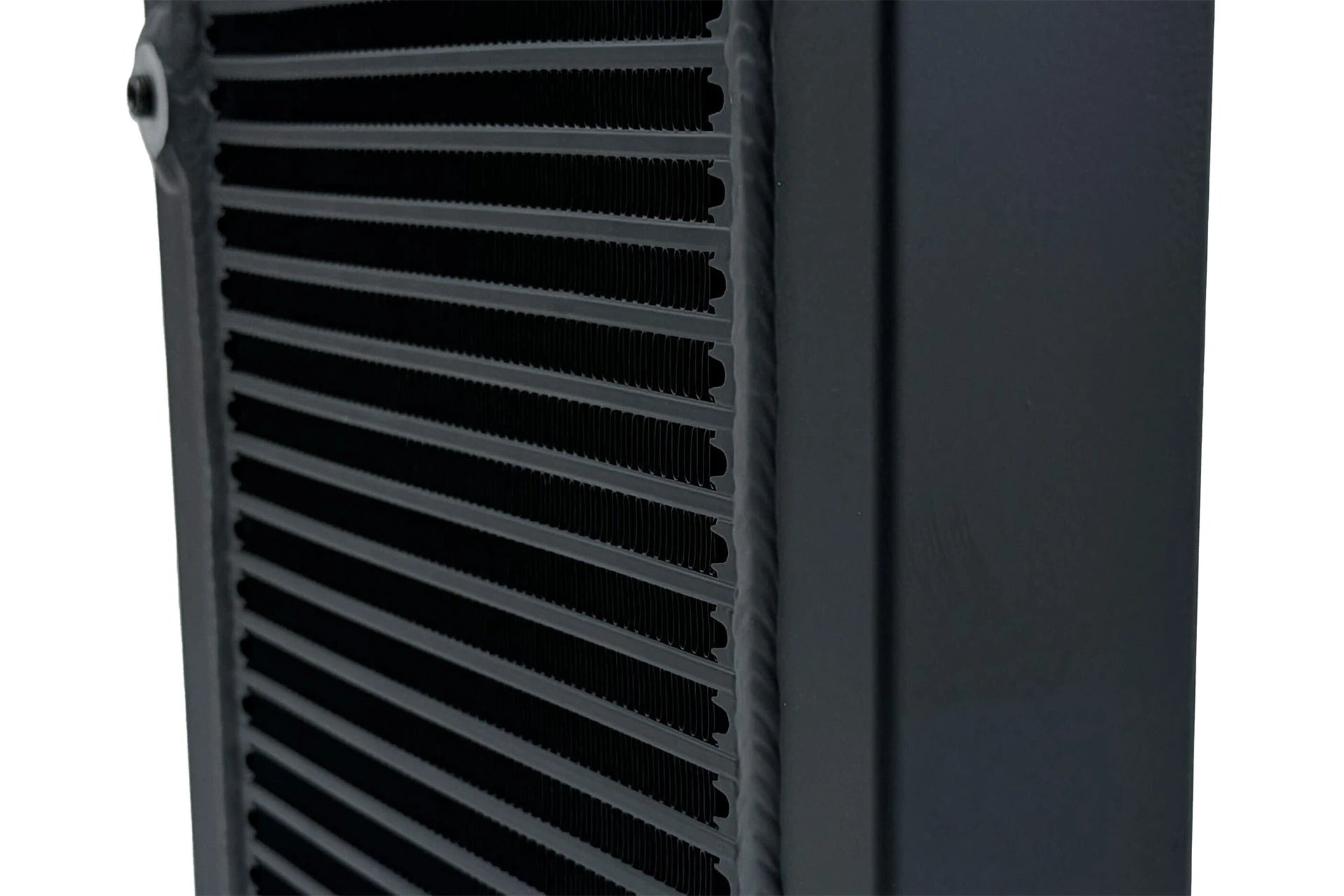

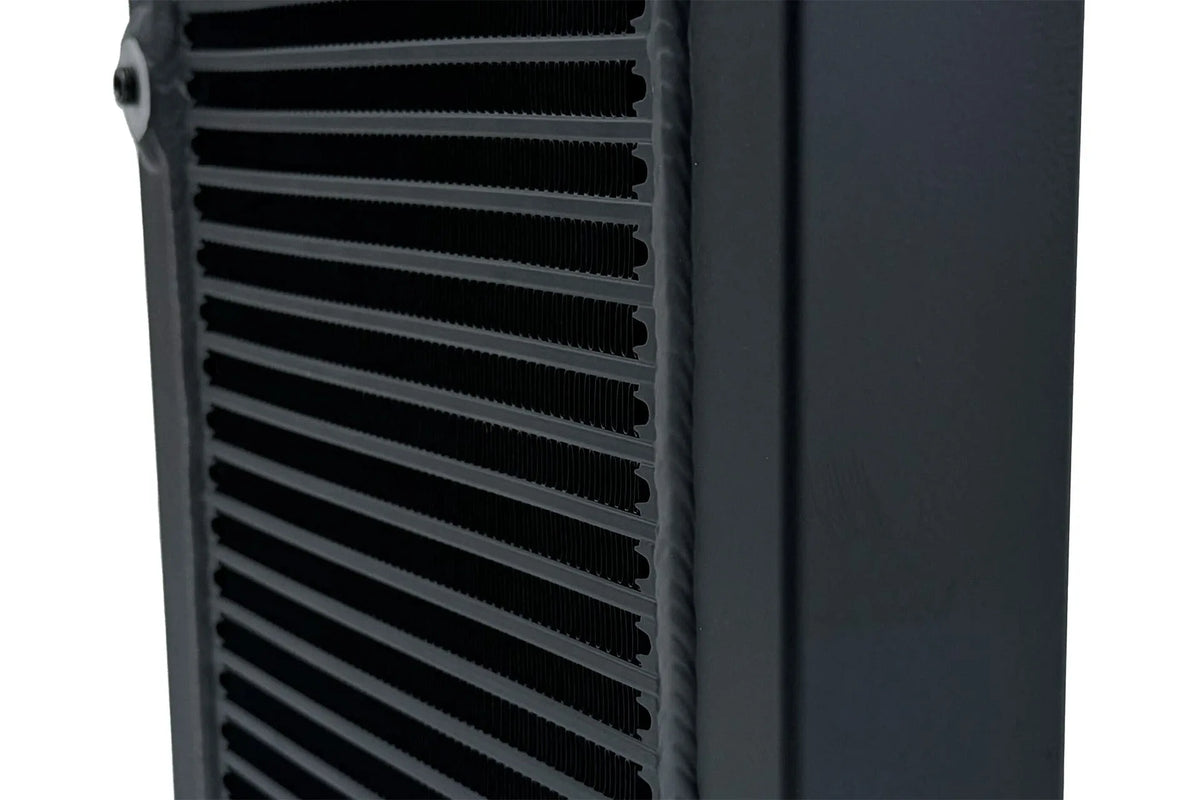

- High Efficiency “Aero-Flow” Bar/Plate Core – Designed to be Lightweight, Durable, and offer Maximum Flow.
- TIG-Welded End Tanks – Stronger and more durable than the brazed construction, reducing the risk of leaks.
- Massive Fluid Capacity – This oil cooler offers a whopping 1.5L (1.6 qt) of increased Fluid Capacity.

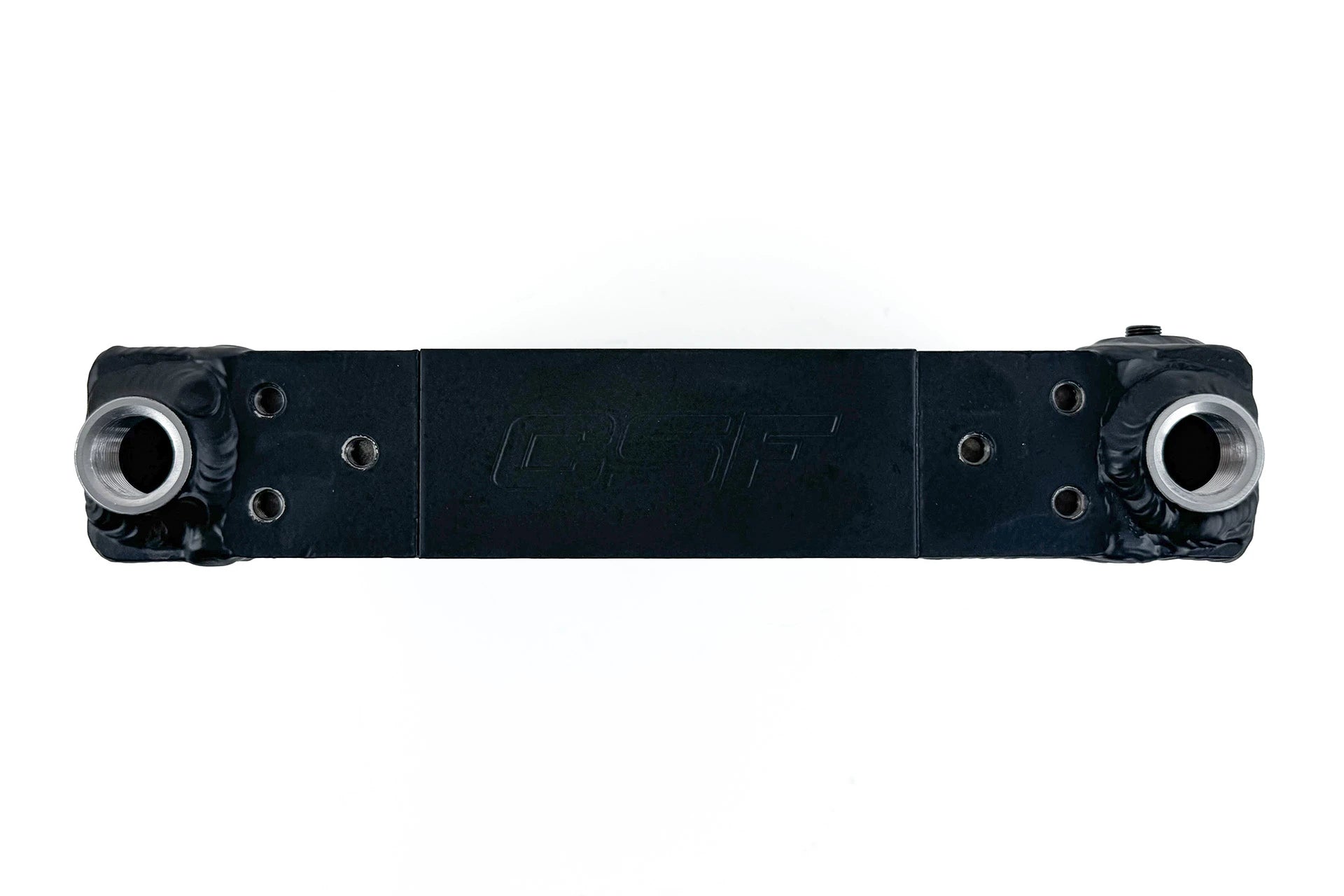

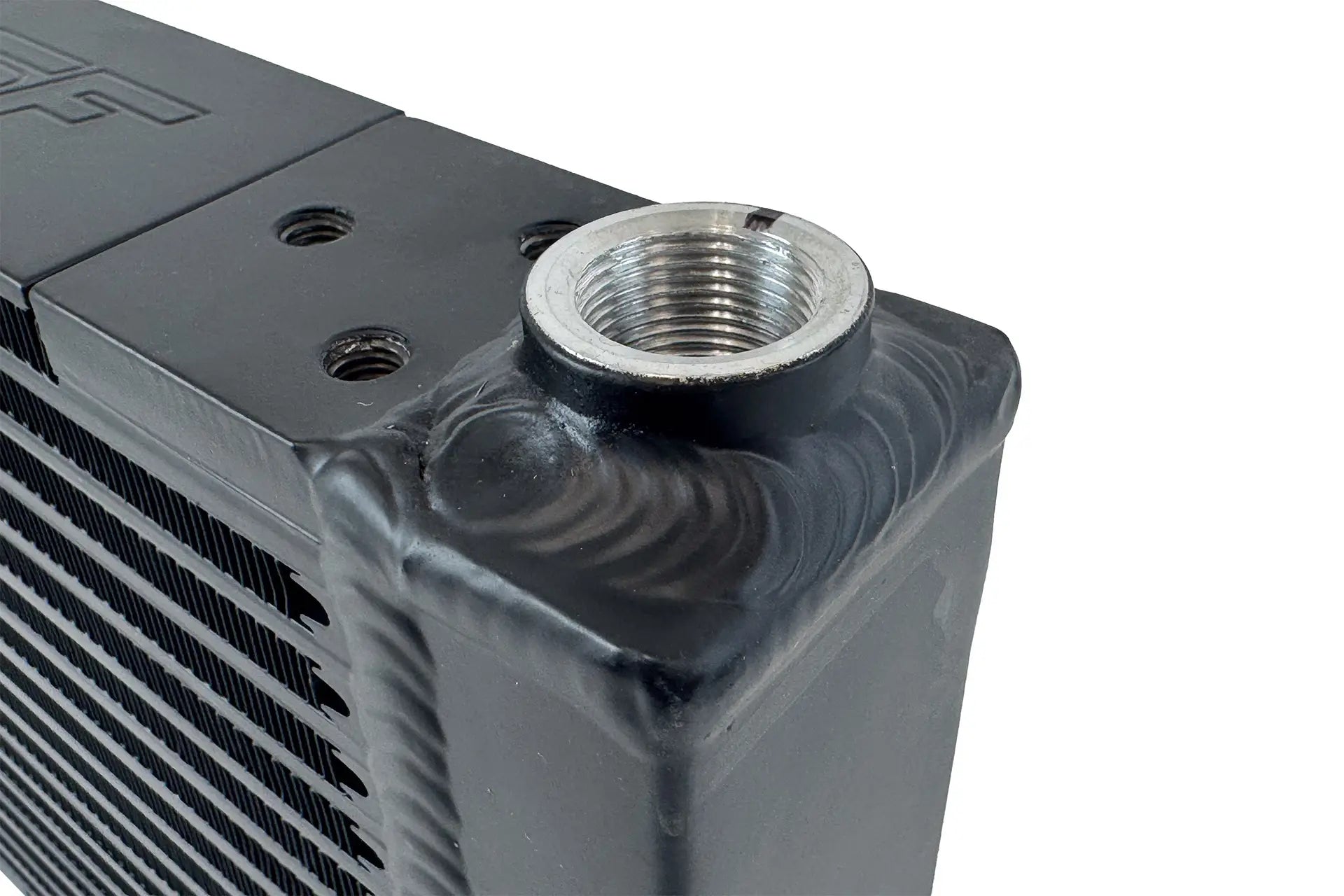

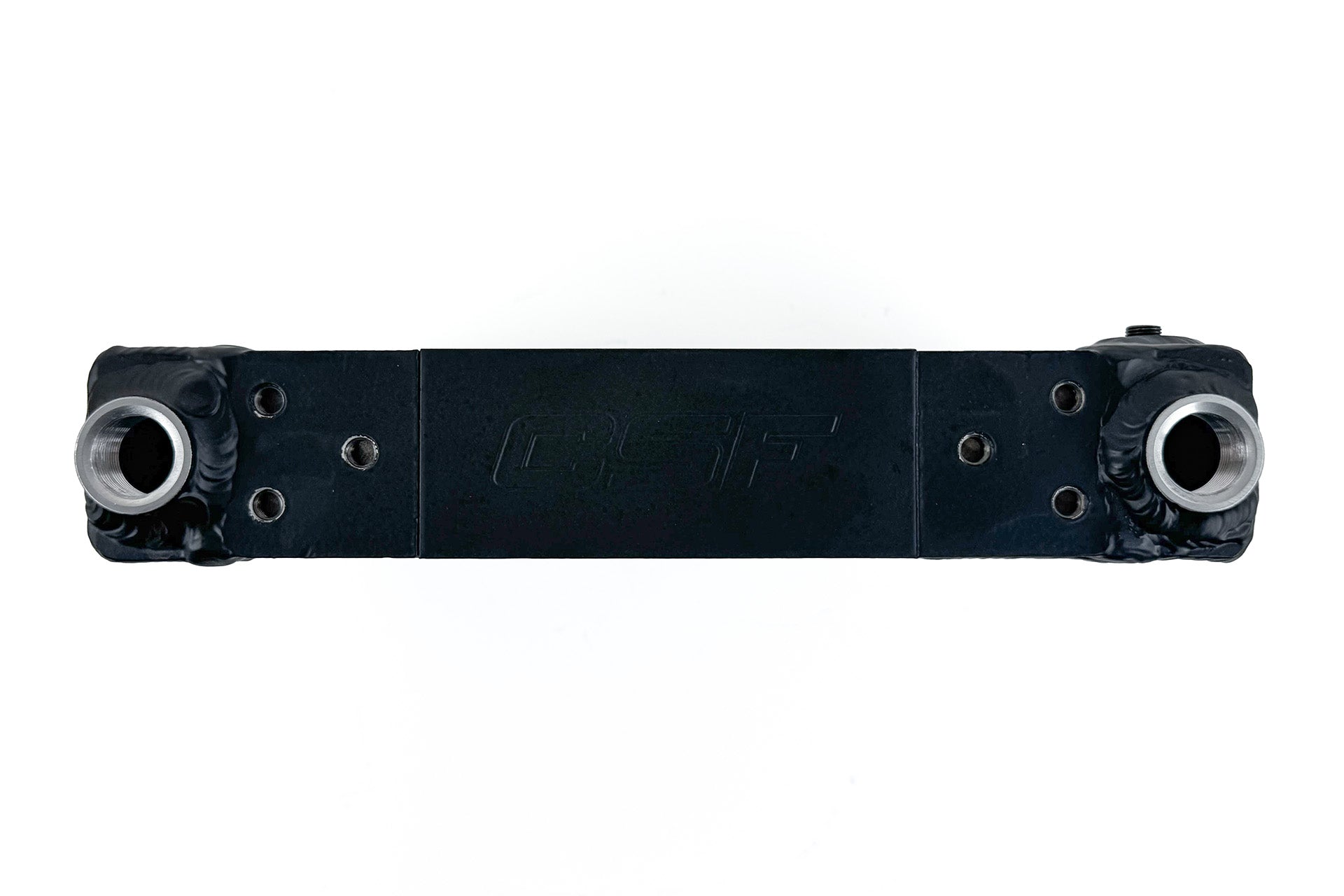

- M22 x 1.5 Inlet/Outlet Connections – TIG-welded for extreme durability. Internal Radius for Maximum Flow and Optimized to also accept AN-16 Connections.

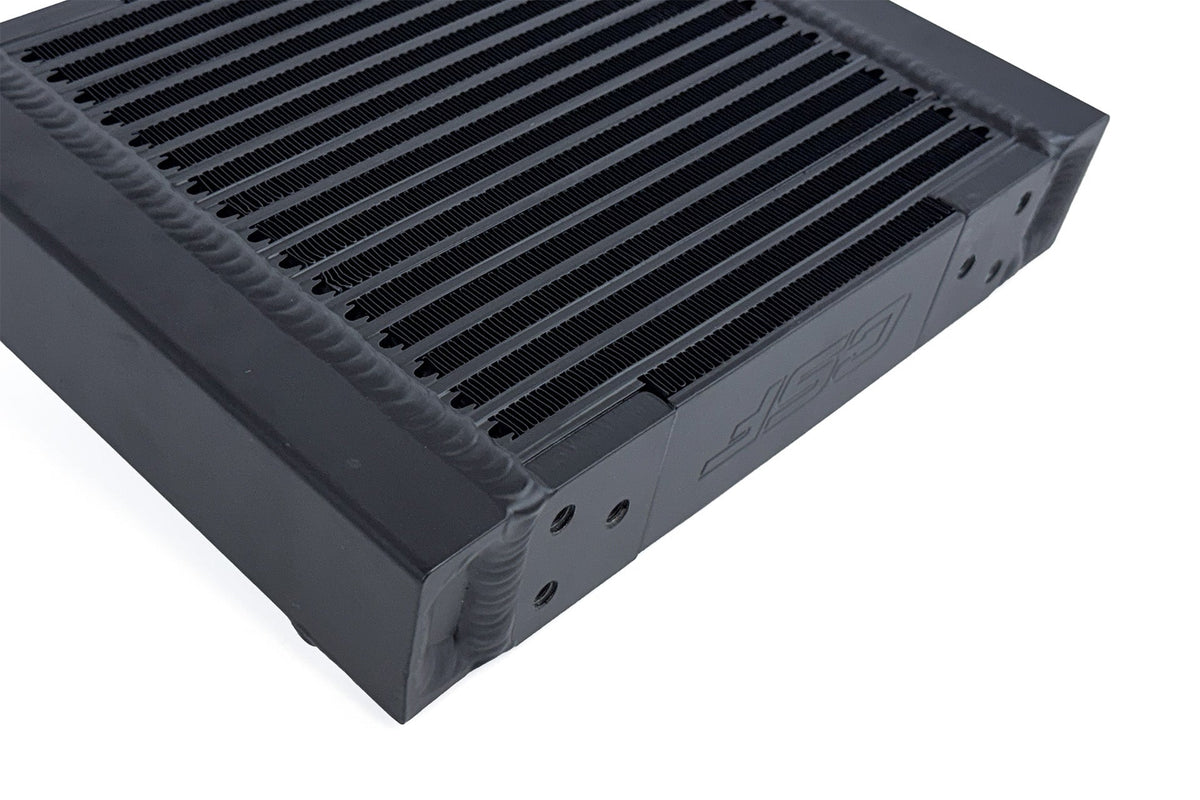

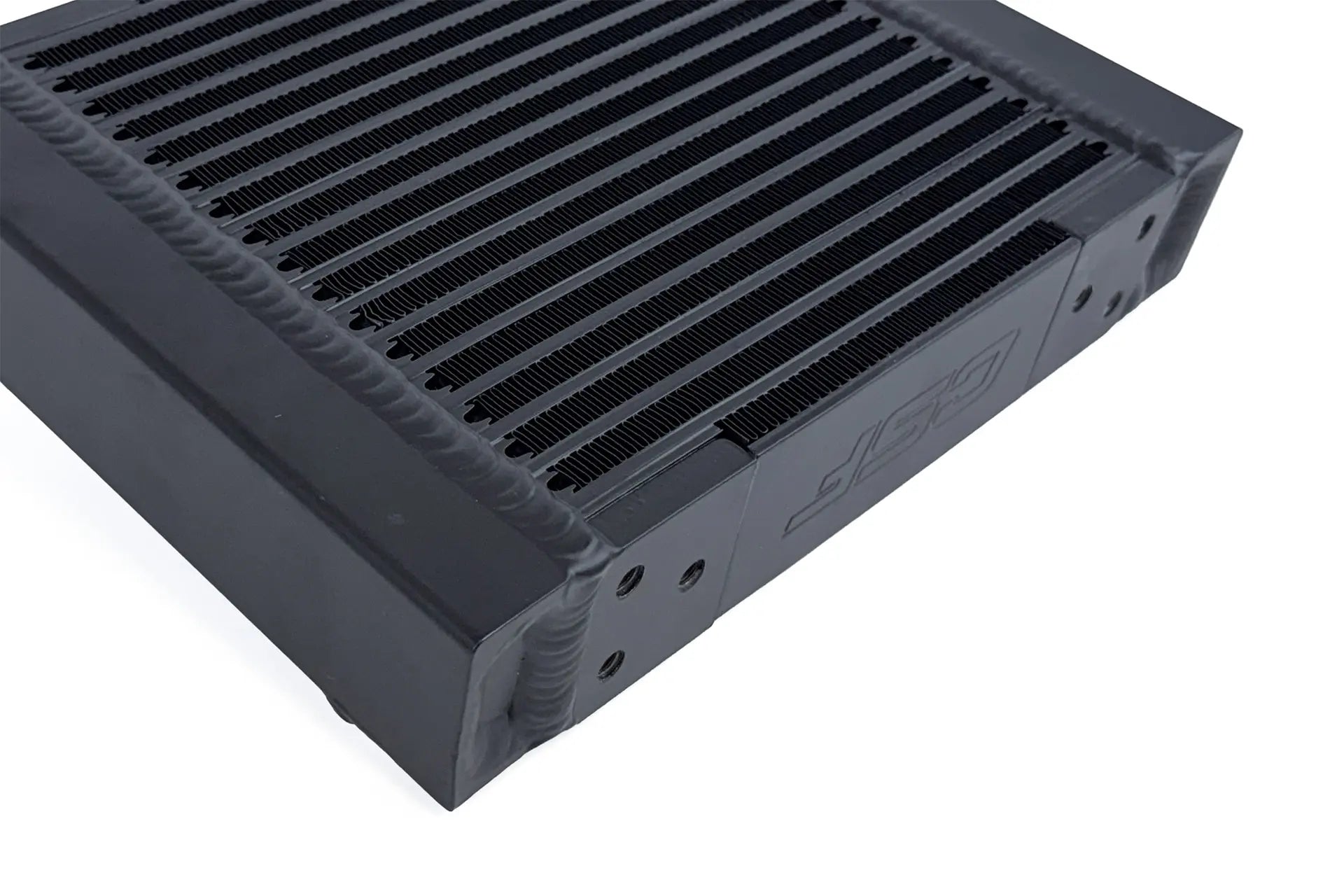

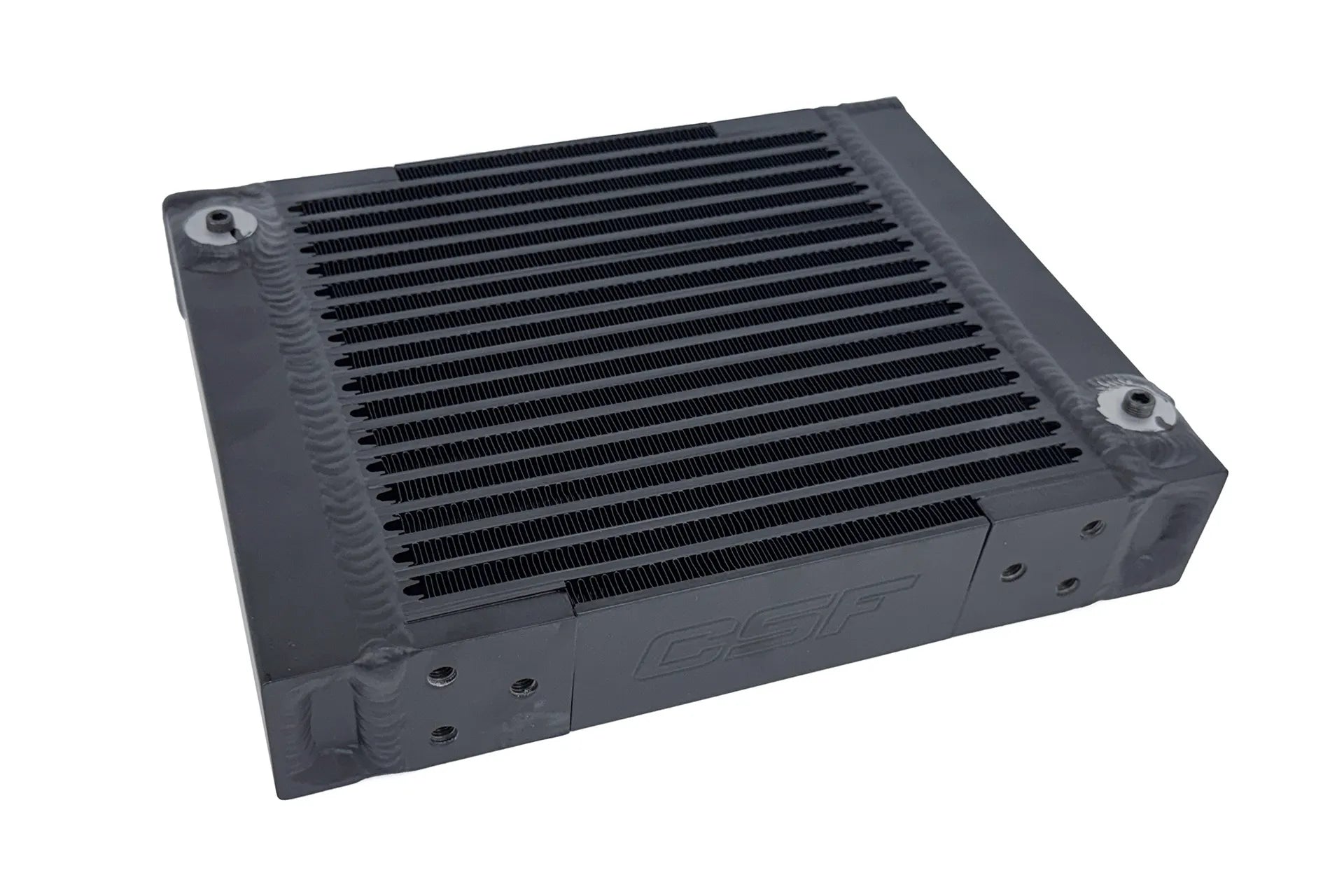

- Triangular Flush Mounting Holes – (M8 x 1.25) on top and bottom – Offers a wide variety of mounting options and easy fabrication of mounting brackets.

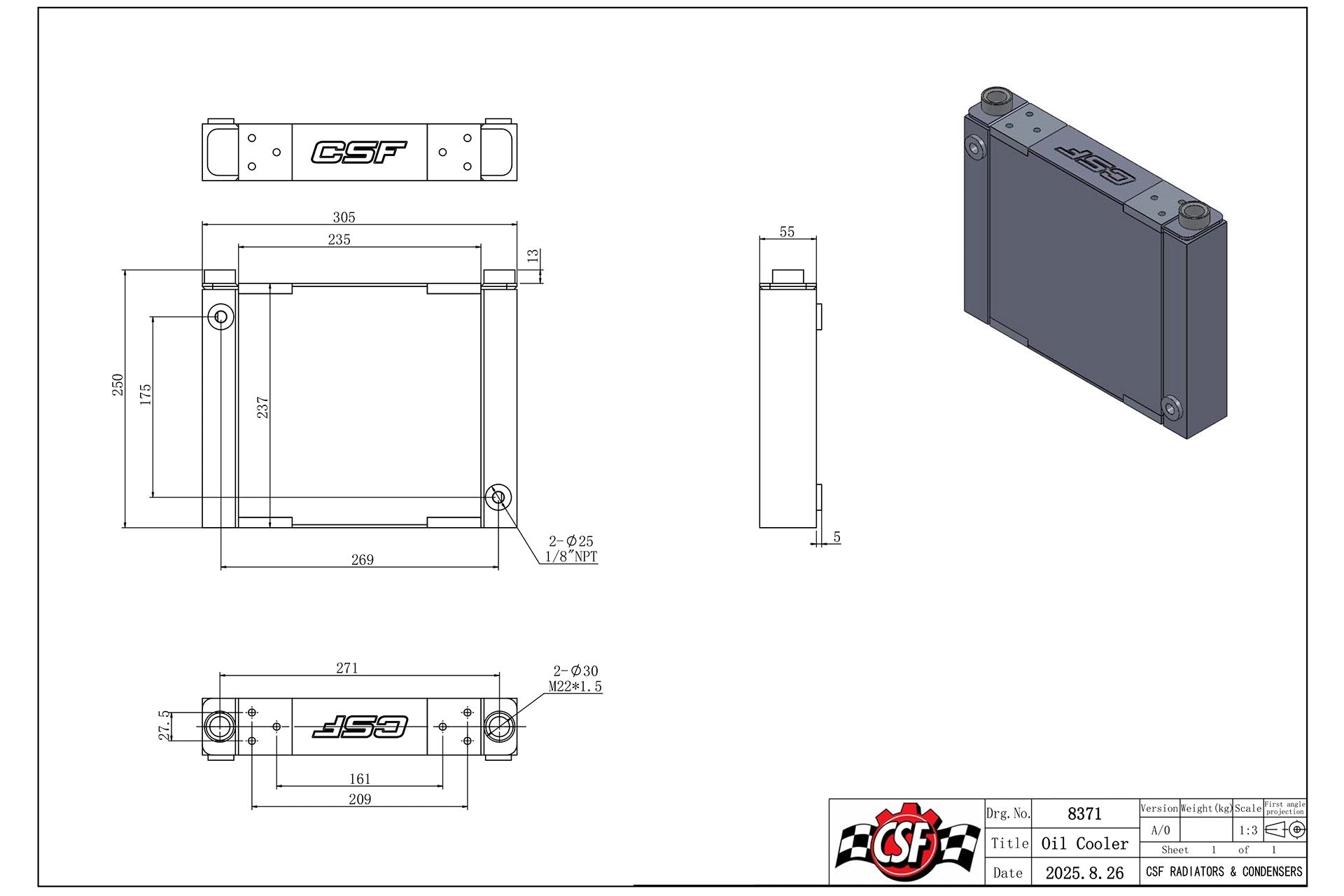

- Overall Dimensions (including fitting bosses): 12.0″ L x 9.85″ H x 2.36″ W (305mm x 250mm x 60mm)
- Core Dimensions: 9.25″ L x 9.33″ H x 2.16″ W (235mm x 237mm x 55mm)

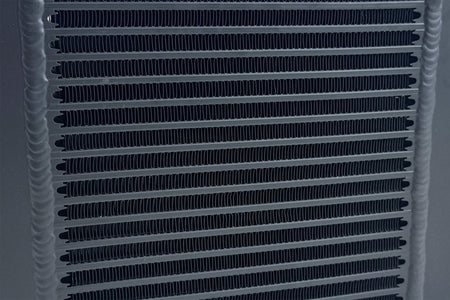

- High Efficiency & Rugged Durability Bar/Plate Design
- “Aero-Flow” Bar Design for Lightweight, Strength, and Maximum Flow
- M22 x 1.5 Inlet/Outlet Connections

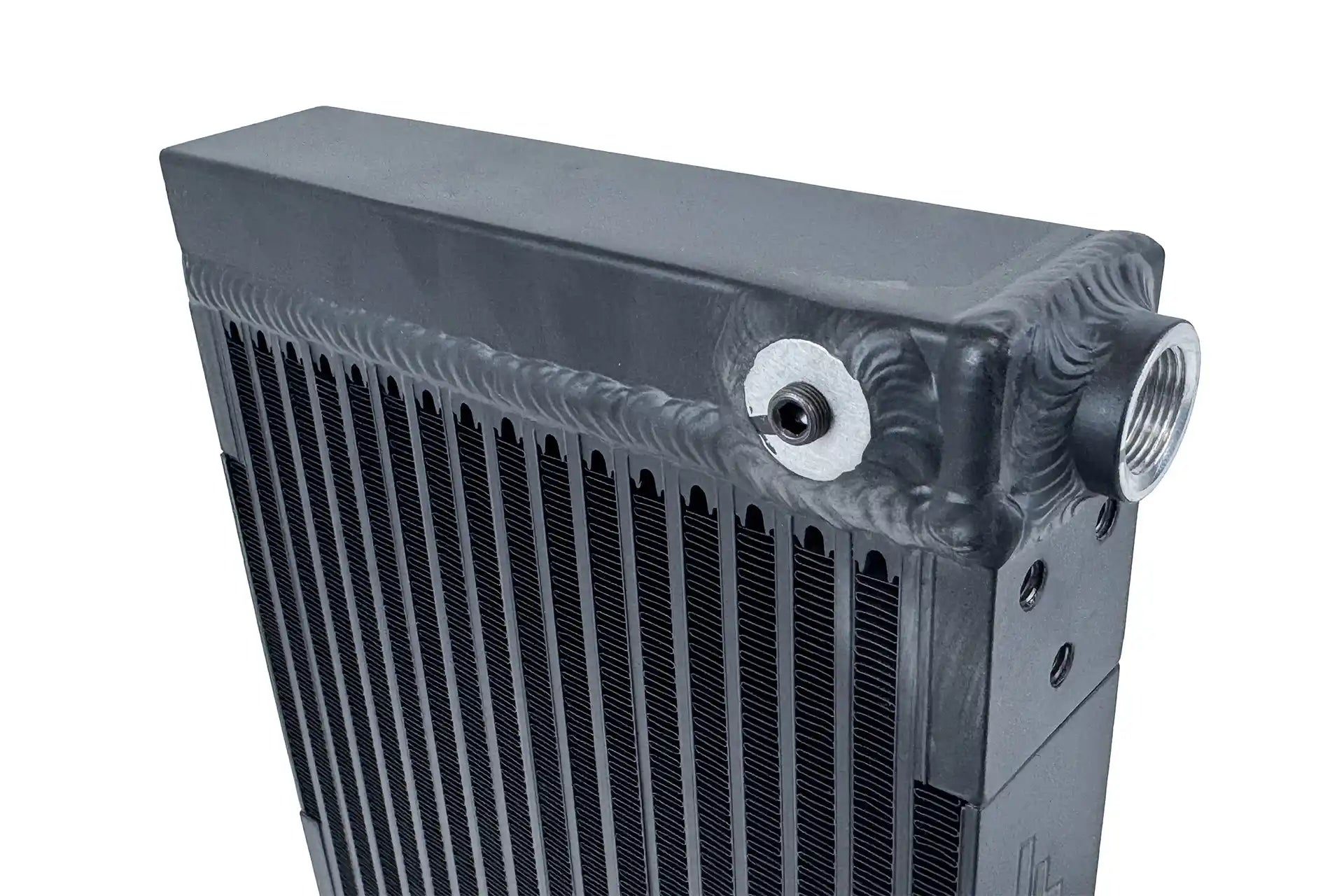

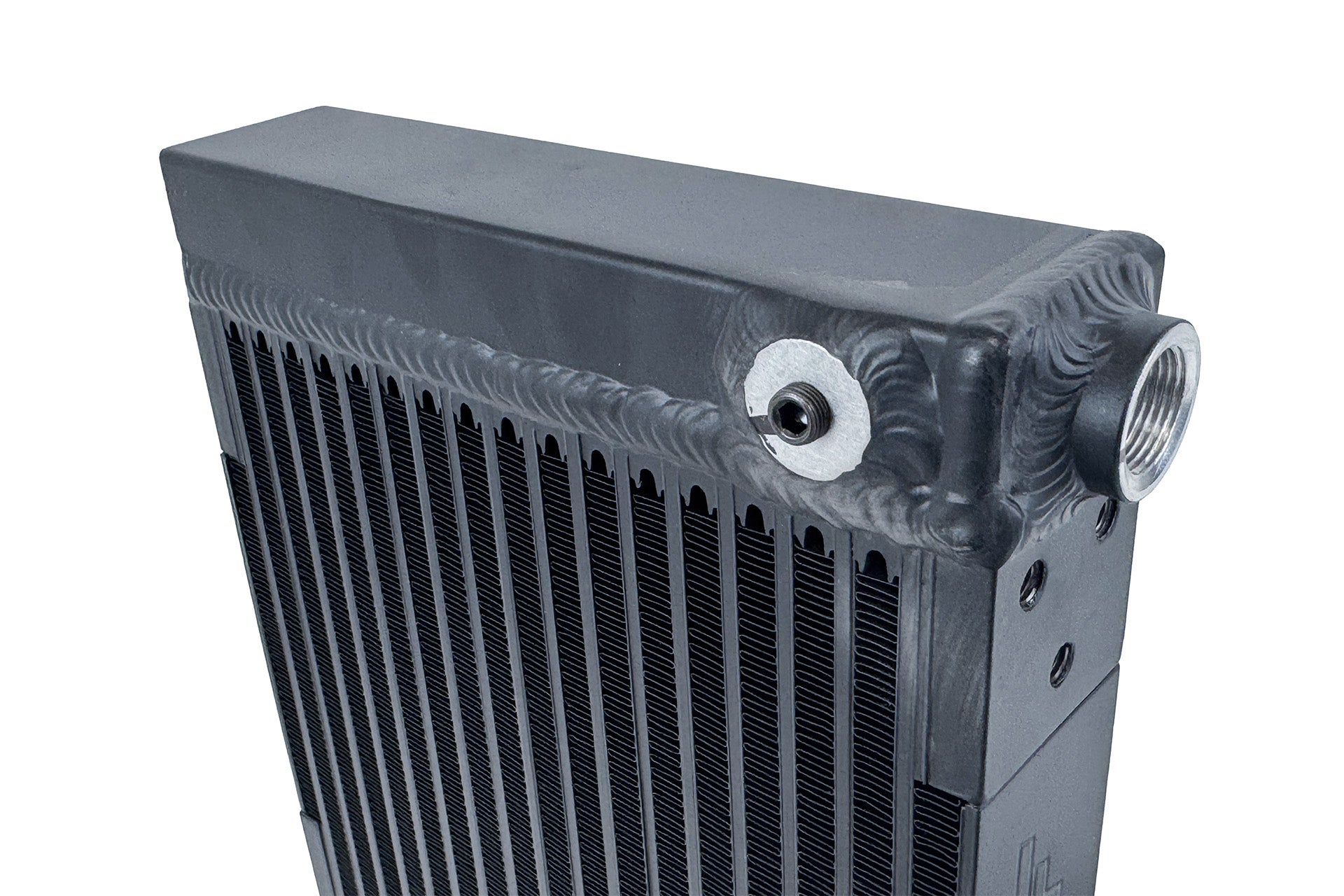

- Two 1/8 NPT Ports on each tank for bleeding or temperature sensors
- Satin Black Finish for Extreme Protection Against Corrosion and Debris
- Pressure Tested at 120psi
- Fluid Capacity: 1.5L (1.6 qt)
FAQs
Is this oil cooler for car suitable for performance upgrades?
Yes, this performance oil cooler is suitable for modified street cars, track builds, and high-performance applications that require improved oil temperature control.
Can this be used as a universal oil cooler kit?
Its versatile design and flexible mounting options are compatible with a wide range of custom and universal oil cooler setups.
What attributes make a performance oil cooler important?
A performance oil cooler helps keep oil temperatures stable and improves overall cooling efficiency.
Key rewards include the following:
-
Better temperature control
-
Less heat build-up
-
More reliable cooling system
-
Better performance in tough conditions
Why choose a CSF oil cooler?
A CSF oil cooler helps keep temperatures under control, reduces excess heat, and supports more reliable engine performance.
