Eventuri Carbon Fibre Strut Brace - BMW G87 M2 | G80 | G81 M3 | G82 | G83 M4 Coupe | Convertible CS | CSL

Product Details

Part Numbers:

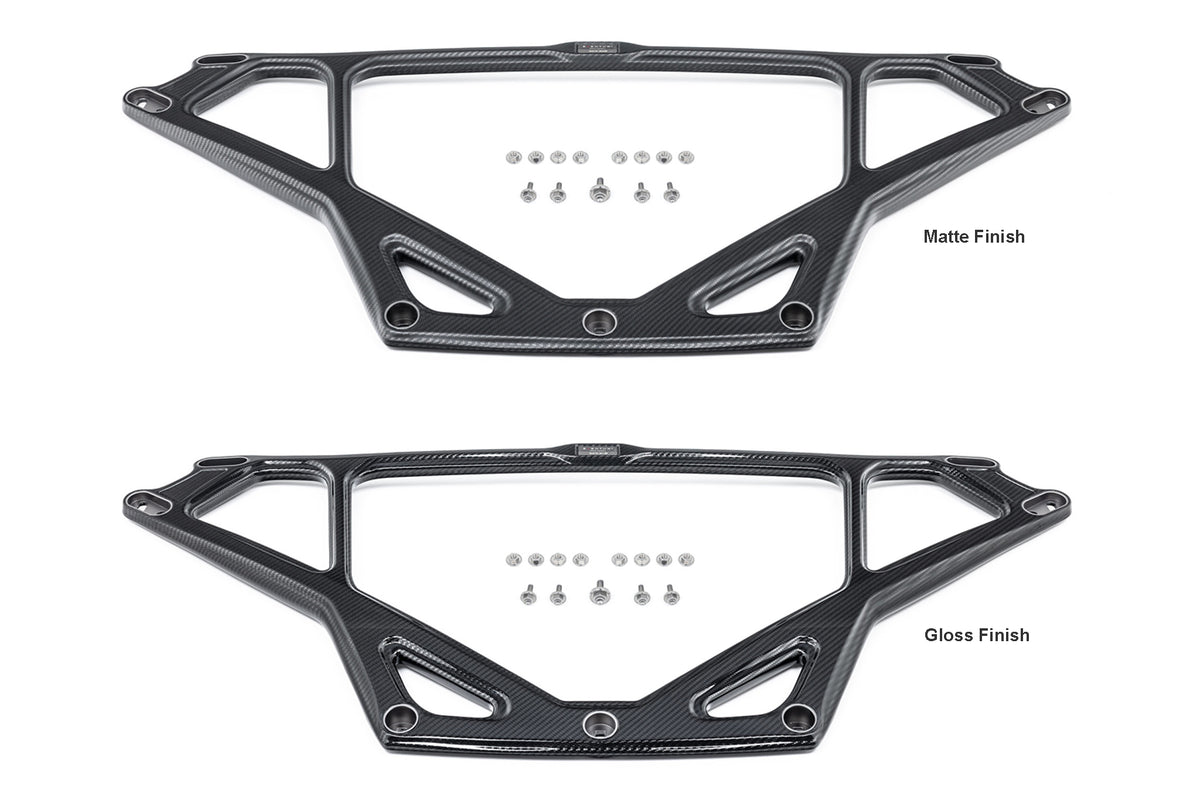

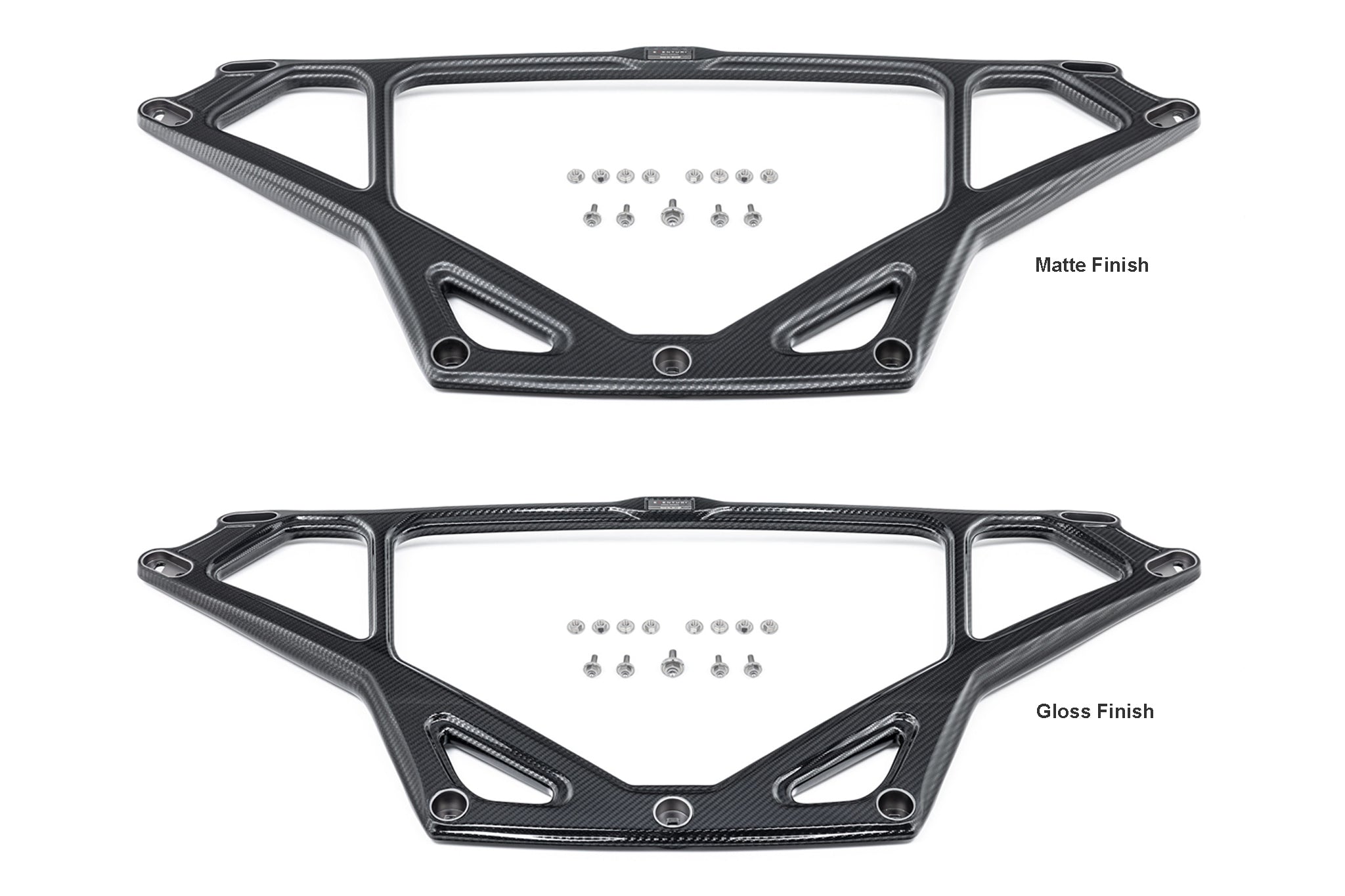

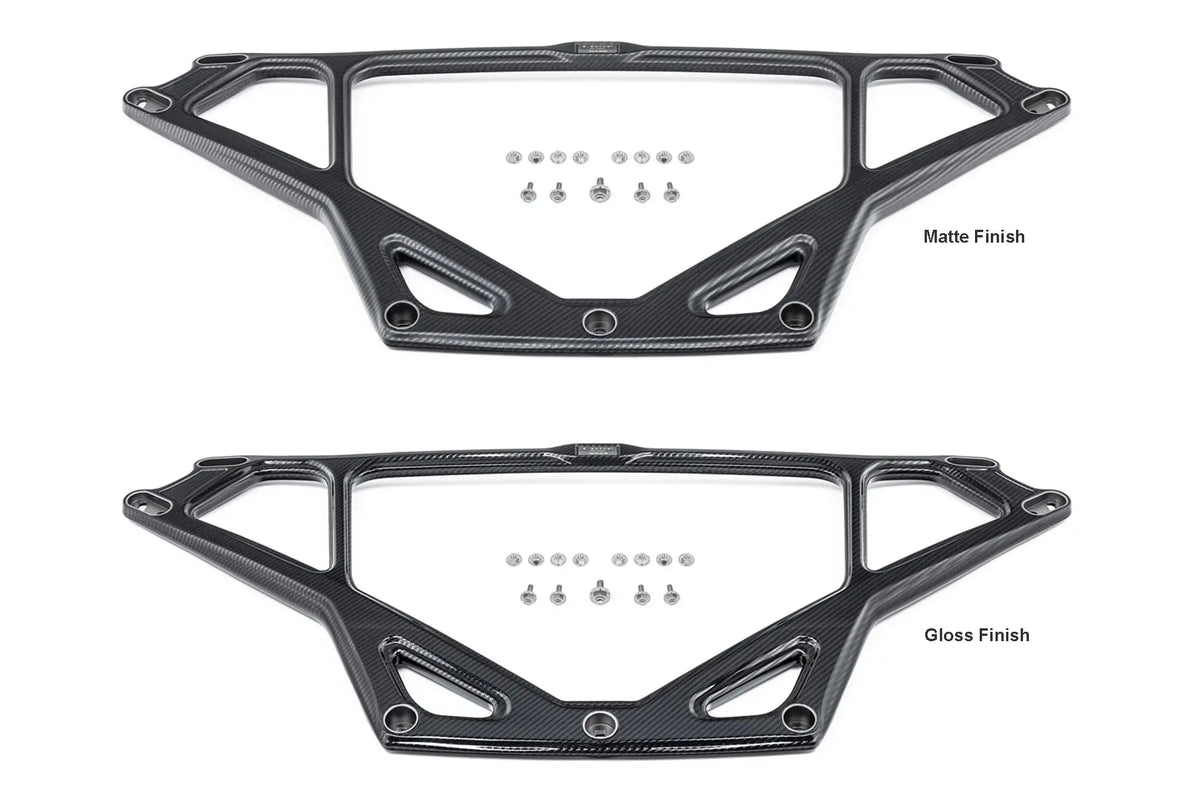

• EVE-S58-CF-STR : BMW G8x M2, M3, M4 Carbon Strut Brace – Gloss Finish
• EVE-S58-CFM-STR : BMW G8x M2, M3, M4 Carbon Strut Brace – Matte Finish

The Eventuri G8x Strut Brace in crafted from prepreg carbon fiber and custom made 316 Stainless Steel hardware. Each set comes with:

• Carbon Fiber Strut Brace
• Integrated Metal Inserts
• 1 x M10 Bolt with Solid Washer
• 4 x M8 Bolts with Solid Washers
• 8 x M8 Nuts with Solid Washers

Performance

LOAD TESTING

We instructed an independent testing company to measure the deflection of our carbon brace and compare that against the OEM CSL brace. Both braces were mounted to a custom made jig to which both tensile and compressive loads were applied. The maximum load applied was 10kN.

G1 to G3 are the deflection measurement points in a horizontal plane. The point G4 is the deflection in a vertical plane at the location of G1.

Summary of results at maximum load:

Point G1 at 4.8kN: Eventuri = 58 microns : OEM = 121 microns
Point G2 at 6kN: Eventuri = 85 microns : OEM = 291 microns
Point G3 at 10kN: Eventuri = 613 microns : OEM = 1291 microns
Point G4 at 10kN: Eventuri = 2503 microns : OEM = 3702 microns

Summary of results at maximum load:

Point G1 at 10kN: Eventuri = 83 microns : OEM = 181 microns
Point G2 at 10kN: Eventuri = 1007 microns : OEM = 1051 microns
Point G3 at 6kN: Eventuri = 396 microns : OEM = 300 microns
Point G4 at 10kN: Eventuri = 4210 microns : OEM = 6922 microns

Two car engine brace samples were received in the laboratory on 10 October 2025 :
The samples were given our laboratory reference numbers E684 & E685. The samples were described as follows:
Sample E684: Aluminium engine brace measuring approximately 1200mm maximum length and 530mm width. The thickness was in the range 16-30mm.

Sample E685: Carbon Fibre engine brace approximately 1200mm total length and 510mm width. The thickness was in the range of 25-35mm.

The samples included several fixings points located in 3 areas. These were on the left and right ends (ends A & B) which included 2 fixing holes at each end while the front side (Side B) included 3 fixing holes.

A test rig was manufactured to accommodate the test samples, such that they were fixed in a horizontal plane to a steel plate which was attached to a rigid test bed. The fixing holes were used to bolt the samples to the steel plate.

The testing was affected by fixing two points while applying a lateral load to the third point. At each point, the load was applied in two directions, a pull test away from the brace and a push test into the brace.

The deflection of the brace was measured at 4 locations.

For each test, the load was applied incrementally up to a load of 10kN. The deflection of the samples was measured at 4 points as.
