H&R TRAK+® Wheel Spacers - 10245414
Do you have questions about this product?
📞 Ask an Expert!H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.
Features
- Improved stance and wider track
- Hub-centric, precision-machined
- Application-specific fitment
- TÜV-certified versions available
Specification
- Thread Size: M12x1,5
- Colour: silver
- Thickness (mm): 5
- Track widening per axle (mm): 10
- Number of holes: 4
- Bolt hole circle Ø (mm): 100
- Registration: with TÜV® certificate
For all cars with 4-hole wheel.
Only valid in Germany
Please note additional information and vehicle-specific technical notes!

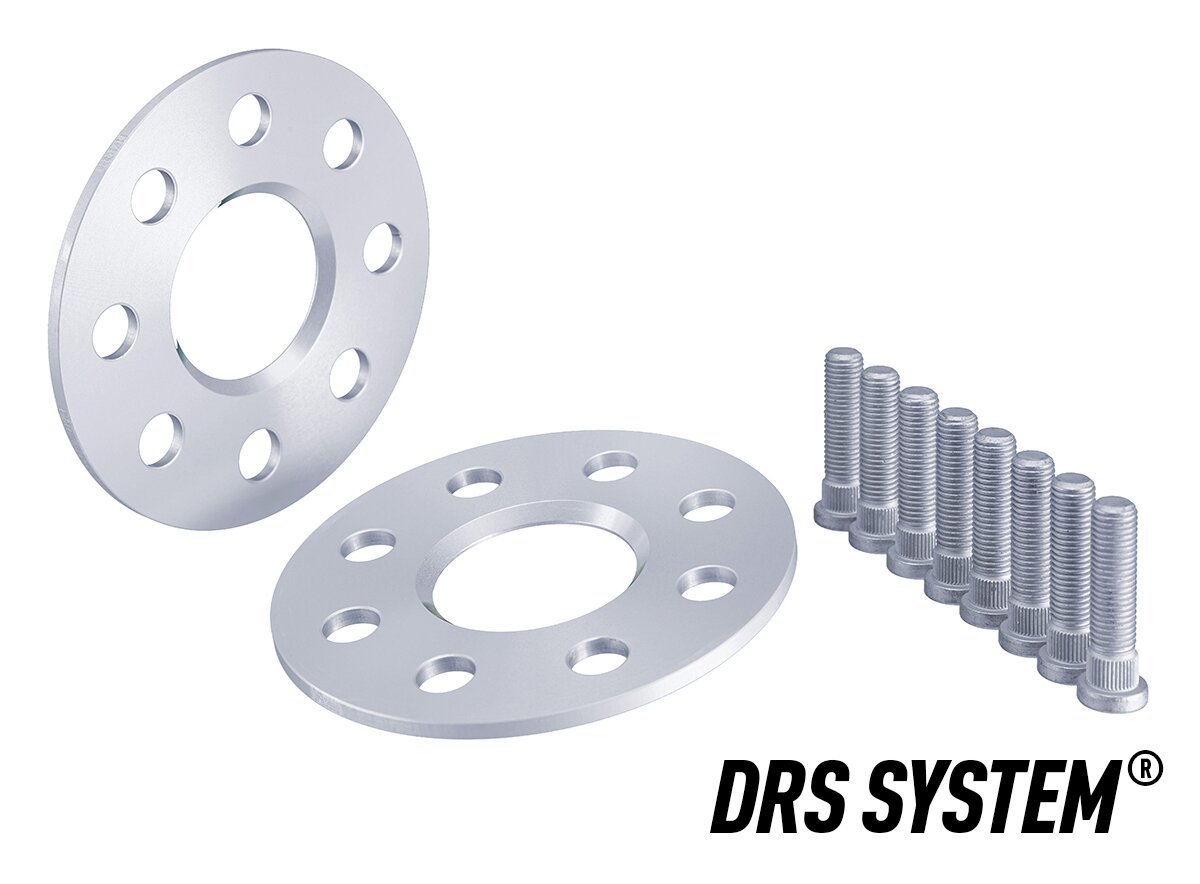

DRS = The fitting of the DRS-System requires the exchange in the wheel flanges or the brake drums, of the existing knurl bolts with the approprirate longer H&R knurl bolts. The longer H&R knurl bolts are supplied. The wheels should the be fitted using the existing wheel nuts provided with the wheels. All fixing-accessories are included!
These spacers without a double-sided centering are only useable for cars with a sufficient length of the centering to be able to center the wheels enough despite the spacer.
Product information (PDF) · Installation manual (PDF)
Vehicle Fitment
| Make | Model | Chassis | Models | Years |
|---|---|---|---|---|
| Toyota | Tercel | AL25 | All models | 1979–1988 |
| Toyota | Carina | T150 | All models | 1983–1988 |
| Toyota | Corolla | E80 | All models | 1983–1989 |
| Toyota | Corolla | AE86 | All models | 1983–1987 |
| Toyota | MR2 | AW11 | All models | 1984–1990 |
| Toyota | Starlet | P7 | All models | 1984–1989 |
| Toyota | Celica | T16 | All models | 1985–1989 |
| Toyota | Carina | T170 | All models | 1987–1992 |
| Toyota | Corolla | E9 | All models | 1987–1997 |
| Toyota | Paseo | EL44 | All models | 1988–1995 |
| Toyota | Celica | T18 | All models | 1989–1994 |
| Toyota | Starlet | EP82 | All models | 1989–1996 |
| Toyota | Corolla | E10 | All models | 1991–1999 |
| Toyota | Corolla | E11 | All models | 1995–2002 |
| Toyota | Paseo | L5 | All models | 1995–1999 |
| Toyota | Starlet | EP91 | All models | 1996–1999 |
| Toyota | MR2 | ZZW30 | All models | 1999–2007 |
| Toyota | Yaris | XP10 | All models | 1999–2005 |
| Toyota | Yaris Verso | XP20 | All models | 1999–2005 |
| Toyota | Corolla | E12 | All models | 2000–2008 |
| Toyota | Corolla Verso | E12 | All models | 2001–2004 |
| Toyota | Corolla | E150 | All models | 2006–2014 |
| Hyundai | Getz | TB | All models | 2002–2010 |
