H&R TRAK+® Wheel Spacers - 1034650

H&R SKU: 1034650
Regular price Price: $79.00
Sale ends in
Days
Hours
Minutes
Seconds
Accepted payment methods
  • American Express
  • Apple Pay
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Do you have questions about this product?

📞 Ask an Expert!

H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.

Features

  • Improved stance and wider track
  • Hub-centric, precision-machined
  • Application-specific fitment
  • TÜV-certified versions available

Specification

  • Thread Size: M12x1,25
  • Colour: silver
  • Number of holes: 4
  • Bolt hole circle Ø (mm): 108
  • Registration: with TÜV® certificate

For all cars with 4-hole wheel.
28.) Only for the rear axle.
Please note additional information and vehicle-specific technical notes!

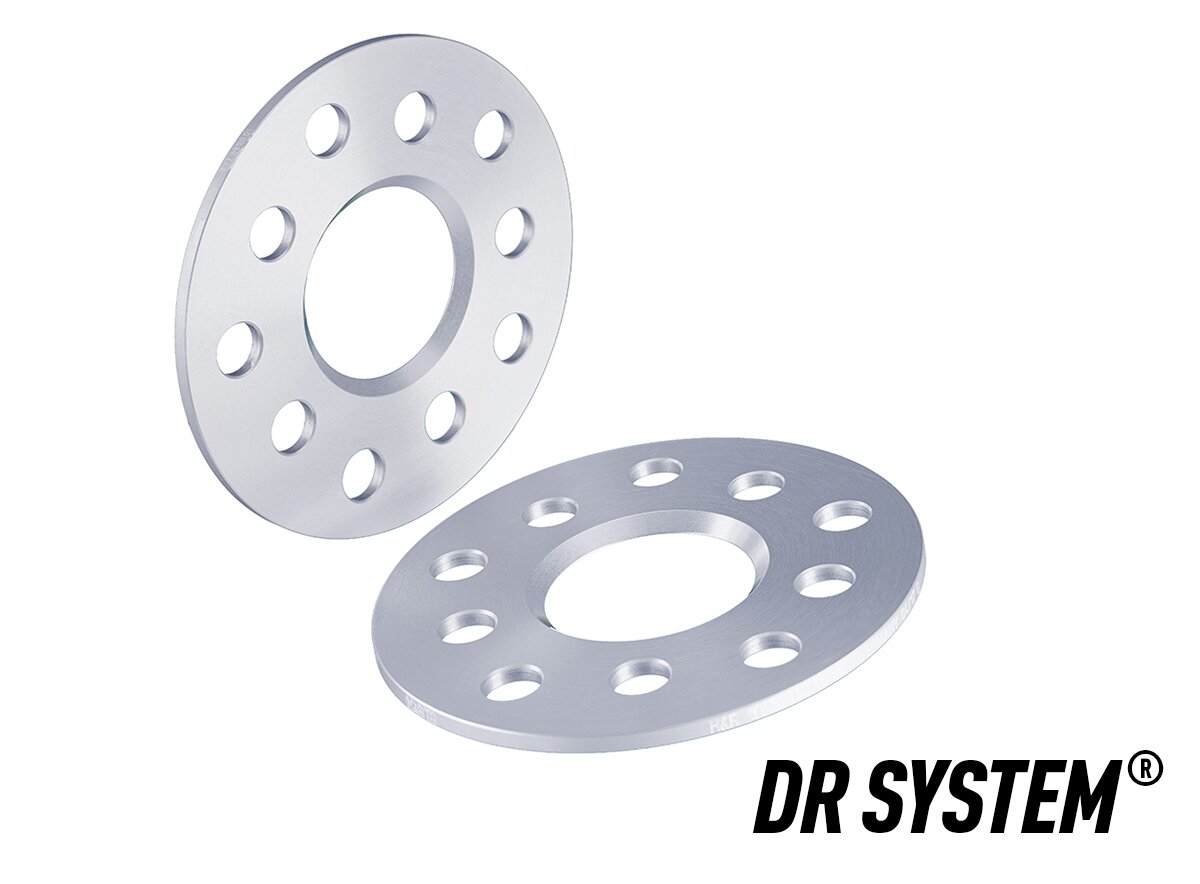

DR = The wheel spacer should be fitted between the wheel and the axial hub using longer bolts not supplied - please order separately. When ordering the longer bolts please state which cone type you require (i.e. taper, round, loose round or flat) and the required extra length. All screws for the DR systems have to be orderded separately.
All DR-Systems require longer wheel-bolts. These have to be ordered separately. When ordering wheel-bolts please follow these guidelines: If possible name the type of the wheel when ordering. New bolts must be longer than the original ones by half of the total Track-widening. For example: With a 30 mm DR-kit you will require bolts that are 15 mm longer than the original bolts. The bold-head must be identical to the existing bolt: Taper 60° Round-head for M12/d24 mm, for M14/d28 mm Round-head for M12/d26 mm (e.g. OE VAG-wheels) Flat-head with disc for CITROEN/PEUGEOT-vehicles M12x1,25 Flat-head for PORSCHE-original-wheels M14x1,5 Safety Guidelines (No. of turns for wheel screws) M12x1,5 = 6,5 turns = approx. 10 mm of load bearing shaft length M12x1,25 = 8,0 turns = approx. 10 mm of load bearing shaft length M12x1,75 = 6,5 turns = approx. 12 mm of load bearing shaft length M14x1,5 = 7,5 turns = approx. 12 mm of load bearing shaft length 1/2"UNF = 8,0 turns = approx. 11 mm of load bearing shaft length Please ensure that the wheel screws do not damage any part of the brake system (ABS sensors etc.) Turn the wheel first by hand and check clearance on the inside (max. tolerance for some vehicles is only 2 mm (RA Mercedes).
These spacers without a double-sided centering are only useable for cars with a sufficient length of the centering to be able to center the wheels enough despite the spacer.

Product information (PDF) · Installation manual (PDF)

Vehicle Fitment

Make Model Chassis Models Years
Saab 900 All All models 1978–1994
Peugeot 205 741A All models 1983–1998
Saab 9000 YS3C All models 1984–1998
Peugeot 309 10C All models 1985–1993
Citroën AX ZA All models 1986–1998
Peugeot 405 15B All models 1987–1999
Citroën ZX N21 All models 1991–1999
Peugeot 106 1C All models 1991–2004
Volvo 850 855 All models 1991–1997
Citroën Xantia X1 All models 1993–2003
Peugeot 306 N3 All models 1993–2003
Saab 900 YS3D All models 1993–1998
Peugeot 406 8C All models 1995–2004
Volvo V70 P80 All models 1995–2000
Citroën Berlingo M59 All models 1996–2011
Citroën Saxo S All models 1996–2004
Peugeot Partner Partner I All models 1996–2015
Volvo S70 874 All models 1996–2000
Citroën Xsara N All models 1997–2005
Peugeot 206 2A/C All models 1998–2026
Citroën Xsara Picasso C All models 1999–2012
Peugeot 307 3A/C All models 2000–2012
Citroën C5 C5 I All models 2001–2004
Citroën C3 C3 I All models 2002–2013
Citroën C2 J All models 2003–2012
Citroën C3 Pluriel HB All models 2003–2026
Citroën C4 L All models 2004–2012
Citroën C5 C5 II All models 2004–2008
Peugeot 1007 KM All models 2005–2026
Citroën C4 Picasso UD All models 2006–2013
Peugeot 207 W All models 2006–2015
Peugeot 308 4A All models 2007–2015
Citroën C5 C5 III All models 2008–2017
Citroën C3 C3 II All models 2009–2026
Citroën C4 N All models 2009–2026
Citroën DS3 S All models 2009–2015
Peugeot 206+ 2L All models 2009–2013
Peugeot 3008 MK1 All models 2009–2016
Peugeot 5008 T87 All models 2009–2017
Citroën DS4 N All models 2011–2015
Peugeot 208 C All models 2012–2019
Citroën C3 C3 III All models 2016–2026
