H&R TRAK+® Wheel Spacers - 20135580

H&R SKU: 20135580
Regular price Price: £109.85
Sale ends in
Days
Hours
Minutes
Seconds
Accepted payment methods
  • American Express
  • Apple Pay
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Do you have questions about this product?

📞 Ask an Expert!

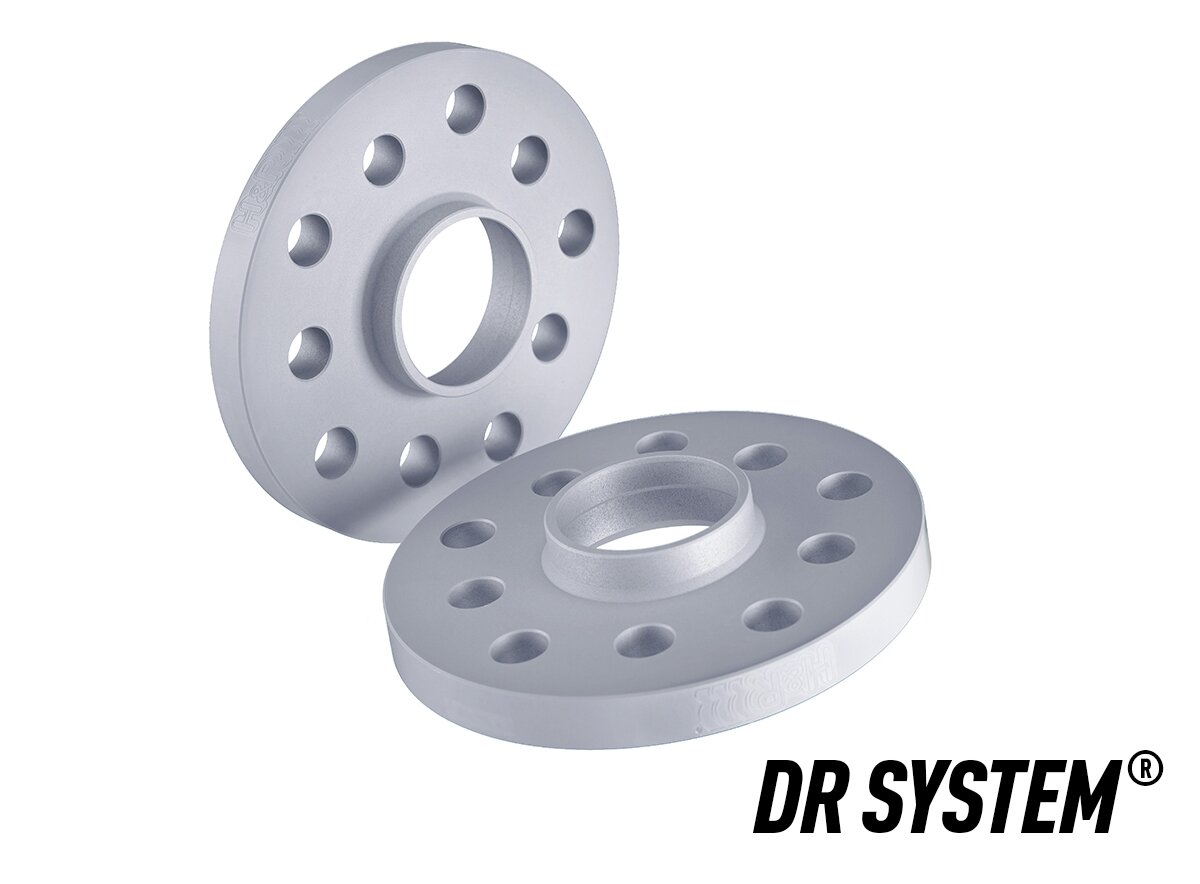

H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.

Features

  • Improved stance and wider track
  • Hub-centric, precision-machined
  • Application-specific fitment
  • TÜV-certified versions available

Specification

  • Thread Size: M12x1,25
  • Colour: silver
  • Thickness (mm): 10
  • Track widening per axle (mm): 20
  • Number of holes: 5
  • Registration: without TÜV® certificate

Please note additional information and vehicle-specific technical notes!
Only valid in Germany
DR = The wheel spacer should be fitted between the wheel and the axial hub using longer bolts not supplied - please order separately. When ordering the longer bolts please state which cone type you require (i.e. taper, round, loose round or flat) and the required extra length. All screws for the DR systems have to be orderded separately.
All DR-Systems require longer wheel-bolts. These have to be ordered separately. When ordering wheel-bolts please follow these guidelines: If possible name the type of the wheel when ordering. New bolts must be longer than the original ones by half of the total Track-widening. For example: With a 30 mm DR-kit you will require bolts that are 15 mm longer than the original bolts. The bold-head must be identical to the existing bolt: Taper 60° Round-head for M12/d24 mm, for M14/d28 mm Round-head for M12/d26 mm (e.g. OE VAG-wheels) Flat-head with disc for CITROEN/PEUGEOT-vehicles M12x1,25 Flat-head for PORSCHE-original-wheels M14x1,5 Safety Guidelines (No. of turns for wheel screws) M12x1,5 = 6,5 turns = approx. 10 mm of load bearing shaft length M12x1,25 = 8,0 turns = approx. 10 mm of load bearing shaft length M12x1,75 = 6,5 turns = approx. 12 mm of load bearing shaft length M14x1,5 = 7,5 turns = approx. 12 mm of load bearing shaft length 1/2"UNF = 8,0 turns = approx. 11 mm of load bearing shaft length Please ensure that the wheel screws do not damage any part of the brake system (ABS sensors etc.) Turn the wheel first by hand and check clearance on the inside (max. tolerance for some vehicles is only 2 mm (RA Mercedes).
Note 18b: For the usage of these spacers certain specific technical requierements need to be fulfilled! Please check product information document TRAK_HINWEISE.pdf note 18b!

Product information (PDF) · Installation manual (PDF)

Vehicle Fitment

Make Model Chassis Models Years
Lancia Delta 831 All models 1979–1994
Alfa Romeo 164 164 All models 1987–1998
Alfa Romeo Spider 916 All models 1994–2005
Citroën Evasion 22 All models 1994–2002
Fiat Ulysse 220 All models 1994–2002
Lancia Kappa 838 All models 1994–2001
Peugeot 806 221 All models 1994–2002
Alfa Romeo GTV 916 All models 1995–2005
Lancia Zeta 22 All models 1995–2003
Alfa Romeo 156 932 All models 1997–2006
Alfa Romeo 166 936 All models 1998–2007
Alfa Romeo 147 937 All models 2000–2010
Citroën C8 EA All models 2002–2026
Fiat Ulysse 179AX All models 2002–2011
Lancia Phedra 179 All models 2002–2010
Peugeot 807 E All models 2002–2026
