H&R TRAK+® Wheel Spacers 10mm (20mm per axle), 5x112, 66.5mm bore, Silver for Mercedes - 20556659

H&R SKU: 20556659
Regular price Price: £137.57
Sale ends in
Days
Hours
Minutes
Seconds
Accepted payment methods
  • American Express
  • Apple Pay
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Do you have questions about this product?

📞 Ask an Expert!

H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.

Features

  • Improved stance and wider track
  • Hub-centric, precision-machined
  • Application-specific fitment
  • TÜV-certified versions available

Specification

  • Thread Size: M14x1,5
  • Colour: silver
  • Track widening per axle (mm): 20
  • Number of holes: 5
  • Bolt hole circle Ø (mm): 112
  • Registration: with TÜV® certificate

Please note additional information and vehicle-specific technical notes!
Only for the front axle.

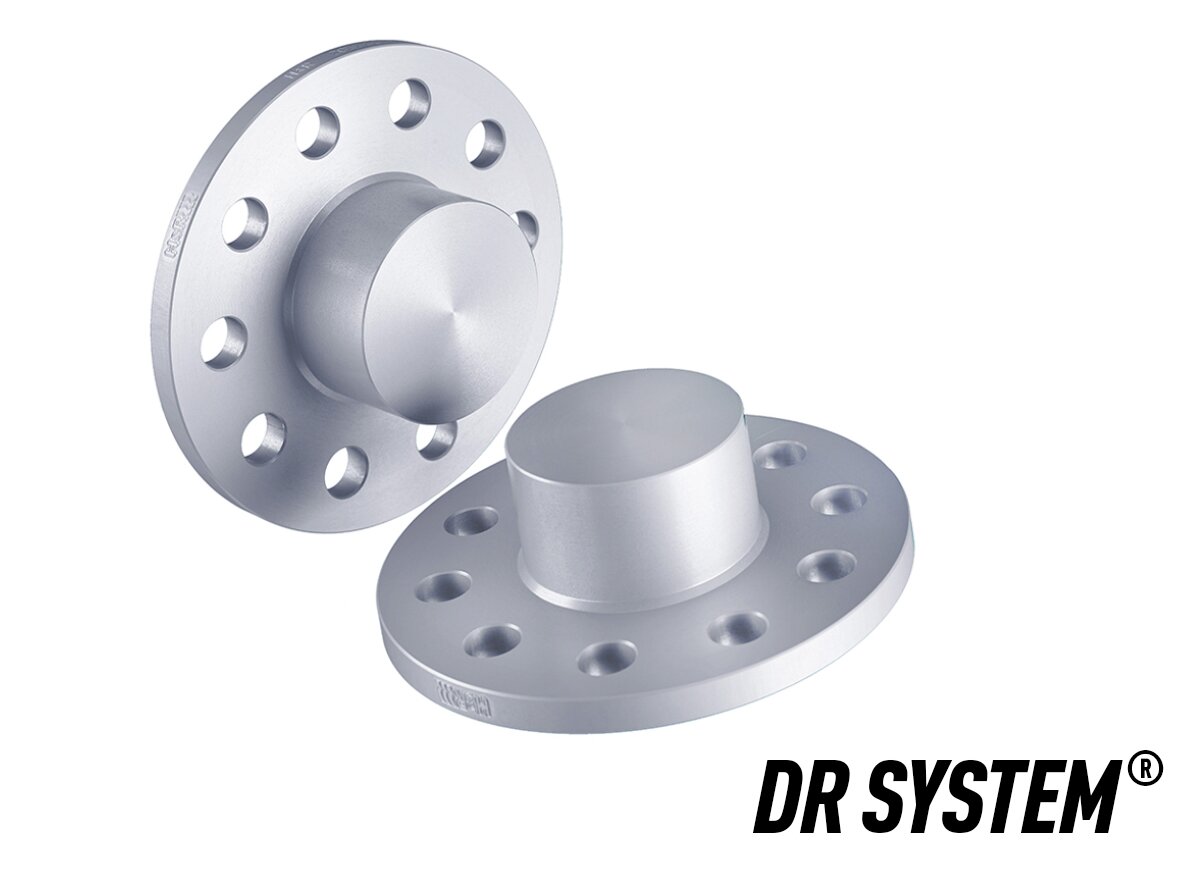

DR = The wheel spacer should be fitted between the wheel and the axial hub using longer bolts not supplied - please order separately. When ordering the longer bolts please state which cone type you require (i.e. taper, round, loose round or flat) and the required extra length. All screws for the DR systems have to be orderded separately.
All DR-Systems require longer wheel-bolts. These have to be ordered separately. When ordering wheel-bolts please follow these guidelines: If possible name the type of the wheel when ordering. New bolts must be longer than the original ones by half of the total Track-widening. For example: With a 30 mm DR-kit you will require bolts that are 15 mm longer than the original bolts. The bold-head must be identical to the existing bolt: Taper 60° Round-head for M12/d24 mm, for M14/d28 mm Round-head for M12/d26 mm (e.g. OE VAG-wheels) Flat-head with disc for CITROEN/PEUGEOT-vehicles M12x1,25 Flat-head for PORSCHE-original-wheels M14x1,5 Safety Guidelines (No. of turns for wheel screws) M12x1,5 = 6,5 turns = approx. 10 mm of load bearing shaft length M12x1,25 = 8,0 turns = approx. 10 mm of load bearing shaft length M12x1,75 = 6,5 turns = approx. 12 mm of load bearing shaft length M14x1,5 = 7,5 turns = approx. 12 mm of load bearing shaft length 1/2"UNF = 8,0 turns = approx. 11 mm of load bearing shaft length Please ensure that the wheel screws do not damage any part of the brake system (ABS sensors etc.) Turn the wheel first by hand and check clearance on the inside (max. tolerance for some vehicles is only 2 mm (RA Mercedes).
Note 18b: For the usage of these spacers certain specific technical requierements need to be fulfilled! Please check product information document TRAK_HINWEISE.pdf note 18b!

Product information (PDF) · Installation manual (PDF)

Vehicle Fitment

Make Model Chassis Models Years
Mercedes-Benz CL C215 All models 1999–2006
Mercedes-Benz C-Class W203 All models 2000–2007
Mercedes-Benz C-Class CL203 All models 2001–2008
Mercedes-Benz C-Class S203 All models 2001–2007
Mercedes-Benz SL R230 All models 2001–2012
Mercedes-Benz CLK A209 All models 2002–2010
Mercedes-Benz CLK C209 All models 2002–2009
Mercedes-Benz E-Class W211 All models 2002–2008
Mercedes-Benz E-Class S211 All models 2003–2009
Mercedes-Benz CLS C219 All models 2004–2010
Mercedes-Benz SLK R171 All models 2004–2011
Mercedes-Benz S-Class W221 All models 2005–2013
Mercedes-Benz CL C216 All models 2006–2013
Mercedes-Benz E-Class S212 All models 2009–2016
Mercedes-Benz E-Class W212 All models 2009–2016
Mercedes-Benz CLS C218 All models 2011–2017
Mercedes-Benz CLS X218 All models 2012–2017
