H&R TRAK+® Wheel Spacers - 30234571

H&R SKU: 30234571
Price: £125.65
Accepted payment methods
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Do you have questions about this product?

📞 Ask an Expert!
Description Want to get this fitted? Shipping Policy

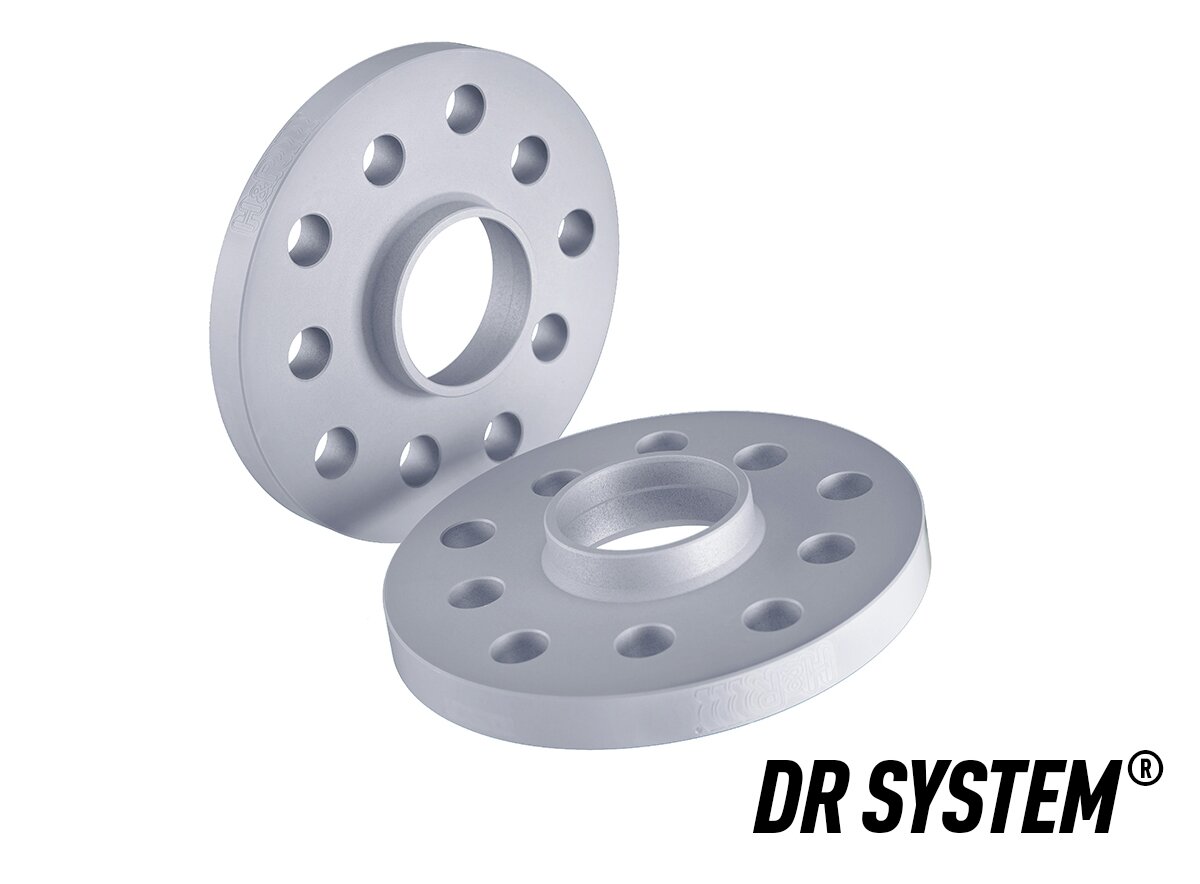

H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.

Features

  • Improved stance and wider track
  • Hub-centric, precision-machined
  • Application-specific fitment
  • TÜV-certified versions available

Specification

  • Thread Size: M12x1,5
  • Colour: silver
  • Thickness (mm): 15
  • Track widening per axle (mm): 30
  • Number of holes: 4
  • Registration: with TÜV® certificate

Please note additional information and vehicle-specific technical notes!
DR = The wheel spacer should be fitted between the wheel and the axial hub using longer bolts not supplied - please order separately. When ordering the longer bolts please state which cone type you require (i.e. taper, round, loose round or flat) and the required extra length. All screws for the DR systems have to be orderded separately.
For all cars with 4-hole wheel.
All DR-Systems require longer wheel-bolts. These have to be ordered separately. When ordering wheel-bolts please follow these guidelines: If possible name the type of the wheel when ordering. New bolts must be longer than the original ones by half of the total Track-widening. For example: With a 30 mm DR-kit you will require bolts that are 15 mm longer than the original bolts. The bold-head must be identical to the existing bolt: Taper 60° Round-head for M12/d24 mm, for M14/d28 mm Round-head for M12/d26 mm (e.g. OE VAG-wheels) Flat-head with disc for CITROEN/PEUGEOT-vehicles M12x1,25 Flat-head for PORSCHE-original-wheels M14x1,5 Safety Guidelines (No. of turns for wheel screws) M12x1,5 = 6,5 turns = approx. 10 mm of load bearing shaft length M12x1,25 = 8,0 turns = approx. 10 mm of load bearing shaft length M12x1,75 = 6,5 turns = approx. 12 mm of load bearing shaft length M14x1,5 = 7,5 turns = approx. 12 mm of load bearing shaft length 1/2"UNF = 8,0 turns = approx. 11 mm of load bearing shaft length Please ensure that the wheel screws do not damage any part of the brake system (ABS sensors etc.) Turn the wheel first by hand and check clearance on the inside (max. tolerance for some vehicles is only 2 mm (RA Mercedes).
For vehicles from AUDI type›89, B4 and C4/S4 with a disc-brake at the rear axle the centering stub might be too long for the 30 mm-Systems. If that case type Part. No. 40234572 (4-hole) and Part. No. 4055571 (5-hole) must be used.

Product information (PDF) · Installation manual (PDF)

Vehicle Fitment

Make Model Chassis Models Years
BMW 3 Series E30 315, 316, 316i, 318i, 318is, 320i, 320is, 323i, 324d, 324td, 325e, 325i 1982–1994
Audi 80 B2 811, 813, 814, 819, 853 All models 1978–1987
Audi Coupe B2 81, 855, 856 All models 1980–1988
Audi 100 C3 443, 444 All models 1982–1991
Audi 100 C3 Avant 445, 446 All models 1982–1990
Audi 200 C3 447, 448 All models 1983–1991
Audi 200 C3 Avant 447, 448 All models 1983–1991
Audi 80 B3 893, 894, 8A2 All models 1986–2026
Audi 90 B3 893, 894, 8A2 All models 1987–1991
Audi Coupe B3 89, 8B3 All models 1988–1996
Audi 80 B4 8C2 All models 1991–1994
Audi 80 B4 Avant 8C5 All models 1991–1996
Audi Cabriolet B3 8G7 All models 1991–2000
Volkswagen Golf I 17 All models 1974–1984
Volkswagen Scirocco 53 All models 1974–1980
Volkswagen Polo 86 All models 1975–1981
Volkswagen Jetta I 16 All models 1978–1984
Volkswagen Golf I Cabriolet 155 All models 1979–1993
Volkswagen Passat B2 32B All models 1979–1989
Volkswagen Passat B2 Variant 33B All models 1980–1988
Volkswagen Scirocco 53B All models 1980–1992
Volkswagen Polo Coupe 86C, 80 All models 1981–1994
Volkswagen Polo II 86C, 80 All models 1981–1994
Volkswagen Golf II 19E, 1G1 All models 1983–1992
Volkswagen Jetta II 19E, 1G2, 165 All models 1984–1992
Volkswagen Polo Classic 86C, 80 All models 1985–1994
Volkswagen Corrado 53I All models 1988–1995
Volkswagen Passat B3 / B4 3A2, 35I All models 1988–1996
Volkswagen Passat B3 / B4 Variant 3A5, 35I All models 1988–1997
Volkswagen Golf III 1H1 All models 1991–1997
Volkswagen Vento 1H2 All models 1991–1998
Volkswagen Golf III Cabriolet 1E7 All models 1993–1998
Volkswagen Golf III Variant 1H5 All models 1993–1999
Volkswagen Polo 6N1 All models 1994–1999
Volkswagen Polo III 6N1 All models 1994–1999
Volkswagen Polo III Classic 6V2 All models 1995–2006
Volkswagen Polo Variant 6V5 All models 1997–2001
Volkswagen Golf IV Cabriolet 1E7 All models 1998–2002
Volkswagen Lupo I 6X1, 6E1 All models 1998–2005
Volkswagen Polo 6N2 All models 1999–2001
Seat Toledo I 1L2 All models 1991–1999
Seat Cordoba 6K1, 6K2 All models 1993–2002
Seat Ibiza II 6K1 All models 1993–2002
Seat Cordoba Vario 6K5 All models 1996–2002
Seat Arosa 6H1 All models 1997–2004
Skoda Favorit Forman 785 All models 1988–1995
Skoda Favorit 781 All models 1989–1994
Skoda Favorit Pick-UP 787 All models 1992–1997
Skoda Felicia I 6U1 All models 1994–1998
Skoda Felicia I 6U5 All models 1995–1998
Skoda Felicia II 6U5 All models 1996–2001
Skoda Felicia II 6U1 All models 1998–2001
