📞 Ask an Expert!H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.
Features
- Improved stance and wider track
- Hub-centric, precision-machined
- Application-specific fitment
- TÜV-certified versions available
Specification
- Thread Size: M12x1,5
- Colour: silver
- Thickness (mm): 20
- Track widening per axle (mm): 40
- Number of holes: 4
- Bolt hole circle Ø (mm): 100
- Registration: with TÜV® certificate
Please note additional information and vehicle-specific technical notes!
1These vehicles have different shoulder diameters in the studs depending on model and axle. The DRS Installation-Information must be carefully followed. If exchange of the studs is required, please call for further information.
Depending on model/axle and year, MAZDA vehicles have different diameters in the shoulder of the studs. Please see the following list in which you will find notes for the measurements of the studs required for the installation. The Systems shown in the catalog will be supplied with shoulder-bolts d=13.00, if you need d=14,85 please add a 1, at the end of the Part. No. See table No.2 beneath. Information is subject to change without prior notice. DRS-Systems/required DRS-shoulder Vehicle Model Shoulder Front axle Shoulder Rear Axle 323 BG small 3,00 mm small 13,00 mm up to chas.-no. 753743 up to chas.-no. 773461 323 BG large 14,85 mm large 14,85 mm from chas.-no. 753744 from chas.-no. 773462 323 GT/GTR small 13,00 mm large 14,85 mm 323 BA/BJ large 14,85 mm small 13,00 mm DEMIO DW small 13,00 mm small 13,00 mm 626 GE/GEA small 13,00 mm small 13,00 mm 626 GF/GV/GW small 13,00 mm large 13,00 mm MX 3 EC large 14,85 mm small 13,00 mm MX 5 NA small 13,00 mm small 13,00 mm up to chas.-no. 133232 large 14,25 mm from chas.-no. MX 5 NB small 13,00 mm large 14,25 mm MX 6 GE6 small 13,00 mm small 13,00 mm up to chas.-no. 101861 up to chas.-no. 101861 large 14,25 mm small 12,85 mm from chas.-no. 101862 from chas.-no. 101862 XEDOS 6/9 CA/TA small 13,00 mm small 13,00 mm

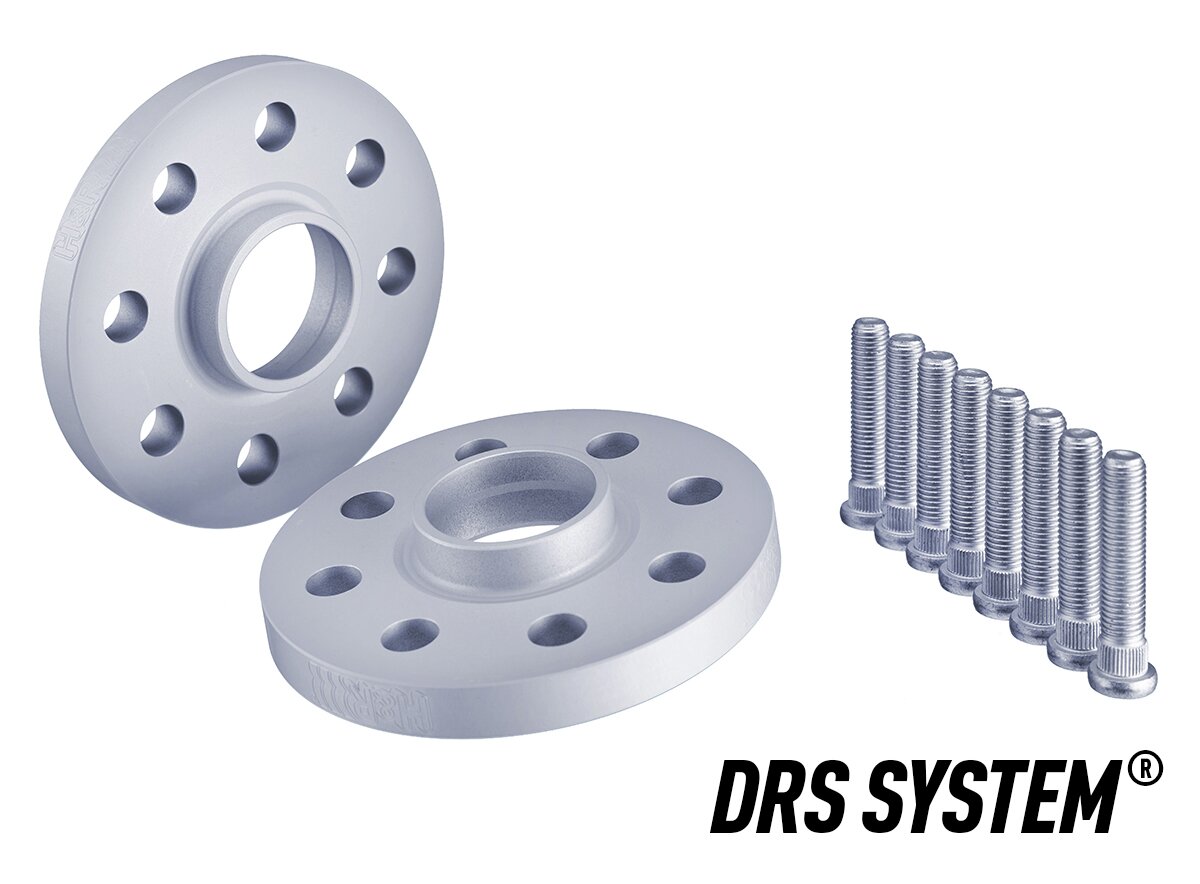

DRS = The fitting of the DRS-System requires the exchange in the wheel flanges or the brake drums, of the existing knurl bolts with the approprirate longer H&R knurl bolts. The longer H&R knurl bolts are supplied. The wheels should the be fitted using the existing wheel nuts provided with the wheels. All fixing-accessories are included!
For export use only.
