H&R TRAK+® Wheel Spacers - 4045650

H&R SKU: 4045650
Regular price Price: £133.56
Sale ends in
Days
Hours
Minutes
Seconds
Accepted payment methods
  • American Express
  • Apple Pay
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Do you have questions about this product?

📞 Ask an Expert!

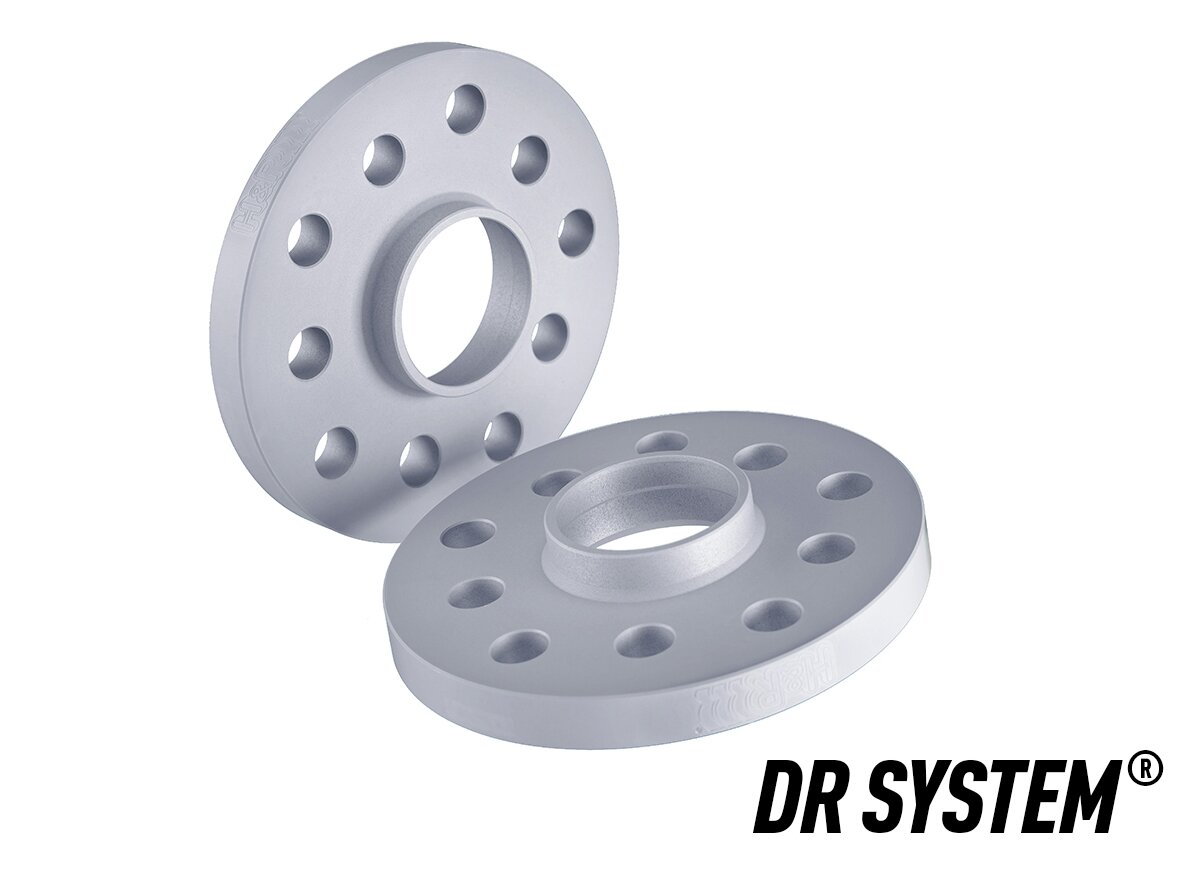

H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.

Features

  • Improved stance and wider track
  • Hub-centric, precision-machined
  • Application-specific fitment
  • TÜV-certified versions available

Specification

  • Thread Size: M12x1,5
  • Colour: silver
  • Thickness (mm): 20
  • Track widening per axle (mm): 40
  • Number of holes: 5
  • Bolt hole circle Ø (mm): 110
  • Registration: with TÜV® certificate

For cars with 5-hole wheels.
Please note additional information and vehicle-specific technical notes!
DR = The wheel spacer should be fitted between the wheel and the axial hub using longer bolts not supplied - please order separately. When ordering the longer bolts please state which cone type you require (i.e. taper, round, loose round or flat) and the required extra length. All screws for the DR systems have to be orderded separately.
All DR-Systems require longer wheel-bolts. These have to be ordered separately. When ordering wheel-bolts please follow these guidelines: If possible name the type of the wheel when ordering. New bolts must be longer than the original ones by half of the total Track-widening. For example: With a 30 mm DR-kit you will require bolts that are 15 mm longer than the original bolts. The bold-head must be identical to the existing bolt: Taper 60° Round-head for M12/d24 mm, for M14/d28 mm Round-head for M12/d26 mm (e.g. OE VAG-wheels) Flat-head with disc for CITROEN/PEUGEOT-vehicles M12x1,25 Flat-head for PORSCHE-original-wheels M14x1,5 Safety Guidelines (No. of turns for wheel screws) M12x1,5 = 6,5 turns = approx. 10 mm of load bearing shaft length M12x1,25 = 8,0 turns = approx. 10 mm of load bearing shaft length M12x1,75 = 6,5 turns = approx. 12 mm of load bearing shaft length M14x1,5 = 7,5 turns = approx. 12 mm of load bearing shaft length 1/2"UNF = 8,0 turns = approx. 11 mm of load bearing shaft length Please ensure that the wheel screws do not damage any part of the brake system (ABS sensors etc.) Turn the wheel first by hand and check clearance on the inside (max. tolerance for some vehicles is only 2 mm (RA Mercedes).

Product information (PDF) · Installation manual (PDF)

Vehicle Fitment

Make Model Chassis Models Years
Opel Omega A All models 1986–1994
Opel Senator B All models 1987–1993
Opel Vectra A All models 1988–1995
Vauxhall Cavalier A All models 1988–1995
Opel Calibra A All models 1989–1997
Vauxhall Calibra A All models 1990–1997
Saab 900 YS3D All models 1993–1998
Opel Omega B All models 1994–2003
Opel Vectra B All models 1995–2003
Saab 9-5 YS3E All models 1997–2009
Opel Astra G All models 1998–2009
Vauxhall Astra G All models 1998–2005
Opel Zafira A All models 1999–2005
Opel Corsa C All models 2000–2009
Opel Speedster E01 All models 2000–2006
Vauxhall Corsa C All models 2000–2007
Opel Vectra C All models 2002–2009
Saab 9-3 YS3F All models 2002–2015
Opel Signum Z03 All models 2003–2008
Opel Astra H All models 2004–2014
Vauxhall Astra H All models 2004–2012
Fiat Croma 194 All models 2005–2011
Opel Zafira B All models 2005–2015
Opel Corsa D All models 2006–2014
Vauxhall Corsa D All models 2006–2014
Alfa Romeo Giulietta 940 All models 2010–2020
Opel Meriva B All models 2010–2017
Vauxhall Meriva B All models 2010–2017
Jeep Cherokee KL All models 2013–2026
Jeep Compass MP All models 2016–2026
