H&R TRAK+® Wheel Spacers 20mm (40mm per axle), 4x114.3, 66.2mm bore, Silver for Nissan Almera N16 (2000 - Present) + 2 more models - 4064662

H&R SKU: 4064662
Regular price Price: $175.00
Sale ends in
Days
Hours
Minutes
Seconds
Accepted payment methods
  • American Express
  • Apple Pay
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Do you have questions about this product?

📞 Ask an Expert!

H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.

Features

  • Improved stance and wider track
  • Hub-centric, precision-machined
  • Application-specific fitment
  • TÜV-certified versions available

Specification

  • Thread Size: M12x1,25
  • Colour: silver
  • Thickness (mm): 20
  • Track widening per axle (mm): 40
  • Number of holes: 4
  • Bolt hole circle Ø (mm): 114,3
  • Registration: without TÜV® certificate

Please note additional information and vehicle-specific technical notes!
Depending on model/axle and year, NISSAN vehicles have different diameters in the shoulder of the studs. Please see the following list in which you will find notes for the measurements of the shoulder studs required for the installation. The systems shown in the catalog will be supplied with shoulder-bolts d= 14,25, if you need d=12,85 please add a 1, at the end of the Part. No. See table No. 1 beneath. MICRA K10 MA10+12 small 12,85 mm small 12,85 mm fr. year 12/88 MA10+12 big 14,25 mm big 14,25 mm MICRA K11 CG10+13 DE big 14,25 mm big 14,25 mm SUNNY N14 2 WD without ABS big 14,25 mm big 14,25 mm 2 WD with ABS big 14,25 mm big 14,25 mm 4 WD all big 14,25 mm big 14,25 mm SUNNY Y 1 OL without ABS big 14,25 mm big 12,85 mm with ABS+4x4 big 14,25 mm big 14,25 mm 100 NX B13 GA 16 + SR 20 DE big 14,25 mm big 14,25 mm ALMERA N15 all big 14,25 mm big 14,25 mm PRIMERA P10 2 WD big 14,25 mm big 14,25 mm 4x4 big 14,25 mm big 14,25 mm PRIMERA W10 up to 1/95 small 12,85 mm small 12,85 mm up to 4/96 small 12,85 mm big 14,25 mm from 5/96 big 14,25 mm big 14,25 mm PRIMERA P11 all big 14,25 mm big 14,25 mm 200 SX S13 CA 18 T big 12,85 mm small 12,85 mm 200 SX S14 SR 20 DET big 14,25 mm small 12,85 mm 300 ZX Z32 VG 30 DTT big 14,25 mm small 12,85 mm MAXIMA J30 up to 10/91 small 12,85 mm small 12,85 mm up to 12/94 big 14,25 mm small 12,85 mm from 01/95 big 14,25 mm big 14,25 mm MAXIMA A32 VQ20+30DE big 14,25 mm big 14,25 mm SERENA C23 all big 14,25 mm small 12,85 mm

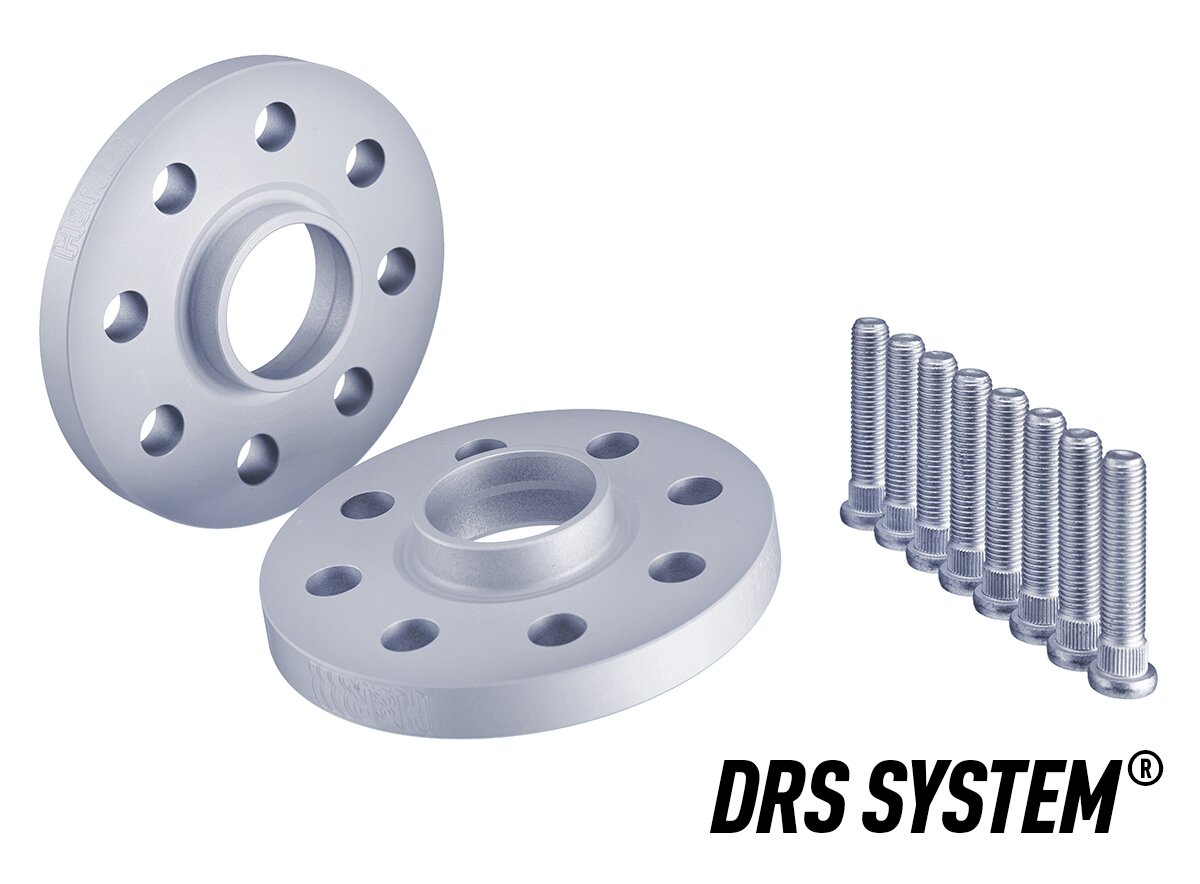

DRS = The fitting of the DRS-System requires the exchange in the wheel flanges or the brake drums, of the existing knurl bolts with the approprirate longer H&R knurl bolts. The longer H&R knurl bolts are supplied. The wheels should the be fitted using the existing wheel nuts provided with the wheels. All fixing-accessories are included!
For export use only.

Product information (PDF) · Installation manual (PDF)

Vehicle Fitment

Make Model Chassis Models Years
Nissan Bluebird U11 All models 1983–1990
Nissan Bluebird T12 All models 1985–1992
Nissan Primera P10 All models 1990–1998
Nissan Primera P11 All models 1996–2002
Nissan Almera N16 All models 2000–2026
