H&R TRAK+® Wheel Spacers 3mm (6mm per axle), 5x100/112, 57.1mm bore, Black for Audi, VW, Seat & Skoda - B06255570

H&R SKU: B06255570
Regular price Price: $79.00
Sale ends in
Days
Hours
Minutes
Seconds
Accepted payment methods
  • American Express
  • Apple Pay
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Do you have questions about this product?

📞 Ask an Expert!

H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.

Features

  • Improved stance and wider track
  • Hub-centric, precision-machined
  • Application-specific fitment
  • TÜV-certified versions available

Specification

  • Thread Size: M14x1,5
  • Colour: black
  • Track widening per axle (mm): 6
  • Number of holes: 5
  • Registration: with TÜV® certificate

Please note additional information and vehicle-specific technical notes!
Not usable with steel-rims!
Only for the front axle.

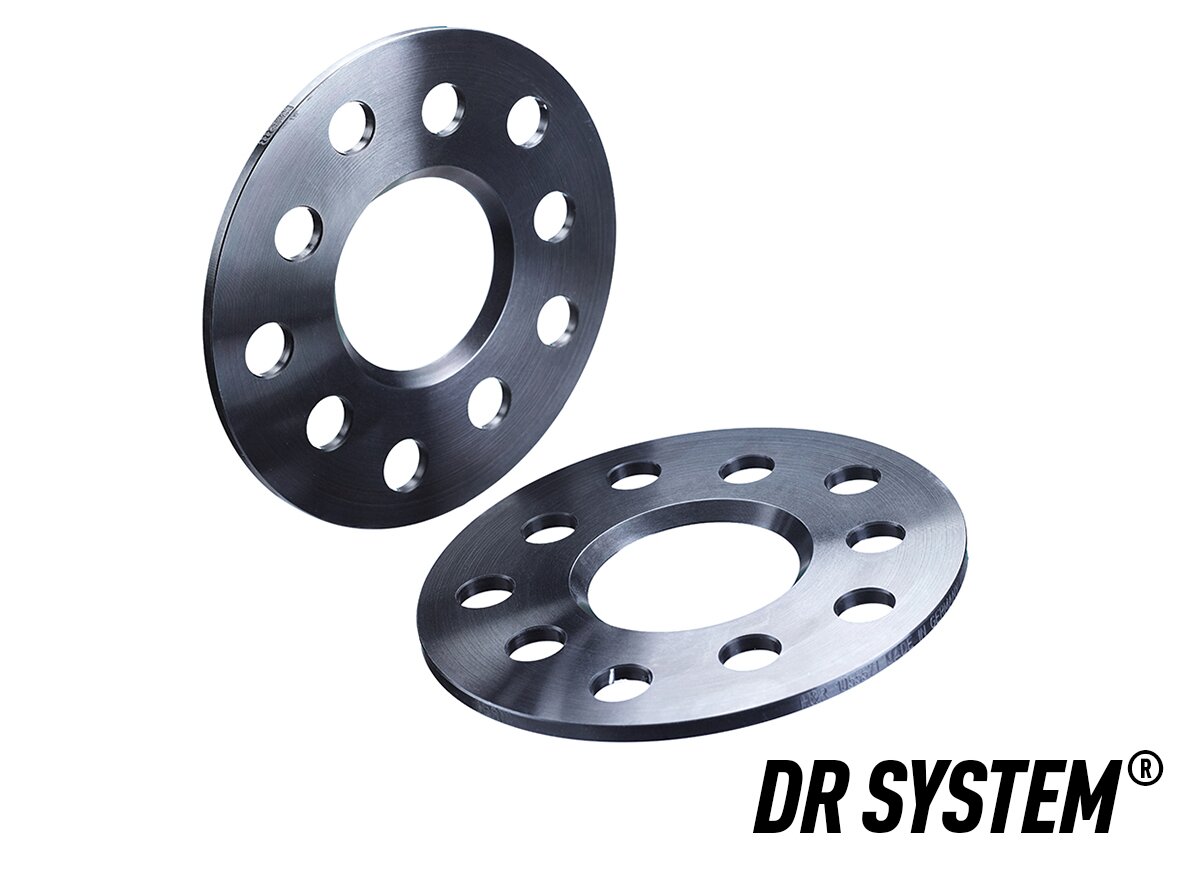

DR = The wheel spacer should be fitted between the wheel and the axial hub using longer bolts not supplied - please order separately. When ordering the longer bolts please state which cone type you require (i.e. taper, round, loose round or flat) and the required extra length. All screws for the DR systems have to be orderded separately.
All DR-Systems require longer wheel-bolts. These have to be ordered separately. When ordering wheel-bolts please follow these guidelines: If possible name the type of the wheel when ordering. New bolts must be longer than the original ones by half of the total Track-widening. For example: With a 30 mm DR-kit you will require bolts that are 15 mm longer than the original bolts. The bold-head must be identical to the existing bolt: Taper 60° Round-head for M12/d24 mm, for M14/d28 mm Round-head for M12/d26 mm (e.g. OE VAG-wheels) Flat-head with disc for CITROEN/PEUGEOT-vehicles M12x1,25 Flat-head for PORSCHE-original-wheels M14x1,5 Safety Guidelines (No. of turns for wheel screws) M12x1,5 = 6,5 turns = approx. 10 mm of load bearing shaft length M12x1,25 = 8,0 turns = approx. 10 mm of load bearing shaft length M12x1,75 = 6,5 turns = approx. 12 mm of load bearing shaft length M14x1,5 = 7,5 turns = approx. 12 mm of load bearing shaft length 1/2"UNF = 8,0 turns = approx. 11 mm of load bearing shaft length Please ensure that the wheel screws do not damage any part of the brake system (ABS sensors etc.) Turn the wheel first by hand and check clearance on the inside (max. tolerance for some vehicles is only 2 mm (RA Mercedes).
These spacers without a double-sided centering are only useable for cars with a sufficient length of the centering to be able to center the wheels enough despite the spacer.

Product information (PDF) · Installation manual (PDF)

Vehicle Fitment

Make Model Chassis Models Years
Skoda Fabia 5J All models 2006–2014
Volkswagen Polo 6R All models 2009–2022
Audi A1 8X All models 2010–2018
Seat Toledo NH All models 2012–2019
Skoda Rapid NH All models 2012–2022
Skoda Fabia NJ All models 2014–2022
Seat Arona KJ7 All models 2017–2026
Volkswagen Polo AW All models 2017–2026
Audi A1 GB All models 2018–2026
Skoda Fabia PJ3 All models 2021–2026
Volkswagen Taigo CS1 All models 2021–2026
