H&R TRAK+® Wheel Spacers - B0655571

H&R SKU: B0655571
Regular price Price: £70.40
Sale ends in
Days
Hours
Minutes
Seconds
Accepted payment methods
  • American Express
  • Apple Pay
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Do you have questions about this product?

📞 Ask an Expert!

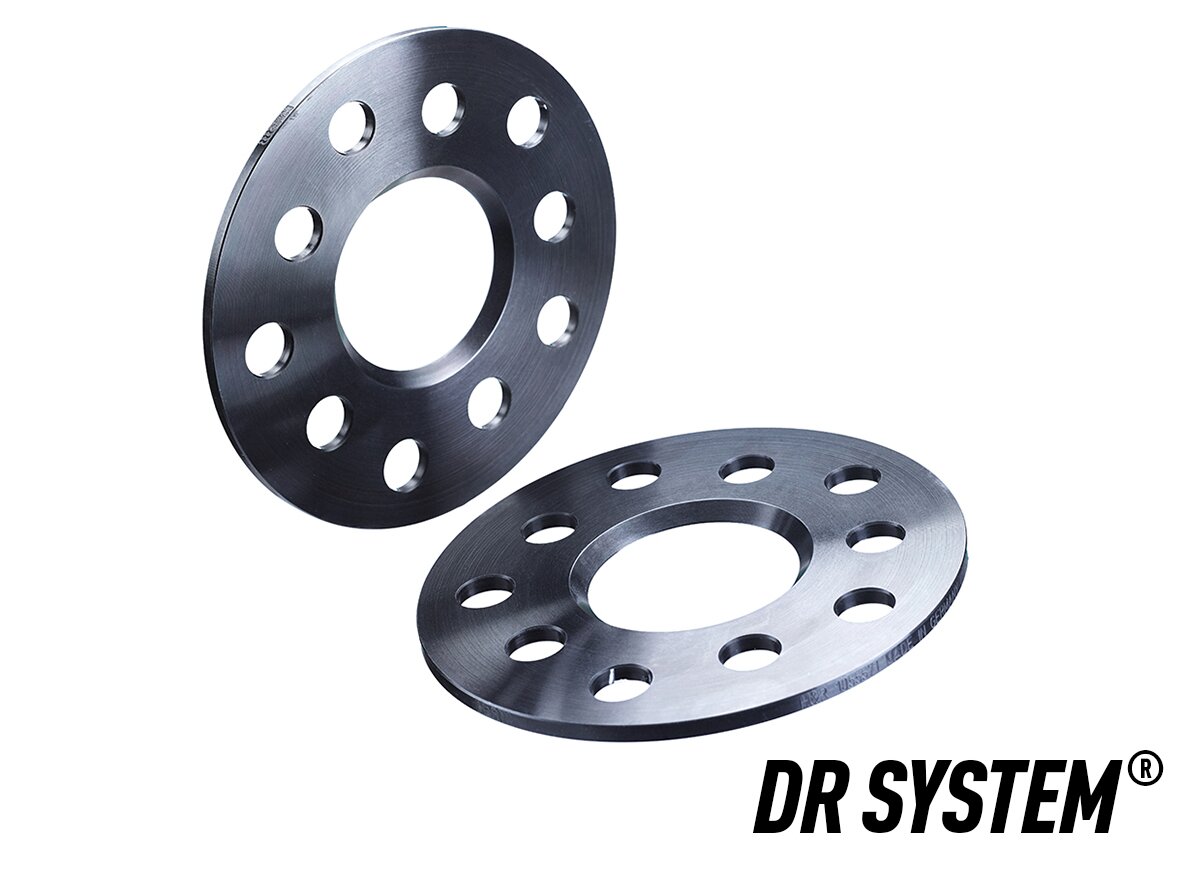

H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.

Features

  • Improved stance and wider track
  • Hub-centric, precision-machined
  • Application-specific fitment
  • TÜV-certified versions available

Specification

  • Thread Size: M14x1,5
  • Colour: black
  • Track widening per axle (mm): 6
  • Number of holes: 5
  • Bolt hole circle Ø (mm): 112
  • Registration: with TÜV® certificate

Please note additional information and vehicle-specific technical notes!
Only for the front axle.
DR = The wheel spacer should be fitted between the wheel and the axial hub using longer bolts not supplied - please order separately. When ordering the longer bolts please state which cone type you require (i.e. taper, round, loose round or flat) and the required extra length. All screws for the DR systems have to be orderded separately.
All DR-Systems require longer wheel-bolts. These have to be ordered separately. When ordering wheel-bolts please follow these guidelines: If possible name the type of the wheel when ordering. New bolts must be longer than the original ones by half of the total Track-widening. For example: With a 30 mm DR-kit you will require bolts that are 15 mm longer than the original bolts. The bold-head must be identical to the existing bolt: Taper 60° Round-head for M12/d24 mm, for M14/d28 mm Round-head for M12/d26 mm (e.g. OE VAG-wheels) Flat-head with disc for CITROEN/PEUGEOT-vehicles M12x1,25 Flat-head for PORSCHE-original-wheels M14x1,5 Safety Guidelines (No. of turns for wheel screws) M12x1,5 = 6,5 turns = approx. 10 mm of load bearing shaft length M12x1,25 = 8,0 turns = approx. 10 mm of load bearing shaft length M12x1,75 = 6,5 turns = approx. 12 mm of load bearing shaft length M14x1,5 = 7,5 turns = approx. 12 mm of load bearing shaft length 1/2"UNF = 8,0 turns = approx. 11 mm of load bearing shaft length Please ensure that the wheel screws do not damage any part of the brake system (ABS sensors etc.) Turn the wheel first by hand and check clearance on the inside (max. tolerance for some vehicles is only 2 mm (RA Mercedes).
These spacers without a double-sided centering are only useable for cars with a sufficient length of the centering to be able to center the wheels enough despite the spacer.
Note 18b: For the usage of these spacers certain specific technical requierements need to be fulfilled! Please check product information document TRAK_HINWEISE.pdf note 18b!

Product information (PDF) · Installation manual (PDF)

Vehicle Fitment

Make Model Chassis Models Years
Audi A4 B5 All models 1994–2001
Audi A8 D2 All models 1994–2002
Volkswagen Passat B5 All models 1996–2005
Audi A6 C5 All models 1997–2005
Audi A4 B6 All models 2000–2005
Audi A8 D3 All models 2002–2010
Volkswagen Phaeton 3D All models 2002–2016
Audi A3 8P All models 2003–2013
Volkswagen Golf MK5 All models 2003–2009
Volkswagen Touran 1T All models 2003–2015
Audi A4 B7 All models 2004–2009
Audi A6 C6 All models 2004–2011
Seat Altea 5P All models 2004–2015
Seat Toledo 5P All models 2004–2009
Skoda Octavia 1Z All models 2004–2013
Volkswagen Caddy 2K All models 2004–2015
Volkswagen Golf Plus 5M All models 2004–2013
Volkswagen Jetta MK5 All models 2004–2010
Seat Leon 1P All models 2005–2013
Volkswagen Passat B6 All models 2005–2011
Audi TT 8J All models 2006–2014
Volkswagen Tiguan 5N All models 2007–2018
Seat Exeo 3R All models 2008–2013
Skoda Superb 3T All models 2008–2015
Volkswagen CC 3CC All models 2008–2016
Volkswagen Golf MK6 All models 2008–2016
Volkswagen Scirocco 13 All models 2008–2017
Skoda Yeti 5L All models 2009–2017
Volkswagen Jetta MK6 All models 2010–2018
Volkswagen Passat B7 All models 2010–2020
Audi Q3 8U All models 2011–2018
Volkswagen Beetle 5C All models 2011–2019
Audi A3 8V All models 2012–2020
Seat Leon 5F All models 2012–2020
Skoda Octavia 5E All models 2012–2020
Audi TT 8S All models 2014–2026
Volkswagen Golf Sportsvan AM All models 2014–2020
Volkswagen Passat B8 All models 2014–2024
Skoda Superb 3V All models 2015–2024
Volkswagen Caddy SA All models 2015–2020
Seat Ateca KH7 All models 2016–2026
Skoda Karoq NU7 All models 2017–2026
Cupra Ateca KH7 All models 2018–2026
Audi A3 8Y All models 2019–2026
Seat Leon KL All models 2019–2026
Skoda Octavia NX All models 2019–2026
Cupra Leon KL All models 2020–2026
Volkswagen Golf MK7 All models 2012–2017
Volkswagen Golf MK7.5 All models 2017–2021
Volkswagen Golf MK8 All models 2019–2024
Volkswagen Golf MK8.5 All models 2024–2026
