H&R TRAK+® Wheel Spacers - B1655573

H&R SKU: B1655573
Regular price Price: $105.00
Sale ends in
Days
Hours
Minutes
Seconds
Accepted payment methods
  • American Express
  • Apple Pay
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Do you have questions about this product?

📞 Ask an Expert!

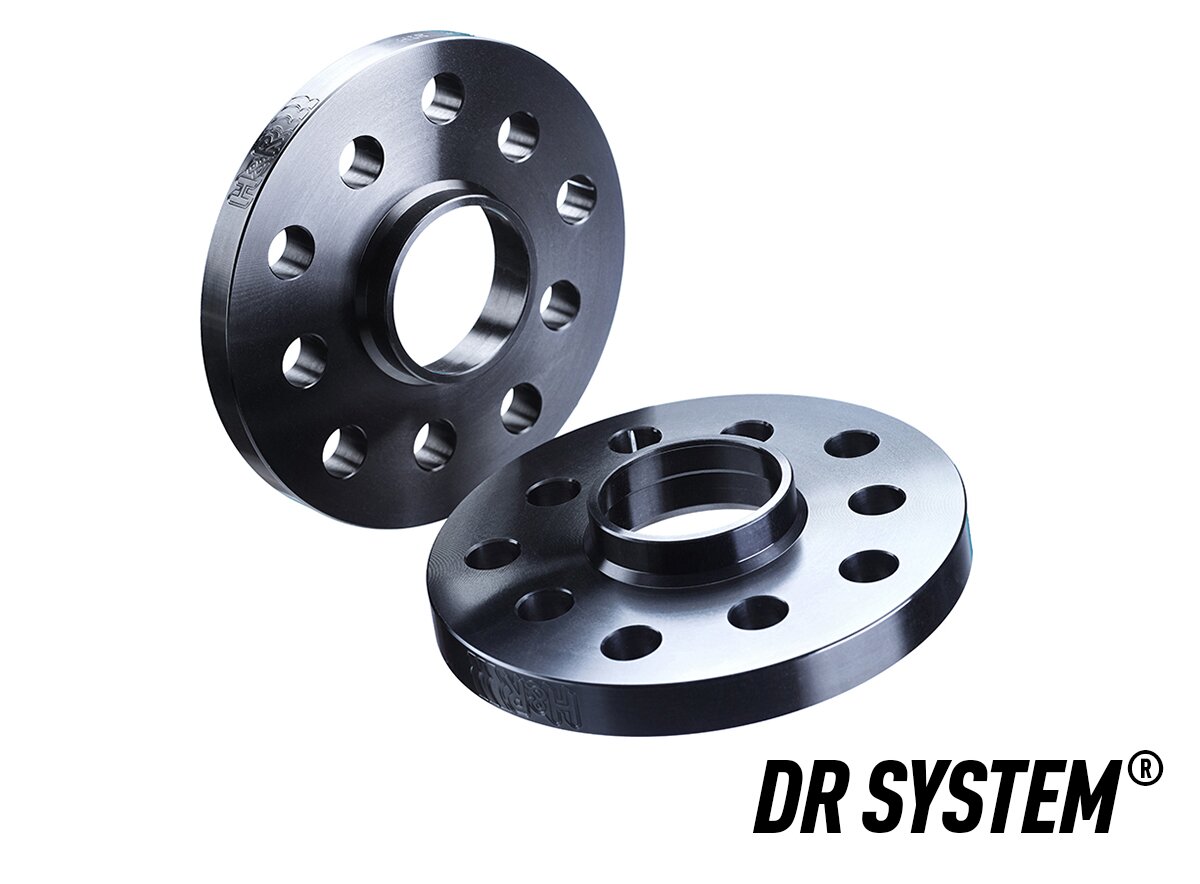

H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.

Features

  • Improved stance and wider track
  • Hub-centric, precision-machined
  • Application-specific fitment
  • TÜV-certified versions available

Specification

  • Thread Size: M14x1,5
  • Colour: black
  • Track widening per axle (mm): 16
  • Number of holes: 5
  • Bolt hole circle Ø (mm): 112
  • Registration: with TÜV® certificate

Please note additional information and vehicle-specific technical notes!
Not usable with steel-rims!
Only for the front axle.
DR = The wheel spacer should be fitted between the wheel and the axial hub using longer bolts not supplied - please order separately. When ordering the longer bolts please state which cone type you require (i.e. taper, round, loose round or flat) and the required extra length. All screws for the DR systems have to be orderded separately.
All DR-Systems require longer wheel-bolts. These have to be ordered separately. When ordering wheel-bolts please follow these guidelines: If possible name the type of the wheel when ordering. New bolts must be longer than the original ones by half of the total Track-widening. For example: With a 30 mm DR-kit you will require bolts that are 15 mm longer than the original bolts. The bold-head must be identical to the existing bolt: Taper 60° Round-head for M12/d24 mm, for M14/d28 mm Round-head for M12/d26 mm (e.g. OE VAG-wheels) Flat-head with disc for CITROEN/PEUGEOT-vehicles M12x1,25 Flat-head for PORSCHE-original-wheels M14x1,5 Safety Guidelines (No. of turns for wheel screws) M12x1,5 = 6,5 turns = approx. 10 mm of load bearing shaft length M12x1,25 = 8,0 turns = approx. 10 mm of load bearing shaft length M12x1,75 = 6,5 turns = approx. 12 mm of load bearing shaft length M14x1,5 = 7,5 turns = approx. 12 mm of load bearing shaft length 1/2"UNF = 8,0 turns = approx. 11 mm of load bearing shaft length Please ensure that the wheel screws do not damage any part of the brake system (ABS sensors etc.) Turn the wheel first by hand and check clearance on the inside (max. tolerance for some vehicles is only 2 mm (RA Mercedes).
Not for Leon X-Perience
Note 18b: For the usage of these spacers certain specific technical requierements need to be fulfilled! Please check product information document TRAK_HINWEISE.pdf note 18b!

Product information (PDF) · Installation manual (PDF)

Vehicle Fitment

Make Model Chassis Models Years
Volkswagen Passat B7 All models 2011–2020
Audi A3 8V All models 2012–2020
Seat Leon 5F All models 2012–2020
Skoda Octavia 5E All models 2012–2020
Audi TT 8S All models 2014–2026
Volkswagen Golf Sportsvan AM All models 2014–2020
Volkswagen Passat B8 All models 2014–2024
Skoda Superb 3V All models 2015–2024
Skoda Karoq NU7 All models 2017–2026
Audi A3 8Y All models 2019–2026
Seat Leon KL All models 2019–2026
Skoda Octavia NX All models 2019–2026
Cupra Formentor KM7 All models 2020–2026
Cupra Leon KL All models 2020–2026
Volkswagen Caddy SB All models 2020–2026
Ford Tourneo Connect MK3 All models 2022–2026
Volkswagen Golf MK7 All models 2012–2017
Volkswagen Golf MK7.5 All models 2017–2021
Volkswagen Golf MK8 All models 2019–2024
Volkswagen Golf MK8.5 All models 2024–2026
