H&R TRAK+® Wheel Spacers W. Ger. Cert. 15mm (30mm per axle), 5x120, 65mm bore, Silver for VW - 75650-15
Do you have questions about this product?
📞 Ask an Expert!H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.
Features
- Improved stance and wider track
- Hub-centric, precision-machined
- Application-specific fitment
- TÜV-certified versions available
Specification
- Thread Size: M14x1,5
- Colour: silver
- Thickness (mm): 15
- Track widening per axle (mm): 30
- Number of holes: 5
- Bolt hole circle Ø (mm): 120
- Registration: with General Operating Permit (ABE)
Please note additional information and vehicle-specific technical notes!
Not usable with steel-rims!
Note 31: Wheel spacers with ABE are only useable for the original wheels shown in the ABE which is enclosed in the delivery. For special wheel/tyre combinations an additional TÜV inspection is necessary. ABE are just valid in Germany. Included in the delivery of the ABE spacers is the entire fastening material.

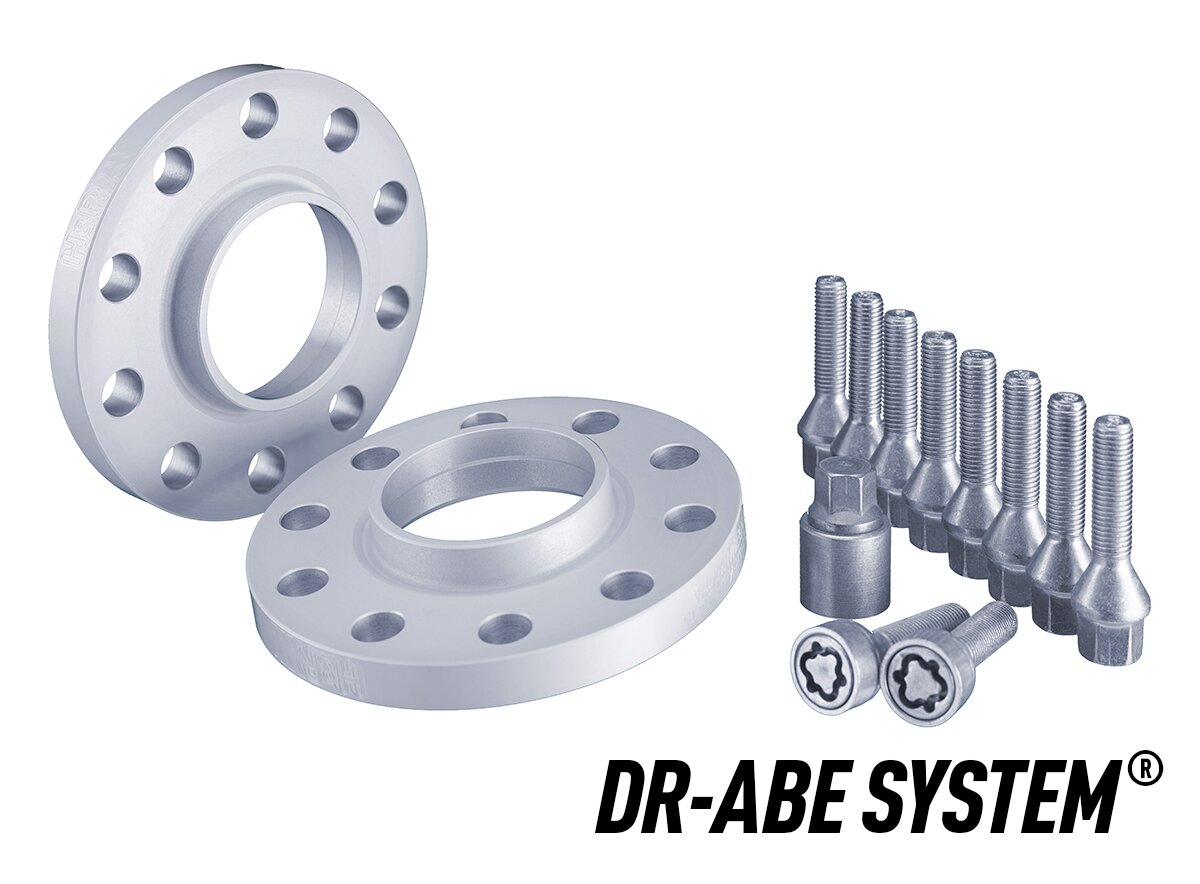

The set contains: 2 spacers, 10 longer wheel screws incl. 2 wheel lock screws.
System DR-ABE: The spacer is fitted between the wheel and the hub with longer wheel-screws.
Differentiation T6 and T6.1: T6 Typ 7HC Type approval number: e1*2001/116*0220*36-54 T6 Typ 7HMA Type approval number: e1*2001/116*0289*25-43 T6 Typ 7J0 Type approval number: e1*2007/46*0130*16-31 T6.1 Typ 7HC Type approval number: e1*2001/116*0220*55-… T6.1 Typ 7HMA Type approval number: e1*2001/116*0289*44-… T6.1 Typ 7J0 Type approval number: e1*2007/46*0130*32-…
Product information (PDF) · Installation manual (PDF)
Vehicle Fitment
| Make | Model | Chassis | Models | Years |
|---|---|---|---|---|
| Volkswagen | Touareg | 7L | All models | 2002–2010 |
| Volkswagen | Multivan | T5 | All models | 2003–2015 |
| Volkswagen | Transporter | T5 | All models | 2003–2015 |
| Volkswagen | California | T5 | All models | 2007–2015 |
| Volkswagen | Amarok | 2H | All models | 2010–2026 |
| Volkswagen | California | T6 | All models | 2015–2024 |
| Volkswagen | Multivan | T6 | All models | 2015–2024 |
| Volkswagen | Transporter | T6 | All models | 2015–2024 |
