H&R TRAK+® Wheel Spacers W. Ger. Cert. 20mm (40mm per axle), 5x112, 57.1mm bore, Black for Audi, VW, Seat & Skoda - B55571-20
Do you have questions about this product?
📞 Ask an Expert!H&R TRAK+ wheel spacers push the wheels outward to improve stance, track width and clearance. Precision-machined and hub-centric for a perfect, vibration-free fit. Please note the correct bolt/cone type and length — longer wheel bolts are required for DR-system spacers and are ordered separately.
Features
- Improved stance and wider track
- Hub-centric, precision-machined
- Application-specific fitment
- TÜV-certified versions available
Specification
- Thread Size: M14x1,5
- Colour: black
- Thickness (mm): 20
- Track widening per axle (mm): 40
- Number of holes: 5
- Bolt hole circle Ø (mm): 112
- Registration: with General Operating Permit (ABE)
Please note additional information and vehicle-specific technical notes!
Not usable with steel-rims!

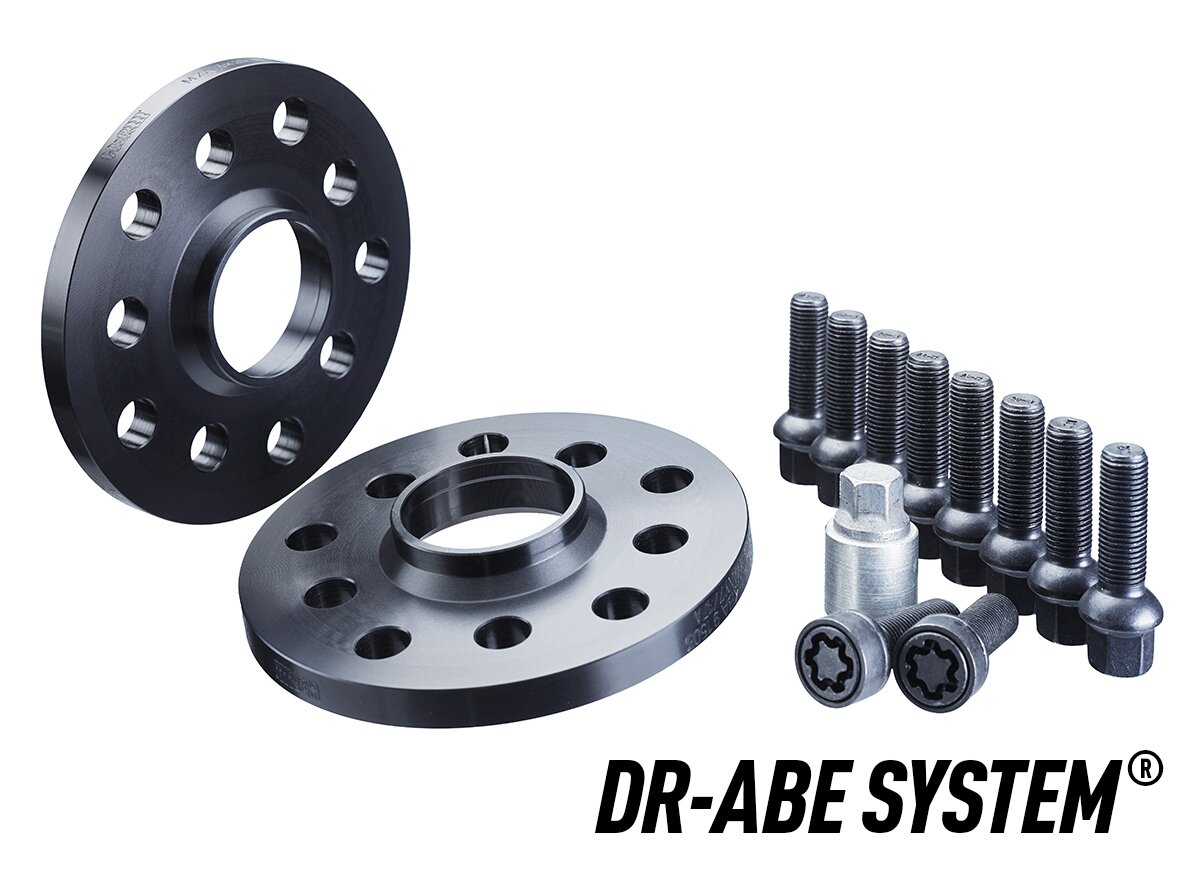

System DR-ABE: The spacer is fitted between the wheel and the hub with longer wheel-screws.
Note 31: Wheel spacers with ABE are only useable for the original wheels shown in the ABE which is enclosed in the delivery. For special wheel/tyre combinations an additional TÜV inspection is necessary. ABE are just valid in Germany. Included in the delivery of the ABE spacers is the entire fastening material.
The set contains: 2 spacers, 10 longer wheel screws incl. 2 wheel lock screws.
Product information (PDF) · Installation manual (PDF)
Vehicle Fitment
| Make | Model | Chassis | Models | Years |
|---|---|---|---|---|
| Audi | A4 | B5 | All models | 1994–2001 |
| Audi | A8 | D2 | All models | 1994–2002 |
| Audi | A6 | C5 | All models | 1997–2005 |
| Audi | A4 | B6 | All models | 2000–2005 |
| Audi | A8 | D3 | All models | 2002–2010 |
| Audi | A3 | 8P | All models | 2003–2013 |
| Audi | A6 | C6 | All models | 2004–2011 |
| Audi | A4 | B7 | All models | 2005–2009 |
| Audi | TT | 8J | All models | 2006–2014 |
| Volkswagen | Passat | B5 | All models | 1996–2005 |
| Volkswagen | Phaeton | 3D | All models | 2002–2016 |
| Volkswagen | Golf | MK5 | All models | 2003–2009 |
| Volkswagen | Touran | 1T | All models | 2003–2015 |
| Volkswagen | Caddy | 2K | All models | 2004–2015 |
| Volkswagen | Jetta | MK5 | All models | 2004–2010 |
| Volkswagen | Passat | B6 | All models | 2005–2011 |
| Volkswagen | Eos | 1F | All models | 2006–2015 |
| Volkswagen | Tiguan | 5N | All models | 2007–2018 |
| Volkswagen | Golf | MK6 | All models | 2008–2016 |
| Volkswagen | CC | 3CC | All models | 2008–2016 |
| Volkswagen | Scirocco | 13 | All models | 2008–2017 |
| Volkswagen | Jetta | MK6 | All models | 2010–2018 |
| Volkswagen | Passat | B7 | All models | 2010–2020 |
| Volkswagen | Beetle | 5C | All models | 2011–2019 |
| Volkswagen | Caddy | SA | All models | 2015–2020 |
| Seat | Altea | 5P | All models | 2004–2015 |
| Seat | Toledo | 5P | All models | 2004–2009 |
| Seat | Leon | 1P | All models | 2005–2013 |
| Seat | Exeo | 3R | All models | 2008–2013 |
| Skoda | Superb | 3U | All models | 2001–2008 |
| Skoda | Octavia | 1Z | All models | 2004–2013 |
| Skoda | Superb | 3T | All models | 2008–2015 |
| Skoda | Yeti | 5L | All models | 2009–2017 |
